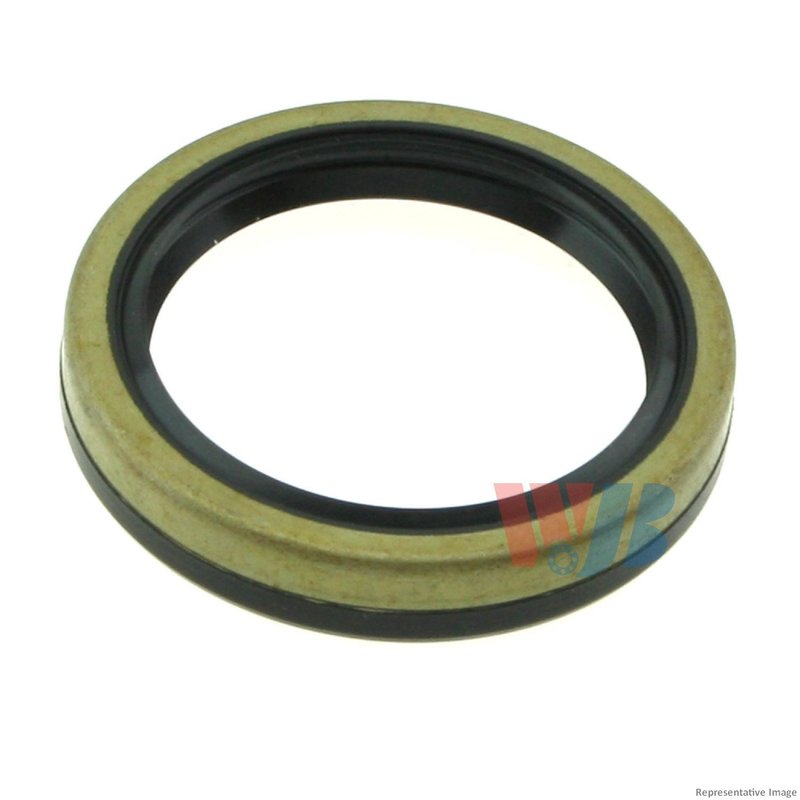

InMotion WS710334 Engine Camshaft Seal - Rear

Engine Seal for Rear Differential Applications

InMotion WS710334 is a precision-engineered seal built from polyacrylate material to maintain a tight barrier at the shaft and housing interface. With an inside diameter of 2.677 in., outside diameter of 3.394 in., and housing bore of 3.386 in., it is sized for rear differential applications that require controlled sealing against moisture and debris.

Compatible with select Chevrolet Tracker, Suzuki Sidekick, Suzuki Samurai, Geo Metro, and Pontiac Firefly rear applications, this seal supports dependable sealing performance in vehicles that see daily driving or off-road use. The InMotion WS710334 is a direct-fit service part for rear differential sealing needs on a wide range of compact trucks and utility vehicles.

Key Features

• Polyacrylate sealing material for durable resistance to contaminants
• Inside diameter: 2.677 in.
• Outside diameter: 3.394 in.
• Housing bore: 3.386 in.
• Thickness and width: 0.315 in.
• Designed for rear differential sealing applications
• Part number: WS710334

Detailed Description

This seal is engineered to create a secure sealing surface around the differential pinion area, helping retain lubricant while keeping out dirt and moisture. The polyacrylate construction is selected for sealing stability in drivetrain environments where heat, rotation, and contamination control matter. For service work on Suzuki Swift, Suzuki Vitara, Chevrolet Metro, Geo Tracker, and Pontiac Sunrunner rear differentials, WS710334 provides the dimensional accuracy needed for proper fitment.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Address

• Gear oil leakage at the rear differential seal area
• Contamination from road debris and moisture
• Wear caused by degraded or hardened sealing surfaces
• Service issues on rear differential pinion sealing points
• Maintenance needs on aging compact SUV and small car drivetrains

Installation Notes and Tips

Verify shaft diameter and housing bore before installation to confirm the seal dimensions match the differential housing. Inspect the pinion surface for scoring, corrosion, or wear that could affect sealing performance. Clean the bore thoroughly and install the seal squarely to avoid distortion. Confirm vehicle application by year, make, model, and rear position before service.

Quality Assurance

InMotion manufactures this seal with precision sizing and high-quality sealing material to support reliable drivetrain service. Part number WS710334 is specified for rear applications across confirmed fitments including 1985-1995 Suzuki Samurai, 1989-1998 Suzuki Sidekick, 1989-1997 Geo Tracker, and 1998-2002 Chevrolet Tracker.
