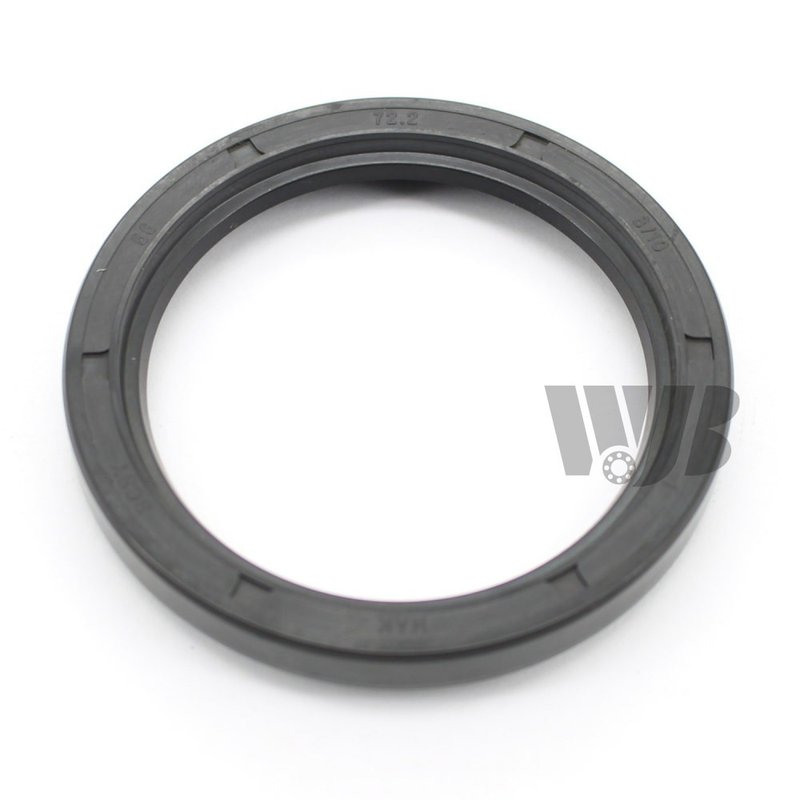

InMotion WS710393 Wheel Seal - Front Outer

Wheel Seal for Differential Pinion Service

The InMotion WS710393 wheel seal is built for differential pinion sealing applications where keeping contaminants out and lubricant in matters. With a nitrile sealing element and precision dimensions, it supports a secure barrier against moisture, dirt, and debris in front outer applications.

Compatible With 1989-2001 Suzuki Swift, front outer, and 1995-2002 Suzuki Esteem, front outer. The WS710393 is sized for a 56 x 72.2 x 8 mm sealing interface and is engineered for dependable sealing performance in driveline service.

Key Features

• Nitrile sealing material for resistance to common driveline fluids
• External markings: 56 x 72.2 x 8
• Inside diameter: 55.6 mm / 2.19 in
• Outside diameter: 72.4 mm / 2.85 in
• Housing bore: 72.2 mm / 2.835 in
• Shaft diameter: 56 mm / 2.205 in
• Seal case material: SAE 1070
• Spring material: SAE 1008
• Part number WS710393 for direct reference during service lookup

Detailed Description

InMotion WS710393 is a precision wheel seal used in differential pinion sealing applications to help maintain a clean, stable sealing surface. The nitrile construction is paired with a metal case and spring materials selected for dimensional stability and consistent contact pressure. This helps reduce the chance of lubricant leakage while limiting the entry of road grit and moisture into sensitive internal components.

For Suzuki Swift and Suzuki Esteem front outer service, WS710393 provides the dimensional profile needed for a proper seal fit. The 56 x 72.2 x 8 specification, along with the listed shaft and housing bore measurements, makes this seal a practical choice when replacing a worn or leaking differential pinion seal. Part number WS710393 may also be useful when verifying the correct seal during parts lookup or service ordering.

What This Seal Helps Address

• Gear oil seepage at the differential pinion area
• Contamination from dirt, water, and road debris
• Wear caused by an aging or hardened seal lip
• Loss of sealing integrity from heat and mileage
• Service issues on front outer Suzuki Swift and Suzuki Esteem applications

Installation Notes and Tips

Inspect the pinion shaft, housing bore, and sealing surface before installation. Clean the bore thoroughly and verify the dimensions against the existing component and service specifications. A damaged shaft surface or debris in the bore can shorten seal life, so confirm the mating surfaces are smooth and free of scoring before pressing the seal into place.

Use care to seat the seal evenly and avoid distorting the case during installation. Confirm the orientation matches the original part and check for leaks after reassembly and road testing.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and materials selected for driveline sealing service. The combination of nitrile, SAE 1070 seal case material, and SAE 1008 spring material supports consistent sealing performance in the specified applications.
