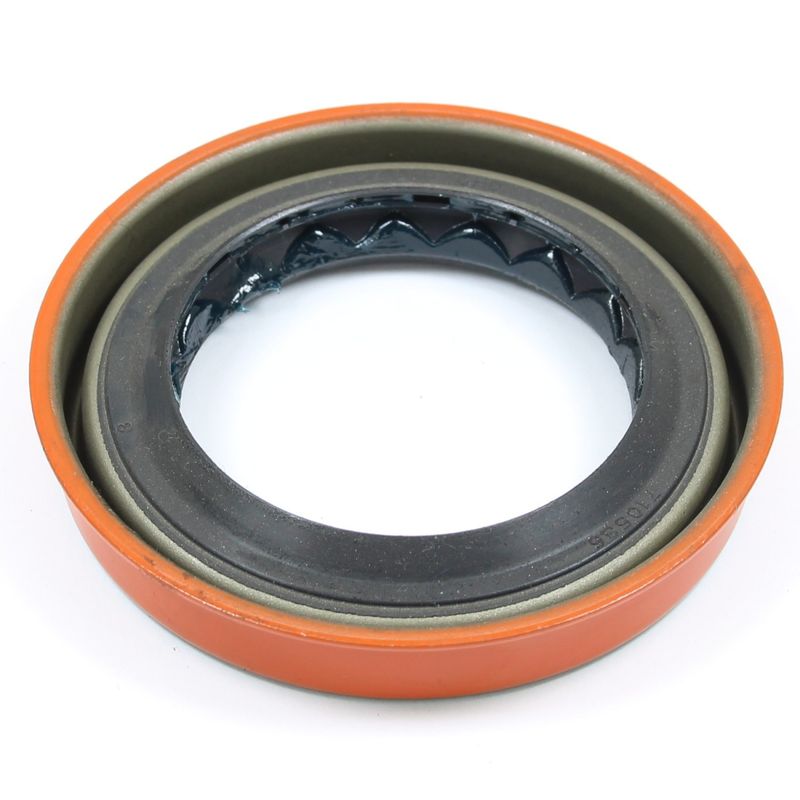

InMotion WS710536 Differential Pinion Seal - Front Outer

Front Outer Differential Pinion Seal for GM Trucks and SUVs

The InMotion WS710536 differential pinion seal is built for the front outer position and uses fluoro-elastomer material for dependable sealing performance. It helps keep contaminants out of the differential pinion area while maintaining a tight seal to reduce fluid loss.

Compatible With Cadillac Escalade, Chevrolet Silverado 1500, and GMC Sierra 1500 applications that use the specified ring gear or AAM axle configuration, this seal is a direct-fit service part for a wide range of GM driveline repairs. The WS710536 is sized with a 1.943 in inside diameter, 2.921 in outside diameter, and 0.453 in thickness.

Key Features

• Fluoro-elastomer construction for sealing durability
• Front outer differential pinion seal application
• Inside diameter: 1.943 in
• Outside diameter: 2.921 in
• Thickness: 0.453 in
• Shaft diameter: 1.943 in
• Housing bore: 2.913 in
• InMotion WS710536 part number for identification and ordering

Detailed Description

InMotion WS710536 is a differential pinion seal engineered to create a secure barrier at the front outer pinion location. The fluoro-elastomer sealing material is selected for resistance to contamination and fluid seepage, helping protect the internal differential components from debris and moisture. For drivers servicing Cadillac Escalade, Chevrolet Silverado 2500 HD, GMC Yukon, and related GM platforms, this seal supports proper driveline sealing where the pinion enters the differential housing.

This part cross-references common OE-style service applications for the same front outer differential pinion seal position. Use the part number WS710536 to verify the correct seal before installation.

What It Helps Address

• Differential gear oil leaks at the pinion area
• Contamination entering the front outer differential seal surface
• Moisture intrusion around the pinion opening
• Seal wear from age, heat, and driveline use
• Service issues on GM trucks and SUVs with 8.25 in ring gear or AAM axle configurations

Installation Notes and Tips

Confirm the axle configuration, ring gear size, and seal dimensions before installation. Clean the housing bore and pinion shaft sealing surface thoroughly, and inspect for scoring or wear that could affect sealing performance. Proper alignment during installation is important to avoid damaging the fluoro-elastomer lip and to help the seal seat evenly in the housing.

Fits 2013-2018 Cadillac ATS, Front Outer; Fits 2014-2018 Cadillac CTS, Front Outer; Fits 2002-2018 Cadillac Escalade, Front Outer; Fits 1999-2000 Cadillac Escalade, Front Outer; Fits 2003-2018 Cadillac Escalade ESV, Front Outer; Fits 1999-2018 Chevrolet Silverado 1500, Front Outer; Fits 2001-2018 Chevrolet Silverado 2500 HD, Front Outer; Fits 2007-2018 Chevrolet Silverado 3500 HD, Front Outer; Fits 1998-2018 Chevrolet Tahoe, Front Outer; Fits 1999-2018 GMC Sierra 1500, Front Outer; Fits 2001-2018 GMC Sierra 2500 HD, Front Outer; Fits 2007-2018 GMC Sierra 3500 HD, Front Outer; Fits 1998-2018 GMC Yukon, Front Outer; Fits 2015-2018 GMC Yukon XL, Front Outer; Fits 2000-2014 Chevrolet Suburban 1500, Front Outer; Fits 2013-2014 GMC Yukon XL 1500, Front Outer; Fits 2009-2010 GMC Yukon XL 1500, Front Outer; Fits 2002-2013 Cadillac Escalade EXT, Front Outer; Fits 2007-2013 Chevrolet Avalanche, Front Outer; Fits 2000-2013 Chevrolet Suburban 2500, Front Outer; Fits 2011-2012 GMC Yukon XL 1500, Front Outer; Fits 2000-2008 GMC Yukon XL 1500, Front Outer; Fits 2003-2009 Hummer H2, Front Outer; Fits 2007 Chevrolet Silverado 1500 Classic, Front Outer; Fits 2007 Chevrolet Silverado 1500 HD Classic, Front Outer; Fits 2007 Chevrolet Silverado 2500 HD Classic, Front Outer; Fits 2007 Chevrolet Silverado 3500 Classic, Front Outer; Fits 2007 GMC Sierra 1500 Classic, Front Outer; Fits 2007 GMC Sierra 1500 HD Classic, Front Outer; Fits 2007 GMC Sierra 2500 HD Classic, Front Outer; Fits 2007 GMC Sierra 3500 Classic, Front Outer; Fits 2002-2006 Chevrolet Avalanche 1500, Front Outer; Fits 2002-2006 Chevrolet Avalanche 2500, Front Outer; Fits 2005-2006 Chevrolet Silverado 1500 HD, Front Outer; Fits 2001-2003 Chevrolet Silverado 1500 HD, Front Outer; Fits 2001-2006 Chevrolet Silverado 3500, Front Outer; Fits 2005-2006 GMC Sierra 1500 HD, Front Outer; Fits 2001-2003 GMC Sierra 1500 HD, Front Outer; Fits 2001-2006 GMC Sierra 3500, Front Outer; Fits 2000-2006 GMC Yukon XL 2500, Front Outer; Fits 1999-2004 Chevrolet Silverado 2500, Front Outer; Fits 1999-2004 GMC Sierra 2500, Front Outer; Fits 1998-2000 Chevrolet K2500, Front Outer; Fits 1998-2000 Chevrolet K3500, Front Outer; Fits 1998-2000 GMC K2500, Front Outer; Fits 1998-2000 GMC K3500, Front Outer; Fits 1998-1999 Chevrolet K1500, Front Outer; Fits 1998-1999 Chevrolet K1500 Suburban, Front Outer; Fits 1999 Chevrolet K2500 Suburban, Front Outer; Fits 1998-1999 GMC K1500, Front Outer; Fits 1998-1999 GMC K1500 Suburban, Front Outer; Fits 1999 GMC K2500 Suburban, Front Outer; Fits 1998 Chevrolet K2500 Suburban, Front Outer; Fits 1998 GMC K2500 Suburban, Front Outer; Fits 1997 Chevrolet K1500, Front Outer; Fits 1997 Chevrolet K1500 Suburban, Front Outer; Fits 1997 Chevrolet K2500, Front Outer; Fits 1997 Chevrolet K2500 Suburban, Front Outer; Fits 1997 Chevrolet K3500, Front Outer; Fits 1997 Chevrolet Tahoe, Front Outer; Fits 1997 GMC K1500, Front Outer; Fits 1997 GMC K1500 Suburban, Front Outer; Fits 1997 GMC K2500, Front Outer; Fits 1997 GMC K2500 Suburban, Front Outer; Fits 1997 GMC K3500, Front Outer; Fits 1997 GMC Yukon, Front Outer.

Quality Assurance

Built by InMotion with precision-focused dimensions and fluoro-elastomer sealing material, WS710536 is specified for the listed GM front outer differential applications. Verify fitment against the axle notes, ring gear size, and housing measurements before service.
