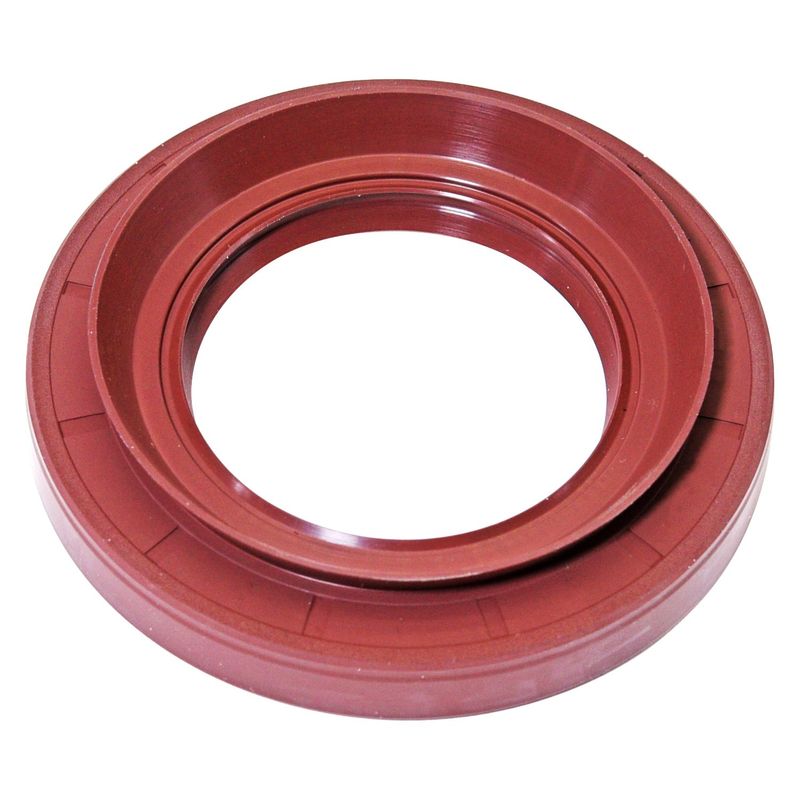

InMotion WS710595 Drive Axle Shaft Seal - Front Left or Front Right

Front Axle Shaft Seal for Toyota and Lexus

InMotion WS710595 is a drive axle shaft seal built for front right applications on select Toyota and Lexus vehicles with Toyota axle setups. It uses fluoro-elastomer material to help maintain a secure seal at the differential pinion area, where contamination and fluid retention are critical.

Use this seal when servicing a leaking front axle shaft or replacing a worn differential pinion seal on Toyota 4Runner, Tacoma, Tundra, Sequoia, Land Cruiser, FJ Cruiser, and Lexus GX/LX models.

Key Features

• Fluoro-elastomer construction for sealing performance in driveline service
• Inside diameter: 1.85 in.
• Outside diameter: 3.161 in.
• Housing bore: 3.154 in.
• Thickness and width: 0.394 in.
• Fits front right applications with Toyota axle configurations
• Part number WS710595 for catalog and service matching

Detailed Description

This InMotion drive axle shaft seal is engineered to create a tight barrier at the differential pinion area, helping keep moisture and debris out while retaining lubricant inside the assembly. The fluoro-elastomer sealing material is selected for driveline environments where heat, fluid exposure, and contamination resistance matter. With precise dimensions including a 1.85-inch shaft diameter and 3.154-inch housing bore, WS710595 is built for accurate service replacement on supported Toyota and Lexus front axle applications. The part number WS710595 is useful when cross-checking service records or ordering by reference.

Compatible With 1995-2019 Toyota 4Runner, front right; 2003-2011 Toyota Land Cruiser, front right; 2013-2019 Toyota Land Cruiser, front right; 2001-2019 Toyota Sequoia, front right; 1995-2019 Toyota Tacoma, front right; 2000-2019 Toyota Tundra, front right; 2010-2018 Lexus GX460, front right; 2013-2016 Lexus LX570, front right; 2008-2011 Lexus LX570, front right; 2007-2014 Toyota FJ Cruiser, front right; 2003-2009 Lexus GX470, front right; 2003-2007 Lexus LX470, front left, all with Toyota axle.

Common Problems This Seal Can Address

• Front differential fluid seepage at the axle shaft area
• Contamination entering the differential pinion seal area
• Seal wear from age, heat, or driveline service
• Loss of lubricant caused by a damaged sealing lip
• Noise or driveline concerns related to low differential fluid level

Installation Notes and Tips

Inspect the axle shaft, housing bore, and sealing surface before installation. Clean the bore thoroughly and verify the replacement seal matches the shaft diameter and housing bore dimensions listed for WS710595. For best results, install on the correct front right or front left application shown in the fitment data and confirm the vehicle uses a Toyota axle configuration.

Quality Assurance

InMotion manufactures this seal with precision-focused dimensions and fluoro-elastomer material selection for driveline sealing service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
