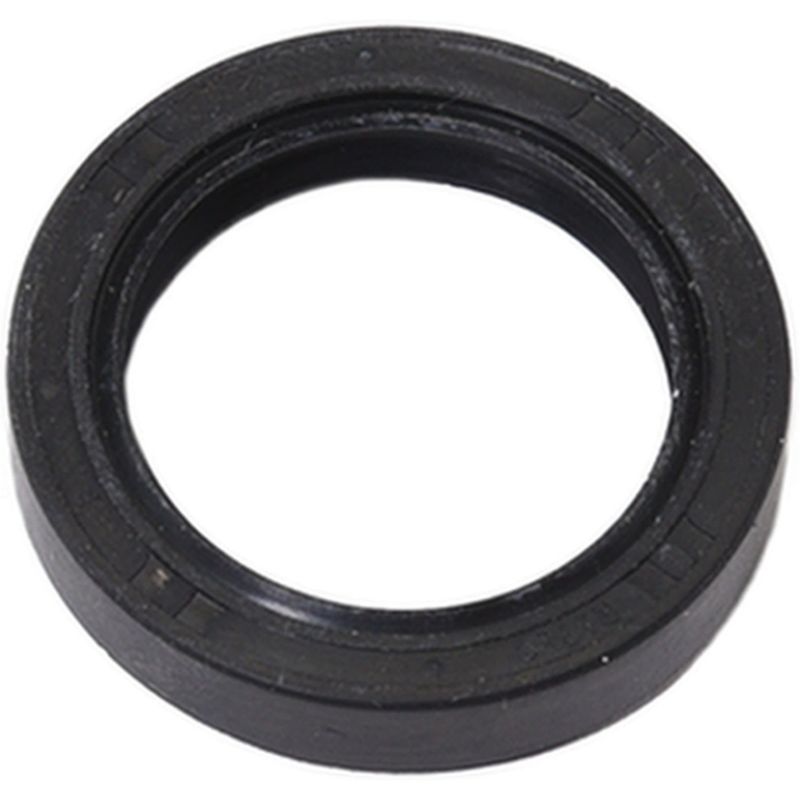

InMotion WS710597 Transfer Case Shift Shaft Seal

Transfer Case Shift Shaft Seal for Select Jeep, Dodge, and GM Applications

Restore sealing performance at the transfer case shift shaft with the InMotion WS710597. This seal is built from polyacrylate material and sized for a 0.75 in inside diameter, 1.008 in outside diameter, and 0.225 in thickness to help maintain a tight barrier at the shaft interface.

Compatible with a wide range of Jeep Wrangler, Jeep Cherokee, Dodge Ram 1500, and Chevrolet Silverado transfer case applications, the WS710597 is a direct-fit sealing component for vehicles using New Process transfer case designs.

• Polyacrylate sealing material for durable fluid resistance
• 0.75 in inside diameter and 1.008 in outside diameter
• 0.225 in width/thickness for proper shaft sealing depth
• Designed for transfer case shift shaft sealing service
• Compatible with many Jeep, Dodge, Chevrolet, GMC, Cadillac, and Isuzu applications
• Part number WS710597 for accurate ordering and lookup

Detailed Product Overview

The InMotion WS710597 transfer case shift shaft seal is engineered to help maintain a secure seal where the shift shaft passes through the transfer case housing. Its polyacrylate construction is selected for sealing performance in drivetrain environments where exposure to moisture, road debris, and fluid contamination can affect internal components. With a 0.75 in shaft diameter and 1 in housing bore specification, this seal is sized for precise fitment in supported applications.

This part is listed for numerous 1986-2019 vehicles, including Jeep Wrangler, Jeep TJ, Jeep Liberty, Dodge Dakota, Dodge Ram 1500, Chevrolet Silverado, GMC Sierra, and related transfer case configurations. If you are servicing a Jeep Wrangler transfer case or replacing a worn seal on a Chevrolet Silverado 1500 with the correct New Process unit, WS710597 provides the dimensional match needed for the repair.

Common Problems This Seal Can Address

• Transfer case fluid seepage around the shift shaft
• Contamination entering the transfer case through a worn seal
• Moisture intrusion at the shaft opening
• Seal wear from age, heat, and drivetrain movement
• Loss of sealing integrity during transfer case service

Installation Notes and Tips

Verify transfer case model and shaft dimensions before installation. Clean the bore and shaft area thoroughly, inspect for scoring or corrosion, and replace the seal only after confirming the housing surface is smooth and free of damage. Proper alignment during installation helps prevent distortion of the sealing lip.

For fitment verification, confirm the vehicle’s transfer case type, especially on applications such as 2003-2019 Jeep Wrangler, 2011-2017 Ram 1500 with New Process 243D transfer case, and 2006-2007 Chevrolet Silverado 1500 with the correct transfer case designation.

Quality Assurance

InMotion manufactures this seal with precision-focused materials and dimensions to support reliable drivetrain sealing performance. Part number WS710597 is specified for direct identification and fitment matching across supported applications.
