InMotion WS710626 Wheel Seal - Front or Front InnerOE Quality 60-Day Returns
Part #: WS710626

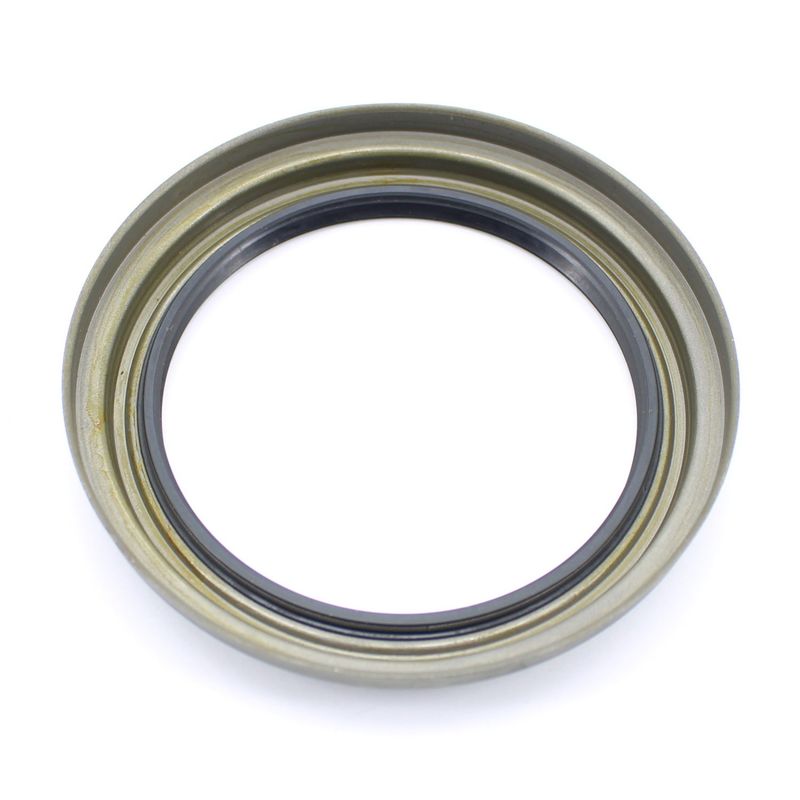

InMotion WS710626 Wheel Seal - Front or Front Inner

Front and Front Inner
55 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$18.23Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Lexus and Toyota, Land Cruiser, LX570, LX600, Sequoia, and Tundra
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Wheel Seal options

Front Inner Differential Pinion Seal for Toyota and Lexus

The InMotion WS710626 is a precision-engineered wheel seal built to help protect sensitive differential pinion components from moisture, dirt, and road debris. Its polyacrylate construction supports a secure sealing surface for front inner applications on select Toyota Tundra, Sequoia, Land Cruiser, and Lexus LX models.

Compatible With 2007-2023 Toyota Tundra, front inner, 2008-2022 Toyota Sequoia, front inner, 2008-2019 Toyota Land Cruiser, front inner, 2008-2023 Lexus LX570, front inner, and 2022 Lexus LX600, front.

Key Features

  • Part number WS710626
  • Polyacrylate seal material for durable sealing performance
  • Inside diameter: 3.268 in.
  • Outside diameter: 3.945 in.
  • Width: 0.315 in.
  • Shaft diameter: 3.268 in.
  • Housing bore: 3.937 in.
  • Built for front and front inner driveline sealing applications

Detailed Description

InMotion WS710626 is designed for differential pinion sealing where a tight barrier is needed to help keep contaminants out and retain lubricant inside the assembly. The measured dimensions support accurate fitment on the specified Toyota and Lexus platforms, including Toyota Tundra, Toyota Sequoia, Toyota Land Cruiser, Lexus LX570, and Lexus LX600 applications. If you are replacing a leaking or worn front inner seal, WS710626 provides a direct-fit sealing solution for the listed vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Gear oil seepage at the differential pinion area
  • Contamination from water, dust, and road debris
  • Seal wear that can lead to lubricant loss
  • Noise or driveline concerns related to low fluid levels
  • Maintenance needs on front inner differential sealing points

Installation Notes and Tips

Confirm shaft diameter and housing bore measurements before installation. Inspect the pinion surface, seal bore, and surrounding components for wear or damage before pressing in the new seal. Clean the sealing area thoroughly and verify correct orientation during installation to support proper sealing on the front inner differential assembly.

Quality Assurance

InMotion manufactures this seal with precision-focused dimensions and high-quality materials to support reliable sealing performance in driveline and axle service.

BrandInMotion
Part NumberWS710626
MaterialPolyacrylate
Inside Diameter3.2679999999999998
Width0.315
Outside Diameter3.9449999999999998
Shaft Diameter3.2679999999999998
Housing Bore3.9369999999999998

This part fits 55 vehicles. Search below:

YearMakeModelSubmodelDrive TypePositionNotes
2023ToyotaTundraFront
2022LexusLX600Front
2022ToyotaSequoiaFront Inner
2022ToyotaTundraSR54WDFront
2021LexusLX570Front Inner
2021ToyotaSequoiaFront Inner
2021ToyotaTundra1794 Edition4WDFront Inner
2020LexusLX570Front Inner
2020ToyotaSequoia4WDFront Inner
2020ToyotaTundra1794 Edition4WDFront Inner
2019ToyotaLand CruiserFront Inner
2019ToyotaSequoia4WDFront Inner
2019ToyotaTundra4WDFront Inner
2018ToyotaLand CruiserFront Inner
2018ToyotaSequoia4WDFront Inner
2018ToyotaTundra4WDFront Inner
2017LexusLX570Front Inner
2017ToyotaLand CruiserFront Inner
2017ToyotaSequoiaFront Inner
2017ToyotaTundraFront Inner
2016LexusLX570Front Inner
2016ToyotaLand CruiserFront Inner
2016ToyotaSequoiaFront Inner
2016ToyotaTundraFront Inner
2015LexusLX570Front Inner
2015ToyotaLand CruiserFront Inner
2015ToyotaSequoiaFront Inner
2015ToyotaTundraFront Inner
2014LexusLX570Front Inner
2014ToyotaLand CruiserFront Inner
2014ToyotaSequoiaFront Inner
2014ToyotaTundraFront Inner
2013LexusLX570Front Inner
2013ToyotaLand CruiserFront Inner
2013ToyotaSequoiaFront Inner
2013ToyotaTundraFront Inner
2012ToyotaSequoiaFront Inner
2012ToyotaTundraFront Inner
2011LexusLX570Front Inner
2011ToyotaLand CruiserFront Inner
2011ToyotaSequoiaFront Inner
2011ToyotaTundraFront Inner
2010LexusLX570Front Inner
2010ToyotaLand CruiserFront Inner
2010ToyotaSequoiaFront Inner
2010ToyotaTundraFront Inner
2009LexusLX570Front Inner
2009ToyotaLand CruiserFront Inner
2009ToyotaSequoiaFront Inner
2009ToyotaTundraFront Inner
2008LexusLX570Front Inner
2008ToyotaLand CruiserFront Inner
2008ToyotaSequoiaFront Inner
2008ToyotaTundraFront Inner
2007ToyotaTundraFront Inner

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
