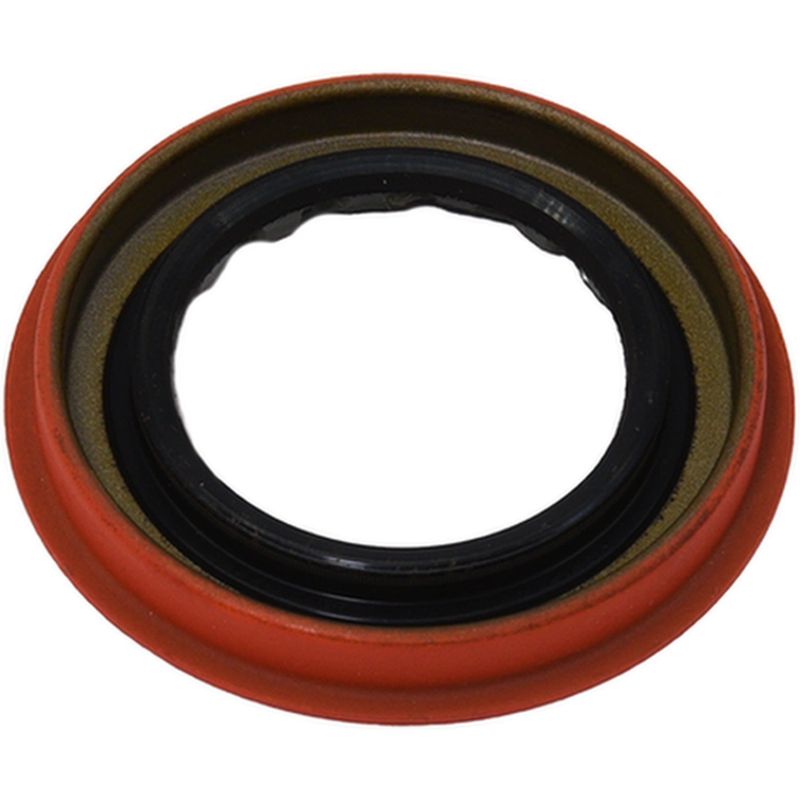

InMotion WS710628 Automatic Transmission Torque Converter Seal

Automatic transmission seal overview

InMotion WS710628 is an automatic transmission torque converter seal built for Chrysler 62TE applications and related fitments. It uses a polyacrylate sealing material and precise dimensions to help maintain a secure seal at the shaft and housing interface.

Compatible With Chrysler, Dodge, Ram, and Volkswagen applications listed below, this seal is a direct service part for vehicles that need leak control around the transmission sealing area. The WS710628 part number is useful when matching the correct seal for a 62TE-equipped drivetrain.

Key features

• Polyacrylate construction for sealing performance in transmission service.
• 1.5 in. inside diameter and shaft diameter for accurate fit.
• 2.253 in. outside diameter and 2.247 in. housing bore for controlled seating.
• Designed to help block contaminants and retain transmission fluid.
• Fits a wide range of Chrysler 62TE transmission applications.

Fitment details

Fits 2016-2019 Dodge Grand Caravan, N/A.

Fits 2016-2019 Dodge Journey, N/A.

Fits 2014-2019 Ram ProMaster 1500, N/A.

Fits 2014-2019 Ram ProMaster 2500, N/A.

Fits 2014-2019 Ram ProMaster 3500, N/A.

Fits 2016 Chrysler Town & Country, N/A.

Fits 2008-2015 Chrysler Town & Country, N/A, with Chrysler 62TE Transmission.

Fits 2008-2015 Dodge Grand Caravan, N/A, with Chrysler 62TE Transmission.

Fits 2009-2015 Dodge Journey, N/A, with Chrysler 62TE Transmission.

Fits 2012-2015 Ram C/V, N/A.

Fits 2011-2014 Chrysler 200, N/A, with Chrysler 62TE Transmission.

Fits 2008-2014 Dodge Avenger, N/A, with Chrysler 62TE Transmission.

Fits 2009-2014 Volkswagen Routan, N/A, with Chrysler 62TE Transmission.

Fits 2007-2010 Chrysler Sebring, N/A, with Chrysler 62TE Transmission.

Fits 2007-2008 Chrysler Pacifica, N/A, with Chrysler 62TE Transmission.

What this seal helps address

• Transmission fluid seepage at the sealing surface.
• Contamination entering the sealed area.
• Wear-related sealing loss from age or heat exposure.
• Fitment issues when servicing a 62TE-equipped transmission.

Installation notes and quality

Verify transmission type and seal dimensions before installation, especially on Chrysler 62TE applications. Clean the sealing bore and shaft surface thoroughly so the new seal seats evenly and forms a consistent barrier.

InMotion focuses on precision-fit sealing components for drivetrain service. WS710628 is engineered to provide a reliable seal for the listed applications and to support long-term transmission protection.
