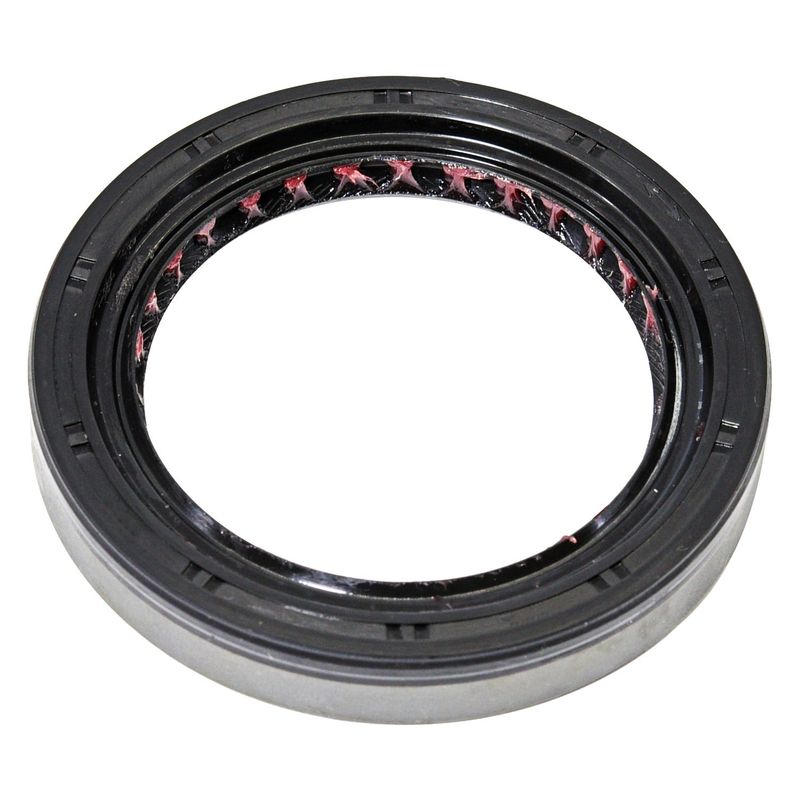

InMotion WS710684 Transfer Case Input Shaft Seal

Transfer Case Input Shaft Seal Overview

The InMotion WS710684 transfer case input shaft seal is built for applications that need a precise sealing barrier against fluid loss and contamination. It uses fluoro-elastomer sealing material and dimensional specs that support a secure fit in the transfer case housing.

Compatible With select Dodge, Jeep, and Chrysler transfer case applications, this seal is a direct service part for vehicles using the specified Magna and New Process transfer cases. The WS710684 part number is the reference to verify before ordering.

Key Features

• Fluoro-elastomer sealing material for resistance to heat and fluid exposure.
• Precision dimensions: 2.283 in. inside diameter, 3.209 in. outside diameter, and 0.492 in. thickness.
• Housing bore measurement of 3.201 in. for application matching.
• Designed to maintain a tight seal at the transfer case input shaft.
• InMotion WS710684 identification for catalog and service lookup.

Detailed Application Notes

Fits 2011-2019 Dodge Durango, N/A, with Magna 3023 Transfer Case. Fits 2019 Jeep Grand Cherokee, N/A, with Magna 3023 Transfer Case. Fits 2008-2012 Jeep Liberty, N/A, with Magna 3022 Transfer Case. Fits 2011 Dodge Nitro, N/A, with New Process 140 Transfer Case. Fits 2007 Dodge Nitro, N/A, with New Process 140 Transfer Case. Fits 2008-2010 Dodge Nitro, N/A. Fits 2007-2010 Jeep Commander, N/A, with New Process 245J Transfer Case. Fits 2005-2010 Jeep Grand Cherokee, N/A, with New Process 140 Transfer Case. Fits 2008-2009 Chrysler Aspen, N/A, with New Process 140 Transfer Case. Fits 2006 Jeep Commander, N/A, with New Process 140 Transfer Case.

Common Repair Uses

• Stops transfer case fluid seepage at the input shaft.
• Helps keep dirt and moisture out of the transfer case.
• Addresses seal wear that can lead to driveline fluid loss.
• Supports repair of transfer case service issues tied to contamination.

Installation Notes and Quality

Verify transfer case type and part number WS710684 before installation. Confirm the housing bore and shaft dimensions against the original seal to ensure proper seating and sealing performance. Clean the sealing surface thoroughly before assembly.

InMotion manufactures this seal with precision-focused construction and durable sealing material for dependable service in transfer case applications.
