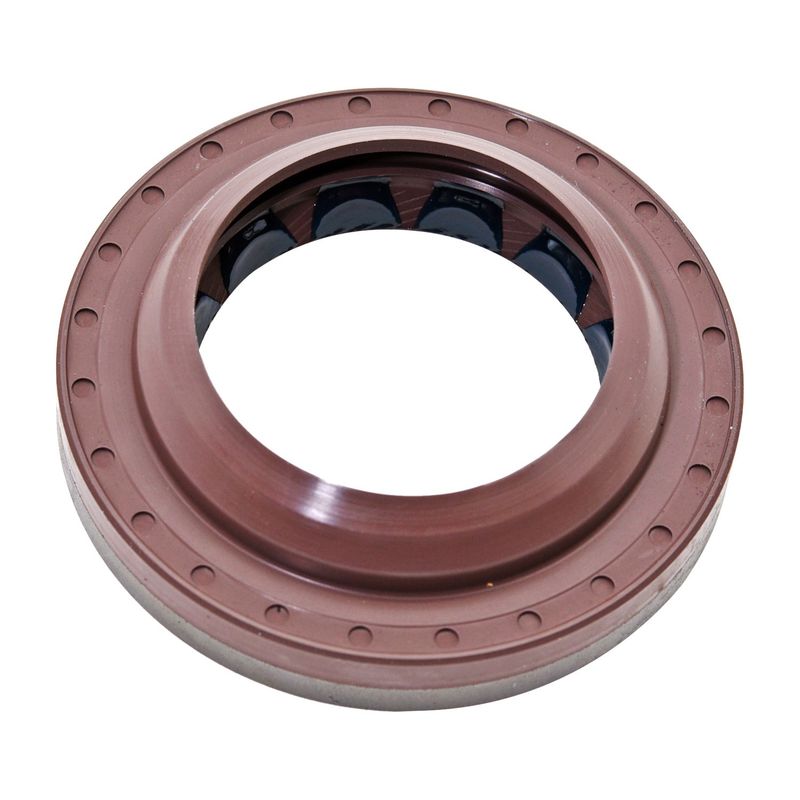

InMotion WS710691 Transfer Case Output Shaft Seal - Rear

Overview

The InMotion WS710691 transfer case output shaft seal is built for Jeep Grand Cherokee applications that require a precise sealing fit at the rear transfer case output. It uses fluoro-elastomer sealing material to help keep contaminants out and fluid in, supporting dependable operation in demanding driving conditions.

Compatible With Jeep Grand Cherokee rear transfer case applications, this seal is specified for 1999-2003 models with the New Process 247J transfer case and 2004 models with the New Process 147J transfer case. The WS710691 part number is the reference to verify before ordering.

Key Features

• Fluoro-elastomer sealing material for resistance to heat and fluid exposure.
• Precision dimensions for a controlled fit at the shaft and housing bore.
• Designed to maintain a secure barrier against moisture and debris.
• Transfer case sealing component for rear output shaft service.

Detailed Description

InMotion WS710691 is a transfer case output shaft seal engineered around exact dimensional requirements, including a 1.504-inch inside diameter, 2.3809999999999998-inch outside diameter, and 2.375 housing bore. Those measurements matter when replacing a worn seal on a Jeep Grand Cherokee transfer case, because the correct fit helps reduce leakage and protects internal components from contamination. The fluoro-elastomer sealing material adds durability for drivetrain service where heat, fluid contact, and road debris are common.

This part cross-references no listed interchange numbers in the provided data. Use WS710691 when matching the transfer case application and verify the transfer case type before installation.

What It Helps Address

• Transfer case fluid seepage at the output shaft.
• Contamination from dirt, moisture, and road debris.
• Wear-related sealing loss from an aged or hardened seal.
• Service issues tied to incorrect seal dimensions.

Installation Notes and Tips

Confirm the transfer case identification before installation: 1999-2003 Jeep Grand Cherokee with New Process 247J, or 2004 Jeep Grand Cherokee with New Process 147J. Inspect the shaft surface and housing bore for scoring, corrosion, or debris before fitting the new seal. Proper seating is important for sealing performance, so verify alignment and dimensions against the removed part and the application requirements.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials to support reliable drivetrain sealing. The WS710691 part number should be matched to the vehicle and transfer case specification for correct application.
