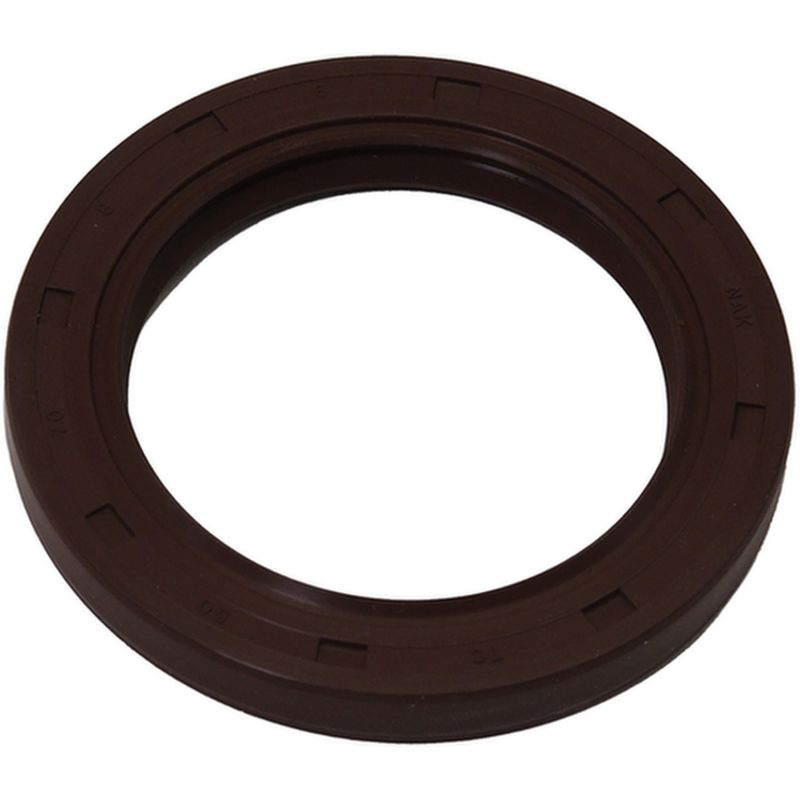

InMotion WS710746 Transfer Case Output Shaft Seal - Front

Transfer Case Output Shaft Seal Overview

This InMotion transfer case output shaft seal, part number WS710746, is built for BMW and Maserati applications that use the listed transfer case configurations. It provides a tight sealing barrier to help keep contaminants out and fluid in, supporting reliable transfer case operation.

Key Features

• Fluoro-elastomer sealing material for resistance to heat and fluid exposure.
• Precision dimensions: 1.969 in. inside diameter, 2.764 in. outside diameter, and 0.315 in. thickness.
• Designed for transfer case sealing where shaft and housing dimensions must match closely.
• Fits front-position applications across a wide range of BMW xDrive and select Maserati models.

Fitment Details

• Fits 2019 BMW 230i xDrive, Front, with Magna ATC35L Transfer Case.
• Fits 2017-2019 BMW 330i xDrive, Front, with Magna ATC35L Transfer Case.
• Fits 2014-2019 Maserati Quattroporte, Front, with Magna ATC Transfer Case.
• Fits 2004-2012 BMW X3, Front.
• Fits 2000-2005 BMW X5, Front, with Magna ATC500 Transfer Case.

What This Seal Helps Address

• Transfer case fluid seepage at the output shaft area.
• Contamination from moisture and road debris entering the sealing surface.
• Wear-related sealing loss caused by age, heat, and mileage.
• Service needs on BMW xDrive and Maserati transfer case assemblies.

Installation Notes and Tips

Confirm the transfer case type and shaft dimensions before installation. Clean the bore and shaft sealing surface thoroughly so the new seal seats evenly. Inspect the shaft for grooves or scoring that could affect sealing performance. Part number WS710746 should be matched to the exact application listed in the fitment data.

Quality Assurance

InMotion manufactures this seal with precision and high-quality materials for dependable sealing performance. Part number WS710746 is specified for the listed transfer case applications, including BMW and Maserati models with Magna transfer case variants.
