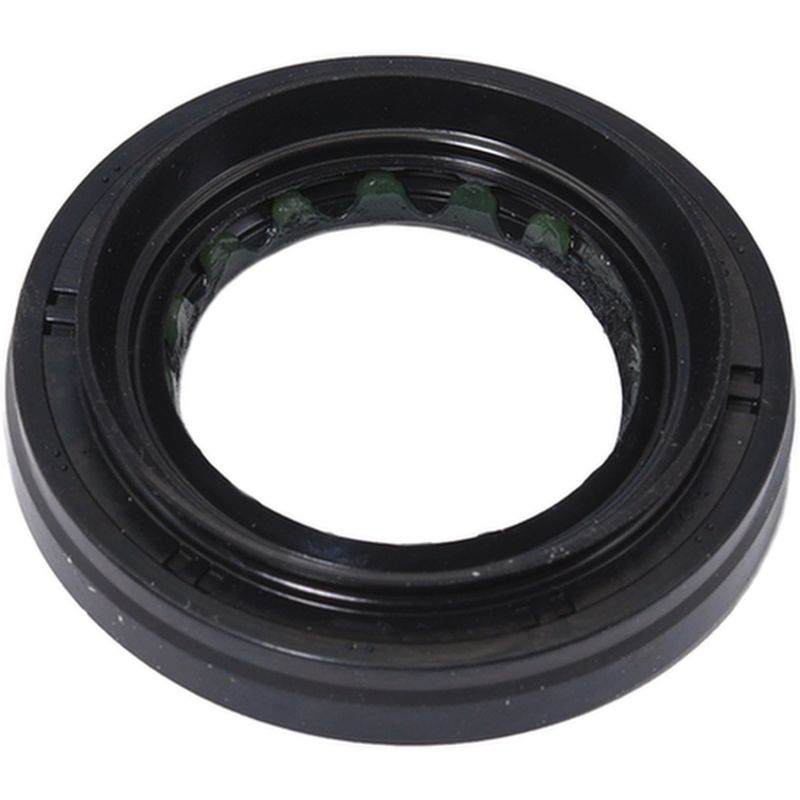

InMotion WS710752 Automatic Transmission Output Shaft Seal - Right

Automatic Transmission Output Shaft Seal

InMotion WS710752 is an automatic transmission output shaft seal built to maintain a tight barrier at the shaft opening and help keep contaminants out of the transmission assembly. It is specified for applications with the Aisin 60-40LE transmission and is listed for right-side fitment on select Saturn and Suzuki vehicles.

• Fits 2008-2009 Saturn Astra, right, with Aisin 60-40LE transmission.
• Fits 2007-2009 Suzuki SX4, right, with Aisin 60-40LE transmission.
• Fits 2002-2007 Suzuki Aerio, right, with Aisin 60-40LE transmission.
• Fits 1995-2002 Suzuki Esteem, right, with Aisin 60-40LE transmission.

Key Features

• Precision seal construction for a secure fit at the output shaft.
• High-quality material selection for dependable sealing performance.
• Helps reduce fluid leakage and limit contamination entry.
• Designed for Aisin 60-40LE transmission applications.
• Direct fit for listed Saturn Astra and Suzuki models.

Detailed Description

WS710752 is a transmission sealing component intended for vehicles equipped with the Aisin 60-40LE unit. The seal dimensions include a 1.378-inch inside diameter, 2.291-inch outside diameter, and 0.374-inch thickness, with a 2.283-inch housing bore and 1.378-inch shaft diameter. Those measurements support proper seating and sealing at the output shaft interface, where fluid retention and contamination control are critical. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Transmission fluid seepage at the output shaft area.
• Contaminant intrusion from road debris and moisture.
• Seal wear that can lead to reduced sealing integrity.
• Fitment issues on Aisin 60-40LE-equipped applications.

Installation Notes and Tips

Confirm the transmission type before ordering, since fitment is limited to vehicles with the Aisin 60-40LE transmission. Match the shaft and housing dimensions to the original seal location, and inspect the sealing surface for wear, scoring, or contamination before installation. Proper cleaning of the bore and shaft area helps the new seal seat correctly.

Quality Assurance

InMotion specifies this seal with precision engineering and high-quality materials to support reliable sealing performance in transmission service.
