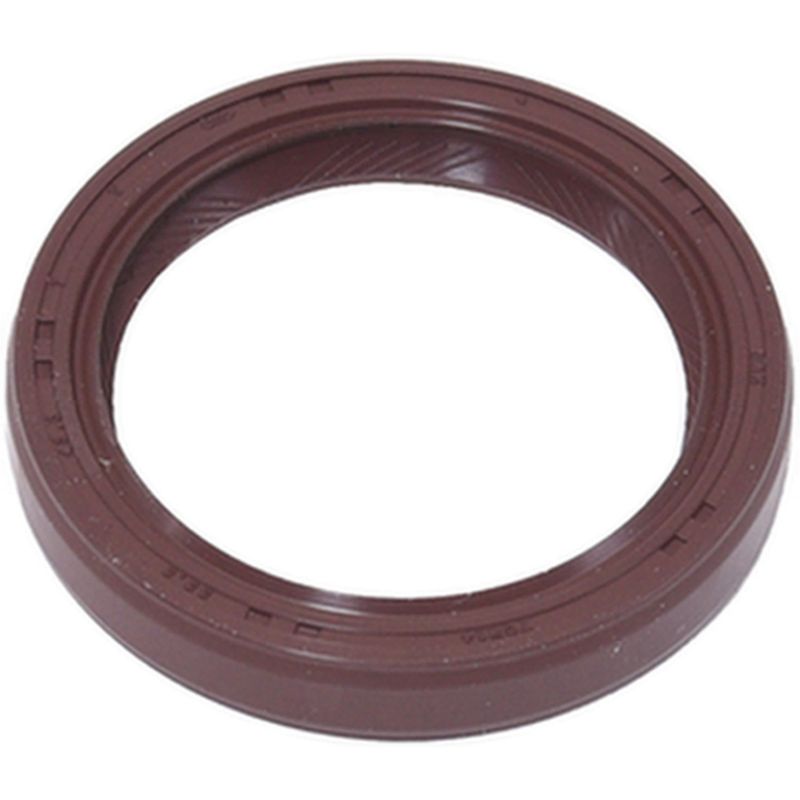

InMotion WS710775 Automatic Transmission Output Shaft Seal - Left or Right Outer

Overview

InMotion WS710775 is a transmission seal built to maintain a tight barrier against fluid loss and contamination. It is a fitment-specific replacement for select Volkswagen, Audi, and Volvo applications with listed Aisin transmissions, including Volkswagen CC, Volkswagen Tiguan, Audi A3 Quattro, and multiple Volvo models.

Use WS710775 when you need a seal that matches the specified shaft and housing dimensions and supports clean, reliable sealing at the transmission output shaft. The part number WS710775 is also useful when cross-checking service records or ordering the correct replacement again.

Key Features

• Precision-sized seal with 1.311 in inside diameter and shaft diameter.
• 1.713 in outside diameter and 1.705 in housing bore for specified applications.
• 0.276 in thickness for a controlled sealing profile.
• Fits select Volkswagen, Audi, and Volvo vehicles with listed Aisin transmission codes.
• Part number WS710775 for accurate identification and repeat ordering.

Detailed Description

WS710775 is an automatic transmission output shaft seal engineered for vehicles that require a precise sealing interface at the transmission output area. The listed dimensions help ensure the seal seats correctly in the housing and around the shaft, reducing the chance of leaks and contamination entering the assembly. This makes it a practical replacement for service work on Volkswagen CC, Volkswagen Tiguan, Audi A3 Quattro, and compatible Volvo applications with the specified Aisin units.

The seal is intended for applications where maintaining fluid retention and protecting internal transmission components are important to long-term drivability. If you are sourcing WS710775 for a Volkswagen or Volvo repair, verify the transmission code and fitment notes before installation.

What It Helps Address

• Transmission fluid seepage at the output shaft area.
• Contamination entering the sealed transmission assembly.
• Wear-related sealing loss from an aging output shaft seal.
• Incorrect replacement selection when the transmission code is not verified.

Installation Notes

Confirm the transmission code, shaft diameter, and housing bore before installation. Clean the sealing surfaces thoroughly and inspect the shaft and bore for wear, scoring, or damage that could affect seal performance. Follow the vehicle service procedure for the listed Volkswagen, Audi, and Volvo applications.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials to support reliable sealing performance in the specified applications.
