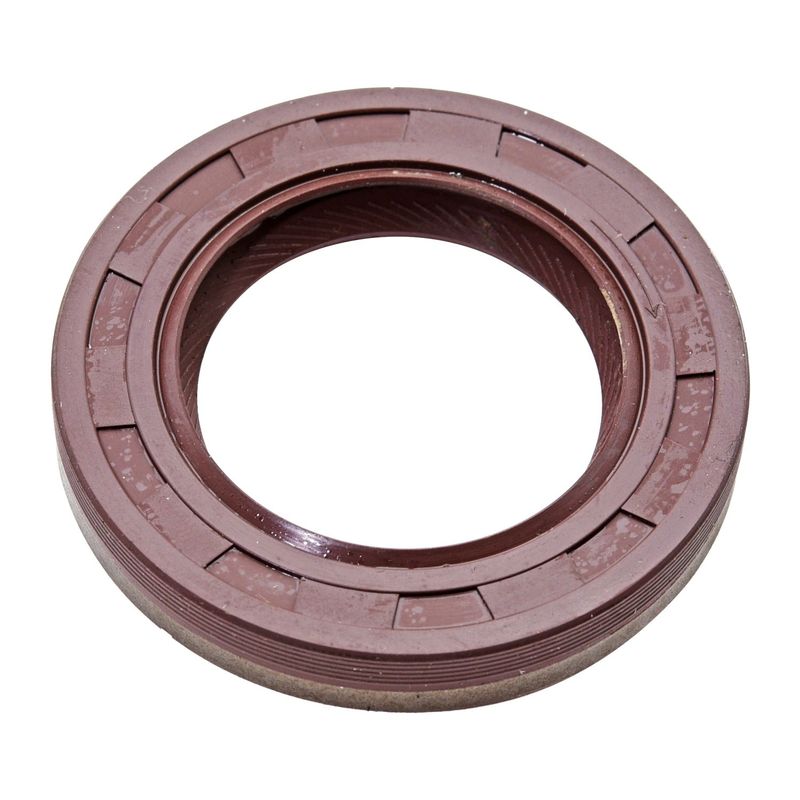

InMotion WS710824 Engine Crankshaft Seal - Front

Engine Seal for Differential Pinion Applications

InMotion WS710824 is a fluoro-elastomer engine seal built for front-position applications that need a precise barrier against contaminants and fluid loss. Its compact dimensions and tight housing fit support reliable sealing in demanding driving conditions, including daily use and off-road service.

Compatible With front applications on 1998-2003 Isuzu Rodeo, 2001-2003 Isuzu Rodeo Sport, 1998-2000 Isuzu Amigo, 1989-1990 Pontiac LeMans, and 1988-1990 Pontiac Optima.

Key Features

• Fluoro-elastomer construction for sealing performance in demanding engine and drivetrain environments
• Inside diameter: 1.22 in.; shaft diameter: 1.22 in.
• Outside diameter: 1.976 in.; housing bore: 1.969 in.
• Thickness and width: 0.315 in.
• Engineered to help maintain a secure seal against debris and moisture
• Part number WS710824 for accurate ordering and fitment lookup

Detailed Description

InMotion WS710824 is built around precise dimensional control to support a tight seal at the differential pinion area. The fluoro-elastomer material is selected for durability in sealing applications where exposure to contaminants, moisture, and fluid movement can affect component life. For buyers searching for a front differential pinion seal for Isuzu Rodeo, Isuzu Rodeo Sport, or Isuzu Amigo, this part number WS710824 provides a direct fitment reference for the listed vehicles.

This seal is also listed for Pontiac LeMans and Pontiac Optima front applications, making it a useful OE-style replacement when the original seal shows wear or leakage. The measured outside diameter, inside diameter, and housing bore help ensure the seal seats correctly and maintains contact where it matters.

What It Helps Address

• Fluid seepage at the differential pinion seal area
• Contamination from dirt, debris, and moisture entering the seal interface
• Wear-related sealing loss from an aged or hardened seal
• Fitment issues when replacing a seal with incorrect diameter specifications
• Noise or drivability concerns linked to low fluid levels caused by leakage

Installation Notes and Tips

Verify housing bore, shaft diameter, and outside diameter before installation. Clean the sealing surface thoroughly and inspect the mating components for scoring or wear before pressing the seal into place. For fitment-based searches, confirm the vehicle year, make, model, and front position exactly as listed for WS710824.

Fits 1998-2003 Isuzu Rodeo, front; 2001-2003 Isuzu Rodeo Sport, front; 1998-2000 Isuzu Amigo, front; 1989-1990 Pontiac LeMans, front; and 1988-1990 Pontiac Optima, front.

Quality Assurance

InMotion manufactures this seal with precision-focused dimensions and fluoro-elastomer material selection to support dependable sealing performance in the specified applications.
