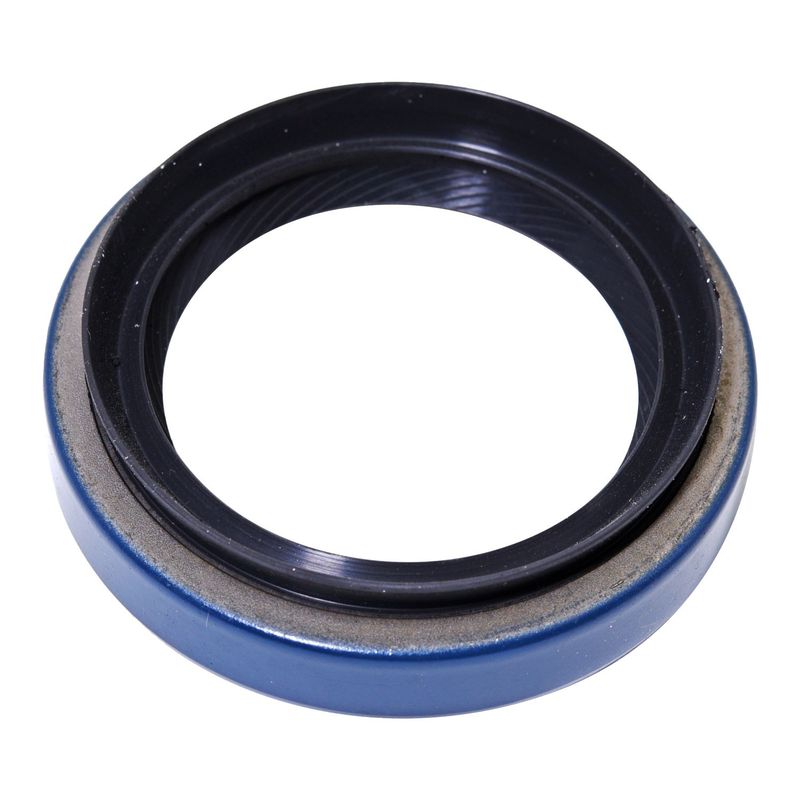

InMotion WS710835 Transfer Case Output Shaft Seal - Front or Rear

Transfer Case Output Shaft Seal Overview

The InMotion WS710835 transfer case output shaft seal is built to maintain a tight barrier at the shaft opening and keep contaminants out of the sealing area. It uses fluoro-elastomer sealing material for durability and consistent sealing performance in demanding driveline service.

Compatible With Jeep transfer case applications, this seal is a fitment-based replacement for select Grand Cherokee, Commander, and Liberty models. The WS710835 is sized with a 1.969-inch inside diameter, 2.764-inch outside diameter, 0.453-inch thickness, and 2.756-inch housing bore for applications that match those dimensions.

Key Features

• Fluoro-elastomer sealing material for resistance to heat and fluid exposure.
• Precision dimensions for transfer case output shaft sealing applications.
• Helps maintain a secure seal against moisture and debris intrusion.
• Fits rear and front transfer case applications listed in the vehicle fitment data.
• Part number WS710835 for easy identification and ordering.

Detailed Description

WS710835 is a transfer case output shaft seal intended for Jeep driveline service where a reliable seal is needed to protect internal components from contamination and leakage. Fitment includes 2008-2012 Jeep Liberty, rear with Magna 3022 transfer case; 2006-2010 Jeep Commander, rear with New Process 245J transfer case; 2009-2010 Jeep Grand Cherokee, rear; 2005-2007 Jeep Grand Cherokee, rear; 2008 Jeep Grand Cherokee, rear except DHX sale code; and 1999-2004 Jeep Grand Cherokee, front with New Process 247J transfer case. This part cross-references no listed interchange numbers for the same application.

Common Problems This Seal Can Address

• Fluid seepage at the transfer case output shaft.
• Contamination entering the sealing area.
• Wear-related loss of sealing integrity.
• Moisture intrusion around the shaft opening.
• Service replacement for a damaged or hardened seal.

Installation Notes and Tips

Confirm the transfer case type and position before installation, since fitment varies by model year and drivetrain configuration. Inspect the shaft surface and housing bore for wear, scoring, or debris before installing the new seal. Verify the dimensions and application notes against the vehicle listing to ensure the correct WS710835 seal is selected.

Quality Assurance

InMotion uses precision engineering and high-quality materials to produce a seal that supports reliable driveline sealing performance. The fluoro-elastomer construction is selected for durability in demanding operating conditions.
