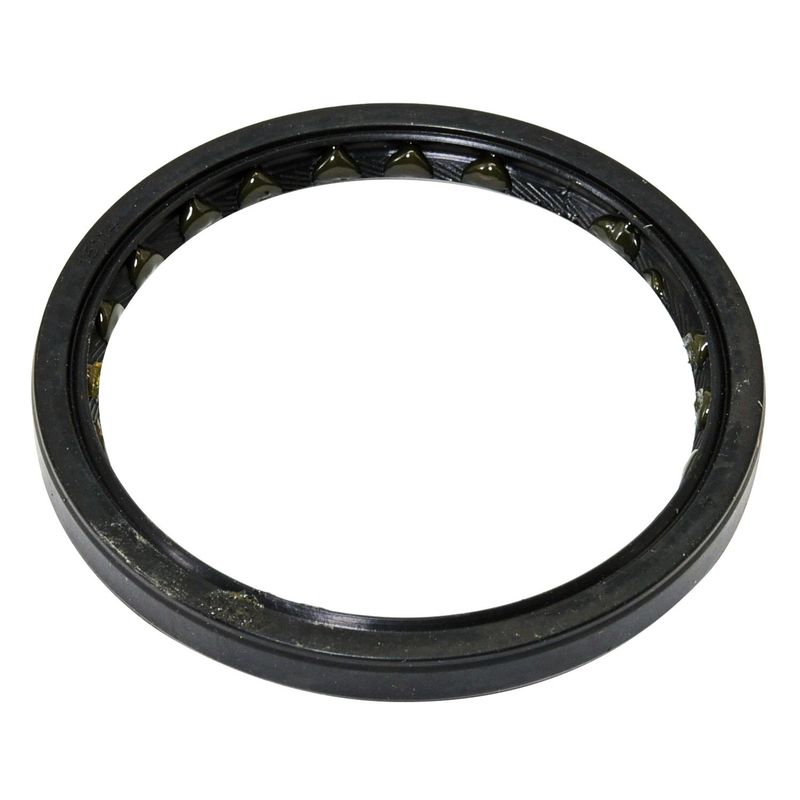

InMotion WS710876 Automatic Transmission Output Shaft Seal - Left

Automatic transmission seal overview

InMotion WS710876 is an automatic transmission output shaft seal built to maintain a tight barrier against fluid loss and contamination. It is specified for left-side applications on select Toyota, Lexus, and Pontiac vehicles with the listed transmission codes.

• Precision seal construction for a secure fit at the output shaft.
• Helps block debris and moisture from entering the sealing area.
• Supports leak control in transmission sealing applications.
• Fits select Toyota Matrix, Toyota Highlander, Toyota RAV4, Toyota Sienna, Lexus RX330, Lexus RX350, Lexus RX300, and Pontiac Vibe applications.

Fitment details

Compatible with 1999-2014 Toyota, Lexus, and Pontiac applications listed for the left side, including Toyota U140F and U151F transmission configurations. Fits 2009-2014 Toyota Matrix, left, with Toyota U140F Transmission. Fits 2007-2013 Toyota Highlander, left, with Toyota U151F Transmission. Fits 2004 Toyota Highlander, left, with Toyota U151F Transmission. Fits 2012 Toyota RAV4, left, with Toyota U151F Transmission. Fits 2010 Toyota RAV4, left, with Toyota U151F Transmission. Fits 2006-2007 Toyota RAV4, left, with Toyota U151F Transmission. Fits 2011 Toyota RAV4, left, with Toyota U140F Transmission. Fits 2008-2009 Toyota RAV4, left, with Toyota U140F Transmission. Fits 1999-2005 Toyota RAV4, left, with Toyota U140F Transmission. Fits 2009-2010 Pontiac Vibe, left, with Toyota U140F Transmission. Fits 2004-2010 Toyota Sienna, left, with Toyota U151F Transmission. Fits 2007-2009 Lexus RX350, left, with Toyota U151F Transmission. Fits 2004-2006 Lexus RX330, left, with Toyota U151F Transmission. Fits 2005-2006 Toyota Highlander, left, with Toyota U140F Transmission. Fits 2001-2003 Toyota Highlander, left, with Toyota U140F Transmission. Fits 1999-2003 Lexus RX300, left, with Toyota U140F Transmission.

Common issues this seal addresses

• Transmission fluid seepage at the output shaft area.
• Contamination entering the sealing surface.
• Wear-related sealing loss in the differential/transmission interface.
• Service replacement for damaged or hardened seals.

Installation notes and quality

Verify transmission code, side, and model year before installation. Measure the shaft diameter and housing bore against the listed dimensions: 2.441 in. inside diameter, 2.913 in. housing bore, 2.921 in. outside diameter, and 0.295 in. thickness. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

InMotion focuses on precision-fit sealing components made from quality materials for dependable service in transmission sealing applications.

Part number WS710876 should be matched to the exact transmission configuration shown in the fitment data.
