InMotion WS710920 Drive Axle Shaft Seal - Front Outer
OE Quality 60-Day Returns
InMotion

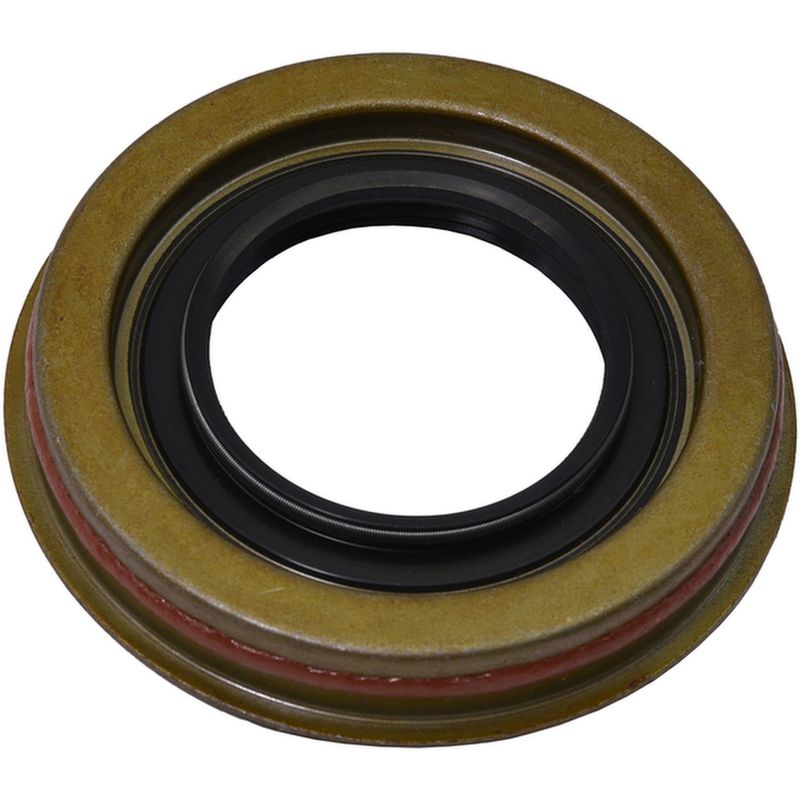

InMotion WS710920 Drive Axle Shaft Seal - Front Outer

Brand InMotion WS710920
Position Front Outer
Material Fluoro-elastomer
Inside Diameter 1.89
Thickness 0.53100000000000003
Outside Diameter 3.3580000000000001
Shaft Diameter 1.89
Sealing Material Fluoro-elastomer
Housing Bore 3.3460000000000001
Width (in) 0.53100000000000003
Fits INFINITI and Nissan · 36 vehicles

Fluoro-elastomer seal. Built for durable resistance to heat and wear in driveline service.

Precision dimensions. Measured sizing supports a secure sealing surface and proper fit.

Contamination barrier. Helps keep debris and moisture away from sensitive internal components.

$22.78Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $22.78
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drive Axle Shaft Seal options

Drive Axle Shaft Seal Overview

The InMotion WS710920 drive axle shaft seal is built to keep contaminants out and fluid in at the differential pinion area. It uses fluoro-elastomer sealing material for dependable resistance to heat and wear in demanding driveline service.

Compatible with Nissan Armada, Nissan TITAN, Nissan Pathfinder, and INFINITI QX56 applications listed below, this seal is a direct-fit service part for vehicles equipped with the Spicer 205 transfer case. The WS710920 part number is useful when matching the correct seal for a front outer driveline service.

Key Features

  • Fluoro-elastomer construction for durable sealing performance.
  • Designed to form a tight barrier against moisture and debris.
  • Helps reduce fluid leakage at the differential pinion area.
  • Precision dimensions support proper sealing surface contact.
  • Service part for driveline and axle sealing applications.

Detailed Description

InMotion WS710920 is a drive axle shaft seal engineered for the differential pinion seal location. Its fluoro-elastomer material is selected for sealing stability, while the measured inside diameter, outside diameter, and housing bore dimensions support a secure fit in the housing. For Nissan Armada, Nissan TITAN, Nissan Pathfinder, and INFINITI QX56 models with the Spicer 205 transfer case, this seal helps maintain the integrity of the driveline by limiting contamination and fluid loss. The WS710920 part number should be matched carefully to the application and transfer case configuration.

What It Helps Address

  • Gear oil seepage at the differential pinion seal area.
  • Contamination from dirt, dust, and moisture entering the assembly.
  • Seal wear that can lead to driveline fluid loss.
  • Reduced protection for internal differential components.

Installation Notes and Tips

Verify the vehicle year, make, model, and transfer case configuration before installation. This seal is listed for front outer applications with the Spicer 205 transfer case, so confirm the existing part and housing dimensions match WS710920 before service. Clean the sealing surface thoroughly and inspect the surrounding components for wear or damage before reassembly.

Quality Assurance

InMotion positions this seal as a precision-built replacement using high-quality materials for reliable driveline sealing performance.

This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2015NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2015NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2014NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2014NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2013NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2013NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2012NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2012NissanPathfinder4WDFront Outerwith Spicer 205 Transfer Case
2012NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2011NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2011NissanPathfinder4WDFront Outerwith Spicer 205 Transfer Case
2011NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2010INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2010NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2010NissanPathfinder4WDFront Outerwith Spicer 205 Transfer Case
2010NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2009INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2009NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2009NissanPathfinder4WDFront Outerwith Spicer 205 Transfer Case
2009NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2008INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2008NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2008NissanPathfinder4WDFront Outerwith Spicer 205 Transfer Case
2008NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2007INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2007NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2007NissanPathfinder4WDFront Outerwith Spicer 205 Transfer Case
2007NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2006INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2006NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2006NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2005INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2005NissanArmada4WDFront Outerwith Spicer 205 Transfer Case
2005NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
2004INFINITIQX564WDFront Outerwith Spicer 205 Transfer Case
2004NissanTITAN4WDFront Outerwith Spicer 205 Transfer Case
