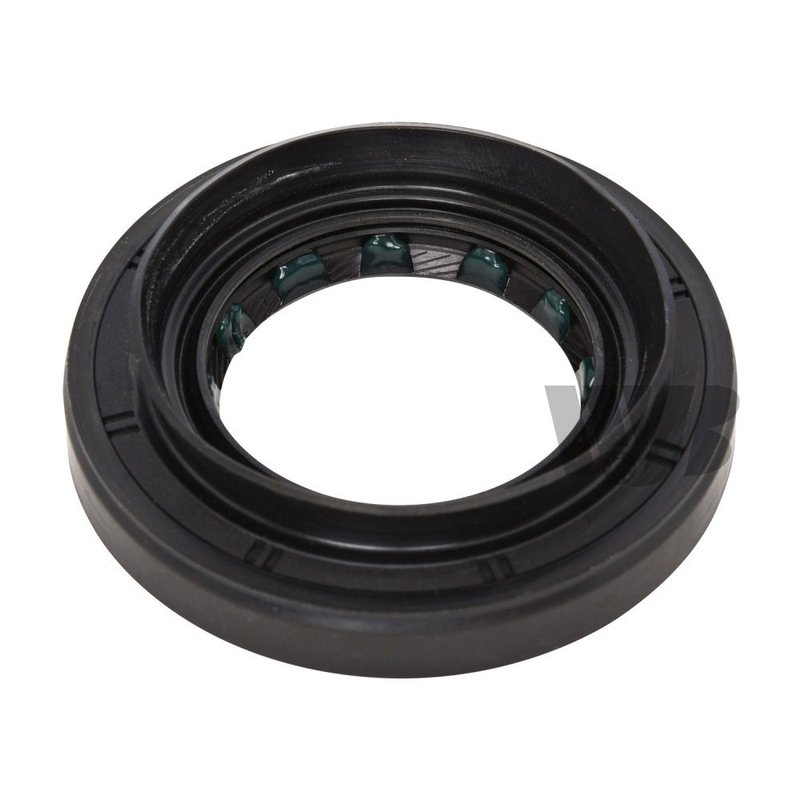

InMotion WS711034 Automatic Transmission Output Shaft Seal - Left

Automatic transmission seal overview

InMotion WS711034 is an automatic transmission output shaft seal built for confirmed left-side applications across a wide range of Hyundai and Kia vehicles. It helps maintain a tight seal at the shaft opening to keep contaminants out and fluid where it belongs.

Key features

• Precision-sized seal with a 1.575 in. inside diameter and shaft diameter.
• 2.764 in. outside diameter and 2.756 in. housing bore for proper seating.
• 0.394 in. thickness for a controlled sealing profile.
• Built to help reduce leaks and protect internal transmission components.
• Fits left-side applications on Hyundai Santa Fe, Hyundai Sonata, Kia Optima, and related models.

Detailed fitment and function

This seal is used at the output shaft area to create a barrier against moisture, dirt, and other contaminants that can affect transmission operation. The WS711034 is listed for 2010-2019 Hyundai Santa Fe, 2011-2017 Hyundai Sonata, 2011-2019 Kia Optima, and additional Hyundai and Kia applications, including select Hyundai Azera models with the A6LF1 transmission. If you are replacing a leaking transmission output shaft seal on a Hyundai Santa Fe XL or Kia Sorento, this part number WS711034 matches the specified left-side fitment data.

This part cross-references no interchange numbers in the provided data.

What this seal helps address

• Transmission fluid seepage at the output shaft opening.
• Contamination from road debris and moisture entering the seal area.
• Wear-related sealing loss from an aging shaft seal.
• Service needs on left-side Hyundai and Kia transmission applications.

Installation notes and quality assurance

Verify the transmission type, side, and housing dimensions before installation. Clean the sealing surface thoroughly and inspect the shaft for wear or scoring that could affect seal performance. Confirm the vehicle application against the fitment list, especially on Hyundai Azera models with the A6LF1 transmission.

InMotion manufactures this seal with precision and high-quality materials to support reliable sealing performance in the specified applications. Part number WS711034 should be matched to the exact vehicle and transmission configuration shown in the fitment data.
