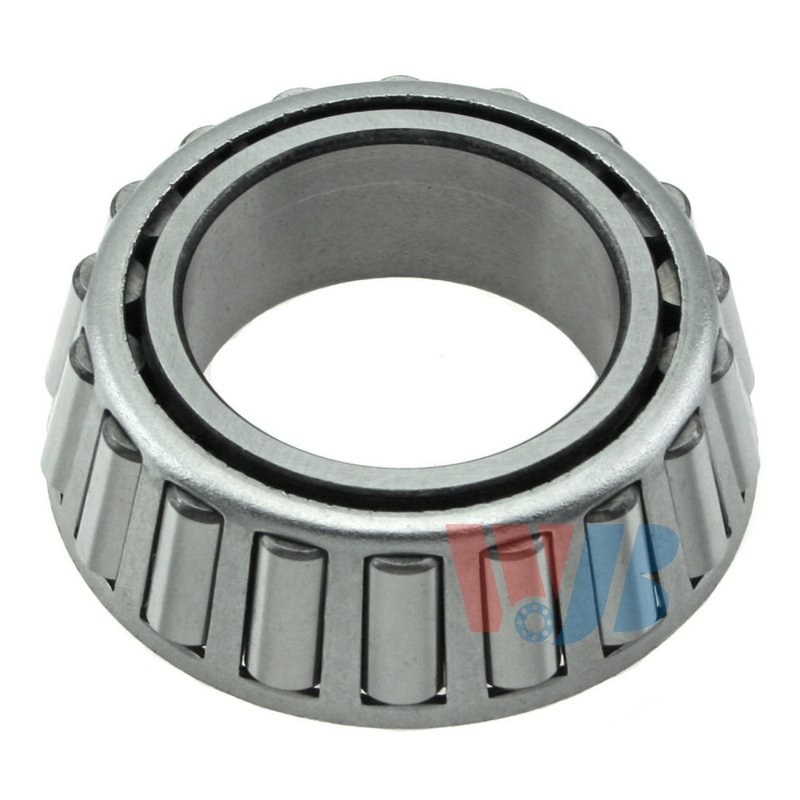

InMotion WT3994 Wheel Bearing - Rear or Rear Inner

Wheel Bearing for Ford F-250 and F-350

InMotion WT3994 is a taper wheel bearing built for rear inner service on select Ford heavy-duty trucks. It is specified for 1985-1999 Ford F-250 rear inner applications with a 10.25-inch ring gear and 1985-1997 Ford F-350 rear inner applications, giving technicians a direct replacement option for common driveline service work.

Key Features

• Taper bearing design for rear inner wheel bearing service
• Cylindrical bearing construction
• Inside diameter: 2.625 in. (66.68 mm)
• Width: 1.183 in. (30.05 mm)
• Cone radius: 0.22 in. (5.6 mm)
• Weight: 0.715 lb. (1.576 kg)
• Part number WT3994 for catalog and service identification

Detailed Description

Built from high-quality materials, this InMotion wheel bearing is made for rotational support, reduced friction, and stable operation in demanding automotive and industrial environments. The taper bearing profile and listed dimensions make WT3994 a practical choice for rear inner wheel bearing replacement on Ford F-250 and Ford F-350 trucks where the specified axle and ring gear configuration applies. WT3994 is a service part that supports smooth wheel rotation and consistent load handling in driveline applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel end noise from a worn rear inner bearing
• Excessive friction in the hub and axle assembly
• Loose or unstable wheel rotation
• Service replacement for worn bearing surfaces
• Reduced rotational efficiency in rear axle service

Installation Notes and Tips

• Verify axle configuration before ordering; this listing includes 1985-1999 Ford F-250 rear inner with 10.25-inch ring gear and 1985-1997 Ford F-350 rear inner.
• Confirm bearing dimensions against the removed part: 2.625-inch inside diameter and 1.183-inch width.
• Inspect related seals, races, and hub components during service to avoid repeat repairs.
• Clean and lubricate all mating surfaces according to factory service procedures before assembly.

Quality Assurance

InMotion WT3994 is manufactured with durable materials and dimensional specifications suited to repeatable service use in automotive and industrial settings. The part number WT3994 should be matched to the vehicle application and bearing measurements before installation.
