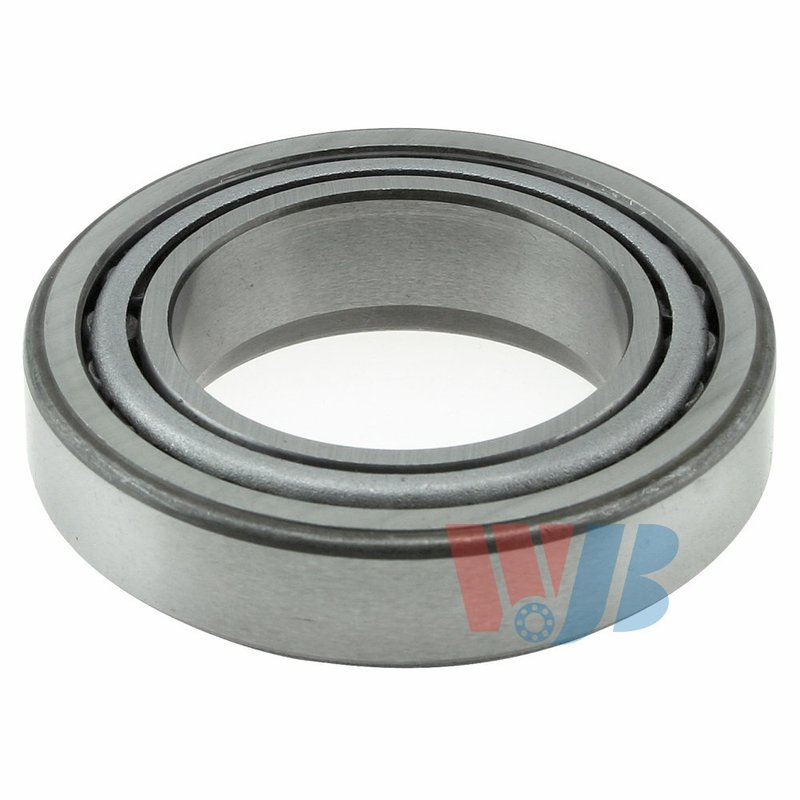

InMotion WT517004 Wheel Bearing and Race Set - Front Inner

Wheel Bearing and Race Set for Suzuki Samurai

InMotion WT517004 is a taper wheel bearing and race set built for smooth rotation, reduced friction, and stable wheel support in demanding automotive and industrial use. It is a direct-fit service part for the front inner position on 1985-1995 Suzuki Samurai models.

• Taper bearing design for controlled load handling and consistent wheel support
• Cylindrical bearing profile with high-quality material construction
• Cup outside diameter: 2.675 in. / 68 mm
• Cone inside diameter: 1.61 in. / 41 mm
• Width: 0.529 in. / 0.706 in.
• Weight: 0.241 lb.
• Front inner wheel bearing and race set for Suzuki Samurai service work

Detailed Product Overview

Built around a taper bearing type, WT517004 is made to support rotational movement while helping maintain stability under load. The listed dimensions, including the 68 mm cup outside diameter and 41 mm cone inside diameter, make this bearing and race set a precise service component for front inner wheel bearing replacement on the Suzuki Samurai. InMotion WT517004 is also suited to applications where dependable bearing performance and low-friction operation are required.

For buyers searching for a Suzuki Samurai front inner wheel bearing and race set, WT517004 provides the dimensional detail needed for confident selection. The part number WT517004 is also a useful reference when comparing service parts for the same application.

What This Part Helps Address

• Wheel end noise caused by worn bearing surfaces
• Excessive play or looseness at the front wheel hub
• Rough rotation from damaged or fatigued bearing components
• Reduced stability from worn front inner bearing support
• Service replacement needs on 1985-1995 Suzuki Samurai front inner wheel assemblies

Installation Notes and Tips

Confirm bearing dimensions, hub condition, and race seating before installation. Clean the hub and spindle surfaces thoroughly, inspect for scoring or heat damage, and pack or lubricate the bearing according to the vehicle service procedure. Proper preload and torque settings are important for bearing life and wheel-end performance. This part is listed for the front inner position on 1985-1995 Suzuki Samurai models.

Quality Assurance

InMotion positions this bearing as a multi-purpose service component built from high-quality materials for consistent operation across automotive and industrial environments. WT517004 is specified as a taper wheel bearing and race set with published dimensional data to support accurate part selection.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible Vehicles

• Fits 1985-1995 Suzuki Samurai, front inner
