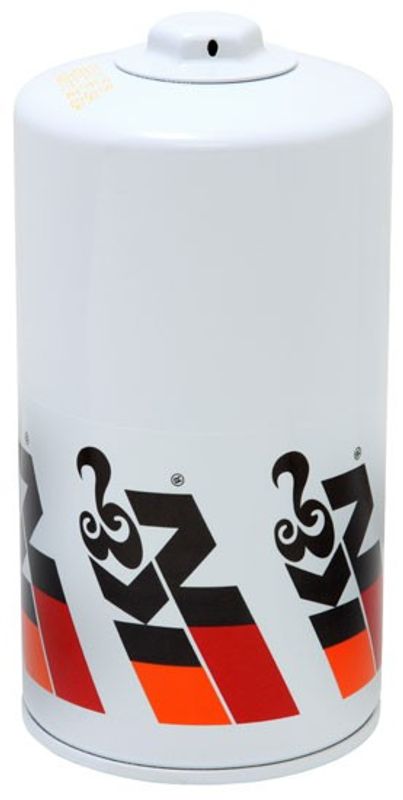

K&N HP-4005 Engine Oil Filter

Reliable Engine Oil Filtration for Ford Super Duty Trucks

The K&N HP-4005 engine oil filter is designed to provide effective oil filtration for Ford F-250 Super Duty and F-350 Super Duty models. Engineered with high flow premium media and essential features like an anti drain back valve, this spin-on oil filter supports engine longevity and performance.

• Anti drain back valve to prevent dry starts
• Bypass valve for continuous oil flow under extreme conditions
• High flow premium filter media for efficient contaminant capture
• Durable Viton rubber gasket for reliable sealing
• Spin-on style with 1-inch removal nut for easy maintenance
• Thread specification: 1-1/16 in. - 16
• PSI relief valve rated between 18-22 PSI
• Height: 6.656 inches (169 mm), Outside diameter: 3.719 inches (94 mm)
• 1 year limited warranty

Technical Details and Features

The K&N HP-4005 oil filter utilizes high flow premium media designed to trap contaminants effectively while maintaining optimal oil flow. The inclusion of an anti drain back valve prevents oil from draining out of the filter when the engine is off, reducing wear during startup. A bypass valve ensures oil continues to circulate even if the filter becomes clogged, protecting the engine under harsh conditions. The Viton rubber gasket provides a durable and heat-resistant seal, minimizing the risk of leaks. The spin-on design with a 1-inch removal nut simplifies filter changes, especially for Ford F-250 Super Duty and F-350 Super Duty owners. The filter’s thread specification (1-1/16 in. - 16) ensures compatibility with the specified vehicle models.

Compatible Vehicles and Applications

This K&N HP-4005 oil filter is compatible with the following Ford models:

• Ford F-250 Super Duty
• Ford F-350 Super Duty

It is designed to maintain engine cleanliness and protect critical components by filtering out harmful particles and contaminants from engine oil.

Common Issues Addressed by the K&N HP-4005 Oil Filter

• Prevents engine wear caused by contaminated oil
• Reduces risk of dry starts with anti drain back valve
• Maintains oil flow during filter clogging with bypass valve
• Minimizes oil leaks with durable Viton rubber gasket
• Facilitates easier oil filter removal with built-in removal nut

Installation Notes and Tips

When installing the K&N HP-4005 oil filter, ensure the gasket surface is clean and free of debris. Hand-tighten the filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn. The 1-inch removal nut allows for convenient removal using a compatible socket or wrench. Always verify thread compatibility (1-1/16 in. - 16) with your vehicle’s specifications before installation.

Quality Assurance and Warranty

K&N provides a 1 year limited warranty on the HP-4005 oil filter, covering defects in materials and workmanship. This warranty supports the product’s reliability and performance when used according to manufacturer guidelines.
