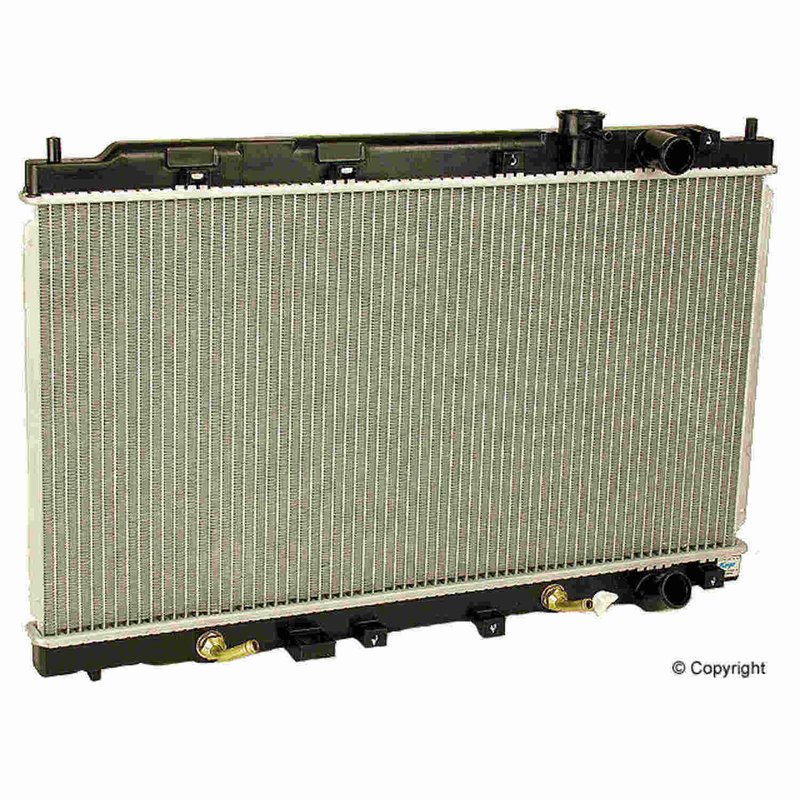

Koyorad A1568 Radiator
| Brand | Koyorad A1568 |
|---|---|
| Core Height | 13.75 |
| Core Material | Aluminum |
| Core Row Quantity | 1 |
| Core Thickness | 0.625 |
| Core Width | 26.875 |
| Inlet Diameter | 1.25 |
| Internal Transmission Oil Cooler | Yes |
| Outlet Diameter | 1.25 |
| Tank Material | Plastic |
| Title | Koyorad a1568 radiator |
| Transmission Oil Cooler Diameter | 0.75 |
| Transmission Oil Cooler Included | Yes |
| Fits | Acura · 8 vehicles |
OE equivalent radiator. Built to deliver a direct replacement fit and finish.
Aluminum core. Helps promote efficient heat transfer in a single-row design.
Transmission oil cooler included. Adds integrated cooling support in one assembly.
Koyorad A1568 Radiator for Integra
The Koyorad A1568 radiator is an OE-equivalent replacement built for 1994-2001 Acura Integra applications. It combines an aluminum core with plastic tanks and includes an internal transmission oil cooler for automatic-transmission cooling support.
Key Features
- Fits 1994-2001 Acura Integra
- OE-style radiator replacement from Koyorad
- Aluminum core with plastic tank construction
- Single-row core design
- Core dimensions: 26.875 in. wide, 13.75 in. high, 0.625 in. thick
- 1.25 in. inlet and 1.25 in. outlet diameters
- Includes internal transmission oil cooler
- Transmission oil cooler diameter: 0.75 in.
- Part number: A1568
Detailed Description
Koyorad A1568 is a direct-fit radiator for Acura Integra models from 1994 through 2001. It is built with an aluminum core for efficient heat transfer and plastic end tanks for OE-style construction. The integrated transmission oil cooler is included, making this radiator a practical replacement for vehicles equipped with automatic transmission cooling through the radiator assembly. If you are searching for a radiator for 1994-2001 Acura Integra or a Koyorad A1568 radiator replacement, this unit matches the listed application and core specifications.
Common Problems This Part Can Address
- Coolant leaks from a damaged or aging radiator
- Overheating caused by restricted or inefficient heat exchange
- Cracked or brittle tank seams on the original radiator
- Transmission fluid cooling issues related to a failed internal cooler
- Reduced cooling performance from corrosion or internal blockage
Installation Notes and Tips
Verify inlet and outlet hose diameters before installation and confirm the vehicle uses the listed radiator configuration. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination or debris is present. For automatic-transmission vehicles, confirm proper connection of the integrated transmission oil cooler lines. The part number A1568 should be matched to the vehicle application before installation.
Quality Assurance
Koyorad states that its radiators are OE-equivalent replacements produced with the technical experience needed to complete the job correctly the first time. The A1568 follows that OE-style approach for Acura Integra cooling system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Acura | Integra | 1.8L | L4 | N/A | — |
| 2000 | Acura | Integra | 1.8L | L4 | N/A | — |
| 1999 | Acura | Integra | 1.8L | L4 | N/A | — |
| 1998 | Acura | Integra | 1.8L | L4 | N/A | — |
| 1997 | Acura | Integra | 1.8L | L4 | N/A | — |
| 1996 | Acura | Integra | 1.8L | L4 | N/A | — |
| 1995 | Acura | Integra | 1.8L | L4 | N/A | — |
| 1994 | Acura | Integra | 1.8L | L4 | N/A | — |
