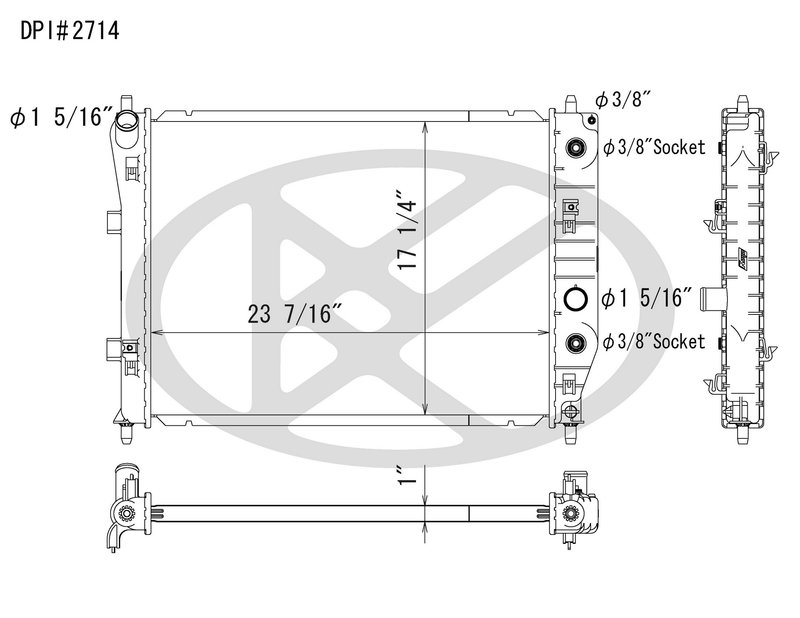

Koyorad A2714 Radiator
| Brand | Koyorad A2714 |
|---|---|
| Core Height | 23.4375 |
| Core Material | Aluminum |
| Core Row Quantity | 1 |
| Core Thickness | 1 |
| Core Width | 18.5 |
| Inlet Diameter | 1.3125 |
| Internal Transmission Oil Cooler | Yes |
| Outlet Diameter | 1.3125 |
| Tank Material | Plastic |
| Title | Koyorad a2714 radiator |
| Transmission Oil Cooler Diameter | 1.625 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Plate Quantity | 3 |
| Fits | Chevrolet · 12 vehicles |
OE equivalent radiator. Built to match the original design for a straightforward replacement.
Aluminum core. Helps promote efficient heat transfer for dependable cooling performance.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Koyorad A2714 Radiator for Corvette and SSR
The Koyorad A2714 radiator is an OE-equivalent replacement built for consistent cooling performance and direct-fit service. It is engineered with an aluminum core, plastic tanks, and an integrated transmission oil cooler for vehicles that need both engine and transmission temperature control.
- Aluminum core with 1-row construction
- Plastic tank design for OE-style replacement fitment
- Core dimensions: 23.4375 in. height x 18.5 in. width x 1 in. thickness
- 1.3125 in. inlet and 1.3125 in. outlet diameters
- Internal transmission oil cooler included
- Transmission oil cooler diameter: 1.625 in. with 3 plate quantity
- Fits 2005-2011 Chevrolet Corvette, N/A
- Fits 2003-2006 Chevrolet SSR, N/A
OE-Style Cooling Replacement
Koyorad A2714 is designed as a direct replacement radiator for select Chevrolet applications, including the 2005-2011 Chevrolet Corvette and 2003-2006 Chevrolet SSR. The aluminum core helps transfer heat efficiently, while the integrated transmission oil cooler adds a factory-style solution for automatic transmission fluid temperature management. This part number, A2714, is a practical choice when replacing a worn or leaking radiator on these vehicles.
Common Reasons to Replace
- Coolant leaks from a damaged radiator tank or core
- Overheating caused by restricted coolant flow
- Transmission fluid temperature issues related to a failing cooler circuit
- Corrosion or age-related wear in the original radiator assembly
- Reduced cooling efficiency in high-load driving conditions
Installation Notes and Tips
Verify inlet and outlet hose diameters before installation, and confirm transmission cooler line routing matches the original setup. Because the Koyorad A2714 includes an internal transmission oil cooler, it should be matched to vehicles that use this configuration. Always inspect hoses, clamps, and coolant condition during radiator replacement to complete the repair correctly.
Quality Assurance
Koyorad manufactures OE-equivalent radiators using technical experience focused on replacement cooling components. The A2714 follows that approach with materials and dimensions selected for direct-fit service on the listed Chevrolet Corvette and Chevrolet SSR applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Chevrolet | Corvette | 6.2L | V8 | N/A | — |
| 2010 | Chevrolet | Corvette | 6.2L | V8 | N/A | — |
| 2009 | Chevrolet | Corvette | 6.2L | V8 | N/A | — |
| 2008 | Chevrolet | Corvette | 6.2L | V8 | N/A | — |
| 2007 | Chevrolet | Corvette | 6.0L | V8 | N/A | — |
| 2006 | Chevrolet | Corvette | 6.0L | V8 | N/A | — |
| 2006 | Chevrolet | SSR | 6.0L | V8 | N/A | — |
| 2005 | Chevrolet | Corvette | — | — | N/A | — |
| 2005 | Chevrolet | Corvette | 6.0L | V8 | N/A | — |
| 2005 | Chevrolet | SSR | 6.0L | V8 | N/A | — |
| 2004 | Chevrolet | SSR | 5.3L | V8 | N/A | — |
| 2003 | Chevrolet | SSR | 5.3L | V8 | N/A | — |
