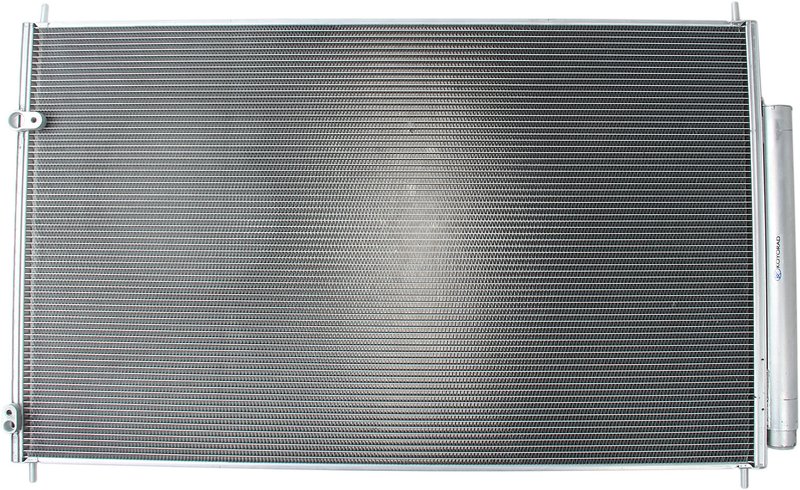

Koyorad CD080496 A/C Condenser
| Brand | Koyorad CD080496 |
|---|---|
| Condenser Core Type | Tube fin |
| Core Length | 29.9375 |
| Core Material | Aluminum |
| Core Thickness | 0.625 |
| Core Width | 18.375 |
| Includes Drier | Yes |
| Mounting Hardware Included | No |
| Oil Cooler Included | No |
| Paint | Yes |
| Title | Koyorad cd080496 condenser |
| Fits | Acura · 5 vehicles |
OE equivalent replacement. Built to match the original condenser’s function and fit.
Tube-fin design. Promotes efficient airflow for dependable A/C performance.
Aluminum construction. Lightweight material helps support effective heat transfer.
Koyorad CD080496 A/C Condenser for Acura MDX
The Koyorad CD080496 is an OE-equivalent A/C condenser built for 2007-2010 Acura MDX applications. It uses an aluminum tube-fin core and includes a drier, making it a direct replacement option for restoring air conditioning performance on the Acura MDX.
Key Features
- Fits 2007-2010 Acura MDX, N/A
- Aluminum tube-fin condenser core
- Core dimensions: 29.9375 in. length x 18.375 in. width x 0.625 in. thickness
- Includes drier
- Painted finish
- OE-equivalent replacement from Koyorad
- Part number: CD080496
Product Details
Koyorad CD080496 condenser is engineered as a direct-fit replacement for the factory A/C condenser used on the 2007-2010 Acura MDX. The aluminum tube-fin construction supports efficient heat transfer, while the included drier helps complete the condenser assembly for service work on the vehicle’s air conditioning system. This part number, CD080496, is a practical choice when replacing a leaking, damaged, or restricted condenser on an Acura MDX.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- A/C system loss caused by a leaking condenser
- Reduced cooling performance from a restricted condenser core
- Physical damage from road debris or front-end impact
- Corrosion or wear affecting condenser efficiency
- Service needs on a 2007-2010 Acura MDX air conditioning system
Installation Notes
Verify condenser dimensions and line connections against the original unit before installation. Flush the A/C system as needed, replace any contaminated components, and evacuate and recharge the system according to factory service procedures. Mounting hardware is not included.
Quality Assurance
Koyorad manufactures OE-equivalent condensers using technical experience focused on replacement fit and function. The CD080496 is built to meet the needs of Acura MDX owners looking for a direct replacement condenser with the correct core construction and included drier.
| Year | Make | Model | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2010 | Acura | MDX | — | 3.7L | V6 | — |
| 2009 | Acura | MDX | — | 3.7L | V6 | — |
| 2008 | Acura | MDX | — | 3.7L | V6 | — |
| 2007 | Acura | MDX | — | 3.7L | V6 | — |
| 2007 | Acura | MDX | Automatic | 3.7L | V6 | — |
