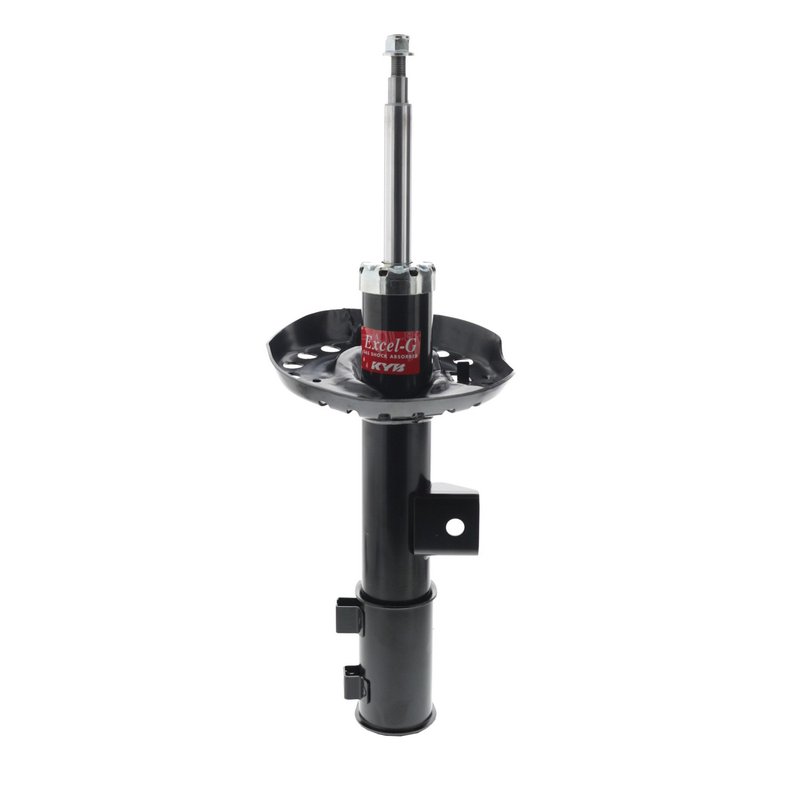

KYB 3330076 Suspension Strut - Front Left

Overview of KYB Excel-G Suspension Strut for Hyundai Veloster

The KYB Excel-G Suspension Strut 3330076 is engineered to restore the original handling and control of your Hyundai Veloster. Designed specifically for this model, it offers precise fitment and reliable performance to maintain vehicle stability and comfort.

• Compressed length: 13.58 inches
• Extended length: 17.67 inches
• Stroke length: 4.09 inches
• Upper mount type: 12x1.25
• Internal rebound spring included
• Right stop (R-stop) included, no bottom stop (B-stop)
• No dust cover included

Features of the KYB Excel-G Strut 3330076

This suspension strut is part of KYB's Excel-G product line, which is designed to provide a balance between comfort and performance. The Excel-G series focuses on restoring original equipment ride quality by combining a twin-tube design with an internal rebound spring. This helps reduce noise and vibration while improving handling characteristics for the Hyundai Veloster.

Technical Details and Performance

The KYB Excel-G 3330076 strut features a compressed length of 13.58 inches and an extended length of 17.67 inches, with a stroke length of 4.09 inches. The upper mount type is 12x1.25, ensuring proper fitment for the Hyundai Veloster. The internal rebound spring enhances damping control, providing consistent performance over a variety of road conditions. While this strut does not include a dust cover, it is designed to operate reliably within the vehicle's suspension system. The presence of a right stop (R-stop) but absence of a bottom stop (B-stop) is consistent with the original equipment specifications for this application.

Common Applications and Problem Solving

• Restores original ride comfort and handling for Hyundai Veloster
• Replaces worn or leaking suspension struts
• Improves vehicle stability during cornering and braking
• Reduces excessive vibration and noise from suspension
• Addresses uneven tire wear caused by faulty struts

Installation Notes and Tips

When installing the KYB Excel-G Suspension Strut 3330076 on a Hyundai Veloster, ensure the upper mount type 12x1.25 matches the vehicle’s specifications. It is recommended to replace struts in pairs to maintain balanced handling. Since this strut does not include a dust cover, inspect the existing dust boot for damage and replace if necessary. Proper torque specifications should be followed during installation to ensure safety and performance.

Quality Assurance and Warranty

KYB is a recognized manufacturer of suspension components, and the Excel-G line is designed to meet or exceed original equipment standards. The internal rebound spring and precise engineering contribute to consistent damping performance. While specific warranty details for part number 3330076 should be confirmed with the distributor or manufacturer, KYB typically offers limited warranties covering defects in materials and workmanship.
