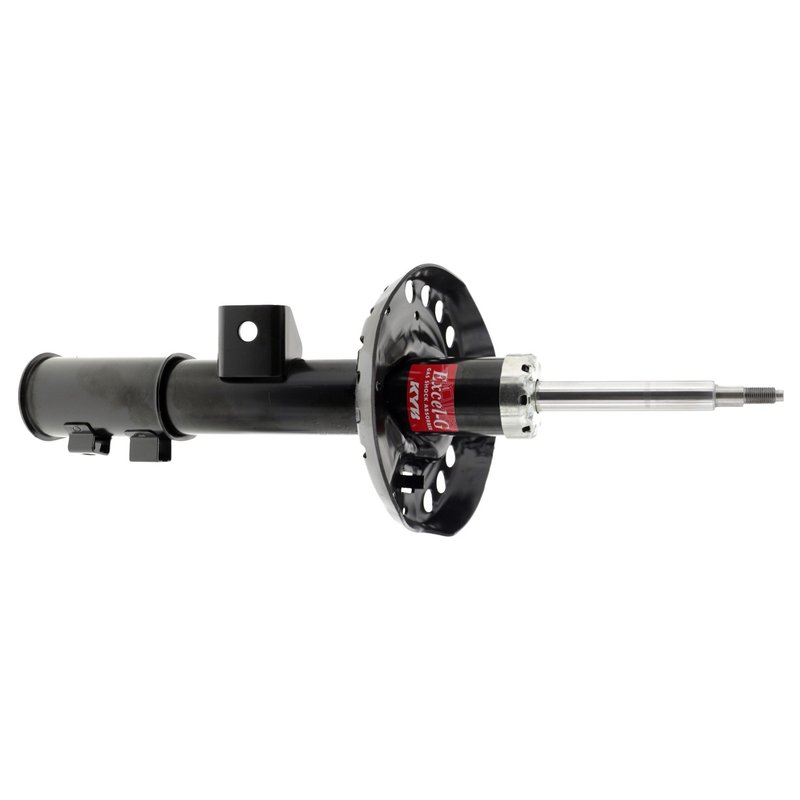

KYB 3330093 Suspension Strut - Front Right

Overview of KYB Excel-G Suspension Strut for Hyundai Veloster

The KYB Excel-G Suspension Strut (Part Number 3330093) is designed specifically for the Hyundai Veloster, providing reliable suspension performance. Engineered to restore original handling and control, this strut is a direct replacement that meets OEM specifications.

• Compressed Length: 13.58 inches
• Extended Length: 17.67 inches
• Stroke Length: 4.09 inches
• Upper Mount Type: 12x1.25
• Internal Rebound Spring: Yes
• R-stop Included: Yes
• Dust Cover: Not included
• B-stop: Not included

Detailed Product Features and Specifications

This KYB Excel-G suspension strut features a compressed length of 13.58 inches and an extended length of 17.67 inches, with a stroke length of 4.09 inches, ensuring precise fitment and optimal suspension travel for the Hyundai Veloster. The upper mount type is 12x1.25, matching the vehicle’s factory mounting points for straightforward installation. The strut includes an internal rebound spring to help maintain consistent damping performance and vehicle stability. Additionally, the R-stop is incorporated to prevent over-extension, while the B-stop and dust cover are not included in this model.

About the KYB Excel-G Product Line

The Excel-G line from KYB is engineered to restore the original ride quality and handling characteristics of your vehicle. Designed as a direct replacement for worn or damaged struts, Excel-G products combine gas-charged technology with an internal rebound spring to provide smooth, controlled suspension response. This makes the Excel-G strut a suitable choice for Hyundai Veloster owners seeking to maintain factory suspension performance without modification.

Common Applications and Problem Solving

• Restores vehicle stability and handling on the Hyundai Veloster
• Reduces excessive body roll and sway during cornering
• Improves ride comfort by absorbing road shocks effectively
• Eliminates noise and vibration caused by worn suspension components
• Prevents suspension over-extension with integrated R-stop feature

Installation Notes and Tips

When installing the KYB Excel-G suspension strut 3330093 on a Hyundai Veloster, ensure the upper mount type 12x1.25 matches the vehicle’s mounting hardware. Since the dust cover and B-stop are not included, inspect existing components for wear and replace if necessary. Proper torque specifications should be followed to maintain safety and performance. It is recommended to have a professional alignment performed after installation to optimize handling and tire wear.

Quality Assurance and Warranty

KYB manufactures the Excel-G suspension strut to meet or exceed OEM standards, ensuring durability and consistent performance. The internal rebound spring and gas-charged design contribute to long service life. Warranty coverage details should be confirmed with the retailer or KYB directly, as they may vary by region.
