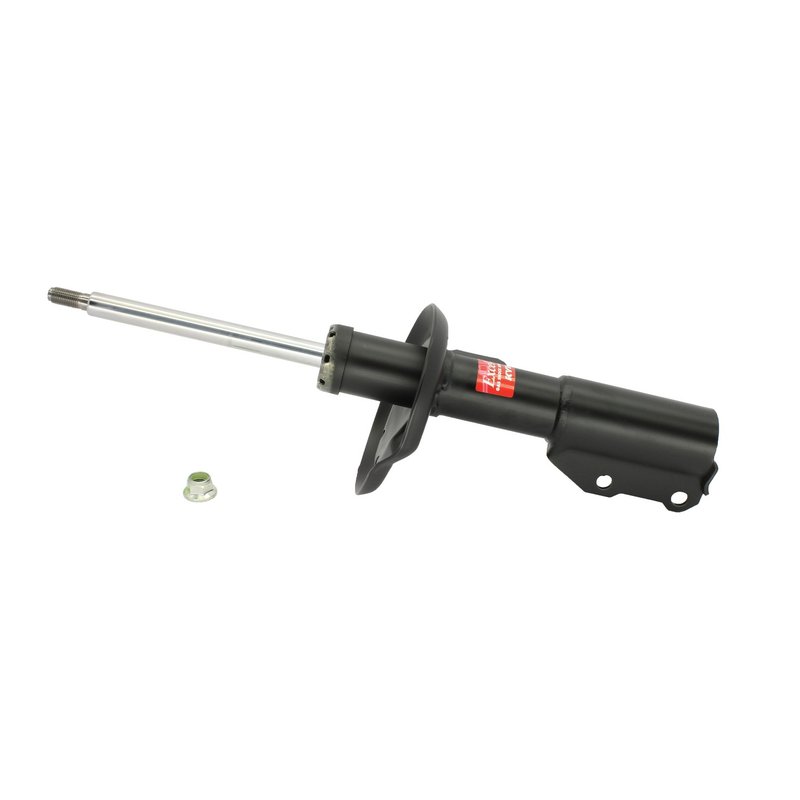

KYB 333461 Suspension Strut - Front Right
| Brand | KYB 141.40569 |
|---|---|
| Abutment Clips Included | Yes |
| Air Gap [orely] | 100.5mm |
| Axle Leading/Trailing [cntrc] | Trailing |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 10.000 |
| Bleeder Screw Thread Diameter | M10x1.0 |
| Bleeder Screw Thread Size | M10-1.00 |
| Bore Size(s) millimeters | 43 |
| Bracket # [cntrc] | na |
| Bracket Included | Yes |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | Yes |
| Bracket Required [cntrc] | Yes |
| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.42034 |
| Caliper Casting Material | Cast Iron |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | Akebono |
| Caliper Type | Floating |
| Car Position [cntrc] | Rear |
| Casting Number | 4315; |
| Color | Gray |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.12810 |
| Hardware Kit# [cntrc] | 117.40048 |
| Inlet Fitting Type | Banjo |
| Inlet Thread Diameter | 10.000 |
| Inlet Thread Diameter | M10x1.0 |
| Inlet Thread Size | M10-1.00 |
| Mount Thread Size [cntrc] mm | M12-1.25 |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | No |
| New or Ramanufactured [cntrc] | Remanufactured |
| New or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Pads Included | No |
| Piston Diameter | 1.693 |
| Piston Diameter | 43.000 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Published Bore Size [cntrc] | 43 |
| Root Core# [cntrc] | 40569 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
| Product line | Excel-G |
| Fits | —13 vehicles |
OE replacement. Restores original ride control and handling.
Twin-tube design. Nitrogen gas-charged for consistent damping performance.
Triple-lip fluid seal. Helps reduce the chance of oil and gas leaks.
Cross-references Gabriel G56809, Monroe Shocks & Struts 72203 and Saturn 22707166 for the same application. See all 3.
KYB Excel-G Front Right Strut for Saturn Ion
The KYB Excel-G 333461 is a front right suspension strut for 2003-2007 Saturn Ion models. Built as an OE-style replacement, it is calibrated to restore original ride control, steering response, and body movement without changing the vehicle’s designed handling balance.
Key Features
- KYB recommended OEM replacement strut for the Saturn Ion
- Restores designed control and handling for front right suspension service
- Triple-lip fluid seal helps reduce oil and gas leakage
- Vehicle-specific, hand-assembled damping valves manage tire contact and steering response
- Nitrogen gas-charged, twin-tube design
- Strong strut body and bracket construction helps minimize flex and maintain alignment
- Made in the USA
- Part number 333461
Product Details
KYB Excel-G is KYB’s OEA-style aftermarket line, built on the same OE assembly lines and using OE-quality components to restore original performance characteristics. For Saturn Ion owners looking for a front right suspension strut, 333461 is engineered to support stable braking, lane-change response, and consistent ride control. This part cross-references Monroe Shocks & Struts 72203 for the same application.
Compatible with 2003-2007 Saturn Ion, front right. The fitment notes specify replacement of the suspension strut and coil spring assembly according to the manufacturer’s instructions.
What This Strut Helps Address
- Excessive bouncing or poor damping at the front right corner
- Loose steering feel or delayed response during lane changes
- Uneven tire contact caused by worn suspension control
- Noise or vibration from a fatigued strut assembly
- Loss of alignment stability from flex in the strut body or bracket
Installation Notes and Tips
Install 333461 on the front right side only for the listed Saturn Ion applications. Follow the vehicle manufacturer’s instructions when replacing the suspension strut and coil spring assembly. KYB recommends replacing the strut mount, part number SM5483, to reduce noise and vibration, and using strut boot SB101 to help protect the new strut from dirt, debris, and salt.
Quality Assurance
KYB is a major OE supplier, and the Excel-G line is built to OE-quality standards on KYB production lines. The design uses application-specific damping calibration and quality sealing components to help restore factory-style suspension performance on the Saturn Ion.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Saturn | Ion | 2 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Saturn | Ion | 3 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2006 | Saturn | Ion | 2 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2006 | Saturn | Ion | 3 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2005 | Saturn | Ion | 1 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2005 | Saturn | Ion | 2 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2005 | Saturn | Ion | 3 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2004 | Saturn | Ion | 1 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2004 | Saturn | Ion | 2 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2004 | Saturn | Ion | 3 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2003 | Saturn | Ion | 1 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2003 | Saturn | Ion | 2 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2003 | Saturn | Ion | 3 | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
