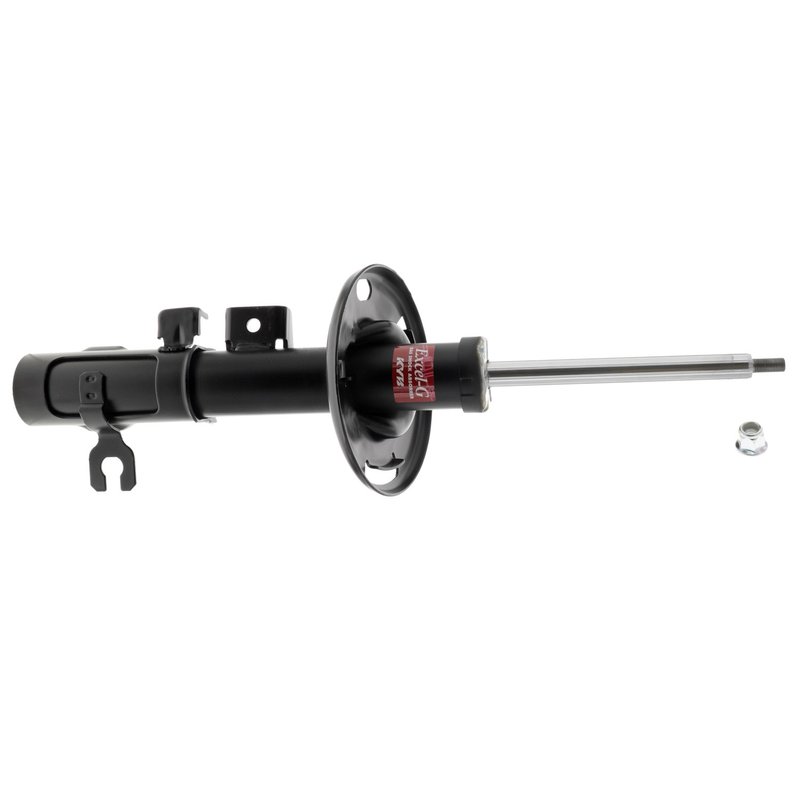

KYB 3340210 Suspension Strut - Front Left

Overview of KYB Excel-G Suspension Strut for Mazda CX-3

The KYB Excel-G Suspension Strut 3340210 is designed specifically for the Mazda CX-3, providing reliable suspension performance. This strut offers precise fitment and engineered dimensions to maintain your vehicle's handling and ride quality.

• Compressed Length: 13.7 inches
• Extended Length: 21.06 inches
• Stroke Length: 7.36 inches
• Upper Mount Type: 12x1.25
• R-stop Included: Yes
• Dust Cover and Internal Rebound Spring: Not included

Details on KYB Excel-G Product Line

The Excel-G line by KYB is engineered to restore original equipment ride quality and handling characteristics. This suspension strut is designed to meet or exceed OEM specifications, making it a suitable replacement for the Mazda CX-3. The Excel-G series focuses on delivering consistent damping performance without the need for additional components like dust covers or internal rebound springs, simplifying installation and maintenance.

Technical Description of Part Number 3340210

The KYB Excel-G Suspension Strut 3340210 features a compressed length of 13.7 inches and an extended length of 21.06 inches, providing a stroke length of 7.36 inches. The upper mount type is 12x1.25, ensuring compatibility with the Mazda CX-3 suspension assembly. This strut includes an R-stop but does not come with a dust cover or internal rebound spring, which aligns with the original equipment design for this vehicle model.

Common Applications and Problem Solving

• Restores proper suspension travel and damping for Mazda CX-3
• Addresses issues with worn or leaking struts causing poor ride quality
• Eliminates excessive body roll and instability during cornering
• Reduces noise and vibration from faulty suspension components
• Improves overall vehicle handling and safety

Installation Notes and Tips

When installing the KYB Excel-G Suspension Strut 3340210 on a Mazda CX-3, ensure the upper mount type 12x1.25 matches the vehicle’s specifications. Since this strut does not include a dust cover or internal rebound spring, reuse the original components if they are in good condition or replace them separately. Proper torque specifications should be followed to maintain suspension integrity and safety.

Quality Assurance and Warranty

KYB manufactures the Excel-G suspension struts to meet strict quality standards, ensuring durability and consistent performance. This part number 3340210 is backed by KYB’s warranty coverage, which protects against defects in materials and workmanship under normal use conditions. Refer to KYB’s official warranty policy for detailed terms.
