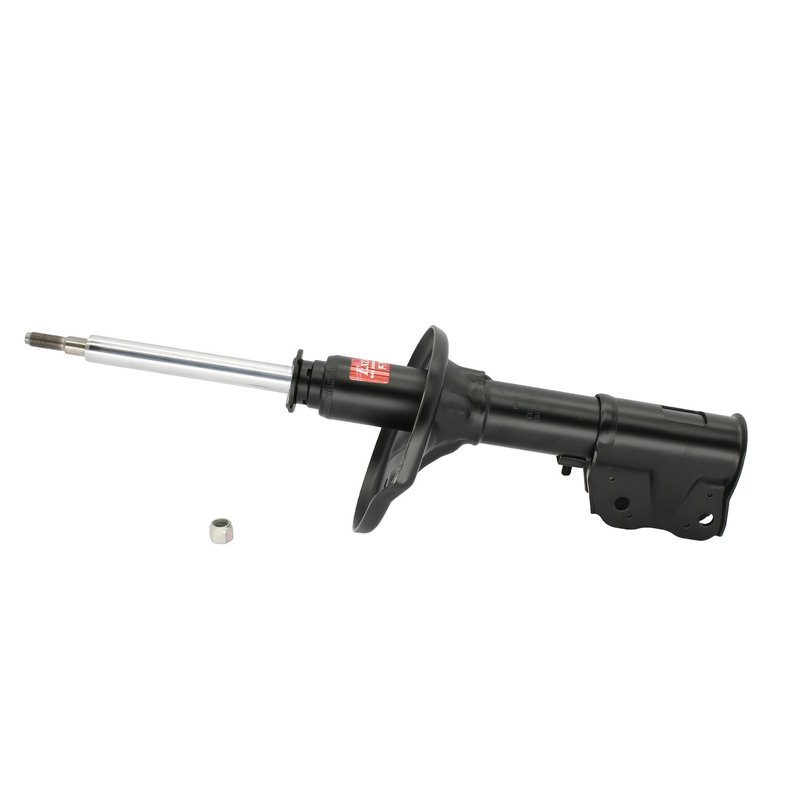

KYB 334141 Suspension Strut - Front

Overview of KYB Excel-G Suspension Strut 334141

The KYB Excel-G Suspension Strut 334141 is designed specifically for Hyundai Sonata models, providing reliable suspension performance. This strut offers precise dimensions and features engineered to restore original handling and control.

• Compressed Length: 13.94 inches
• Extended Length: 19.92 inches
• Stroke Length: 5.98 inches
• Upper Mount Type: 12x1.25
• R-stop included for controlled rebound
• Dust cover and internal rebound spring not included

About the KYB Excel-G Product Line

The Excel-G line from KYB is designed to provide a balance between performance and comfort by restoring original equipment ride quality. This suspension strut 334141 is part of the Excel-G series, which focuses on matching the original suspension specifications for vehicles like the Hyundai Sonata, ensuring consistent handling and stability without the need for additional modifications.

Detailed Product Description

This KYB Excel-G suspension strut 334141 features a compressed length of 13.94 inches and an extended length of 19.92 inches, with a stroke length of 5.98 inches, making it compatible with the suspension geometry of Hyundai Sonata models. The upper mount type is 12x1.25, which fits the vehicle’s mounting points precisely. The strut includes an R-stop to help control rebound movement, enhancing ride stability. Note that this part does not include a dust cover or internal rebound spring, which is consistent with the original equipment design.

Common Issues Addressed by This Suspension Strut

• Reduced vehicle stability and handling due to worn struts
• Excessive bouncing or poor shock absorption on rough roads
• Uneven tire wear caused by suspension misalignment
• Increased body roll during cornering
• Noise or vibration from damaged suspension components

Installation Notes and Tips

• Ensure compatibility with Hyundai Sonata model year before installation
• Use proper tools to remove and install the 12x1.25 upper mount
• Check suspension alignment after installation for optimal performance
• Inspect related suspension components for wear during replacement

Quality Assurance and Warranty

KYB Excel-G suspension struts are manufactured to meet or exceed original equipment standards. The part number 334141 undergoes rigorous quality control to ensure durability and performance. Warranty coverage details should be confirmed with the point of purchase or KYB directly.
