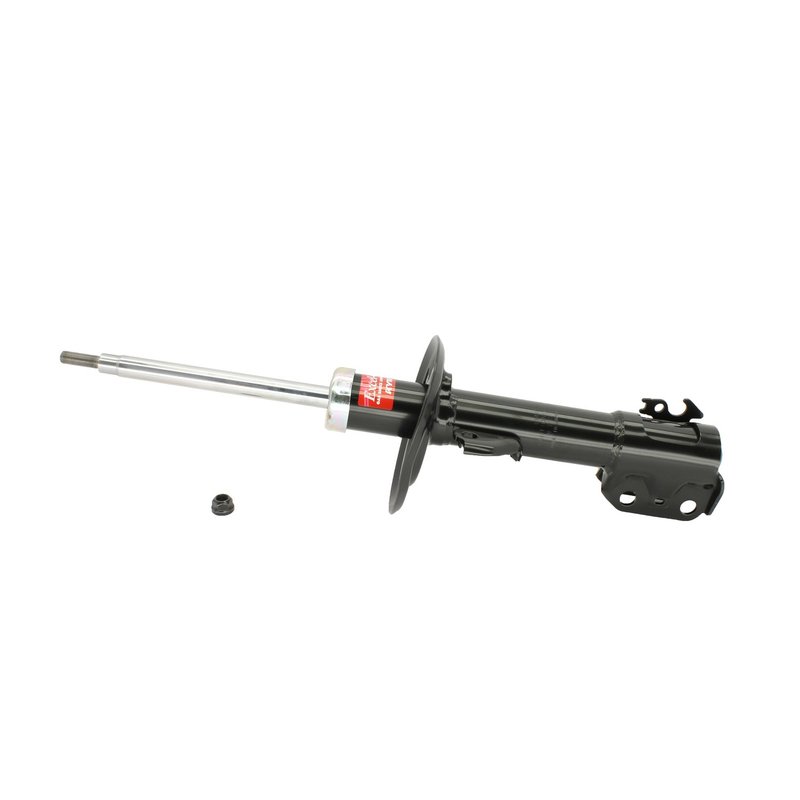

KYB 334472 Suspension Strut - Front Right

Overview of KYB Excel-G Suspension Strut 334472

The KYB Excel-G Suspension Strut 334472 is engineered for Toyota Prius C and Yaris models, providing reliable suspension performance. Designed to restore original handling and control, this strut meets precise fitment specifications for these vehicles.

• Compressed length: 15.45 inches
• Extended length: 21.58 inches
• Stroke length: 6.13 inches
• Upper mount type: 12x1.25
• R-stop included, B-stop not included
• No dust cover or internal rebound spring

Detailed Product Features and Specifications

This KYB Excel-G strut features a compressed length of 15.45 inches and an extended length of 21.58 inches, with a stroke length of 6.13 inches, ensuring proper suspension travel for Toyota Prius C and Yaris models. The upper mount type is 12x1.25, matching factory specifications for secure installation. The strut includes an R-stop to prevent overextension but does not include a B-stop, dust cover, or internal rebound spring. These specifications contribute to consistent damping performance and vehicle stability.

About the KYB Excel-G Product Line

The Excel-G line by KYB is designed to restore original equipment (OE) ride quality and handling characteristics. This product line focuses on matching the factory specifications of suspension components, making it suitable for drivers seeking to maintain the original driving dynamics of their Toyota Prius C or Yaris. The Excel-G struts provide a balance of comfort and control without altering the vehicle’s suspension geometry.

Common Applications and Problem Solving

• Restores factory ride quality and handling on Toyota Prius C and Yaris
• Replaces worn or leaking suspension struts causing poor vehicle control
• Eliminates excessive bouncing or bottoming out during driving
• Improves stability and steering response on uneven road surfaces
• Addresses suspension noise or vibration related to damaged struts

Installation Notes and Tips

Installation of the KYB Excel-G Suspension Strut 334472 requires proper tools and mechanical knowledge. Ensure the vehicle is securely lifted and supported before removing the old strut. Verify the upper mount type 12x1.25 matches the vehicle’s mounting hardware. Since this strut does not include a dust cover or internal rebound spring, inspect and replace these components separately if necessary. After installation, a wheel alignment is recommended to maintain proper suspension geometry and tire wear.

Quality Assurance and Warranty

KYB manufactures the Excel-G strut to meet or exceed original equipment standards, ensuring durability and consistent performance. The part number 334472 is backed by KYB’s quality control processes. Warranty coverage details should be confirmed with the point of purchase or KYB directly, as warranty terms may vary.
