OE Quality
60-Day Returns

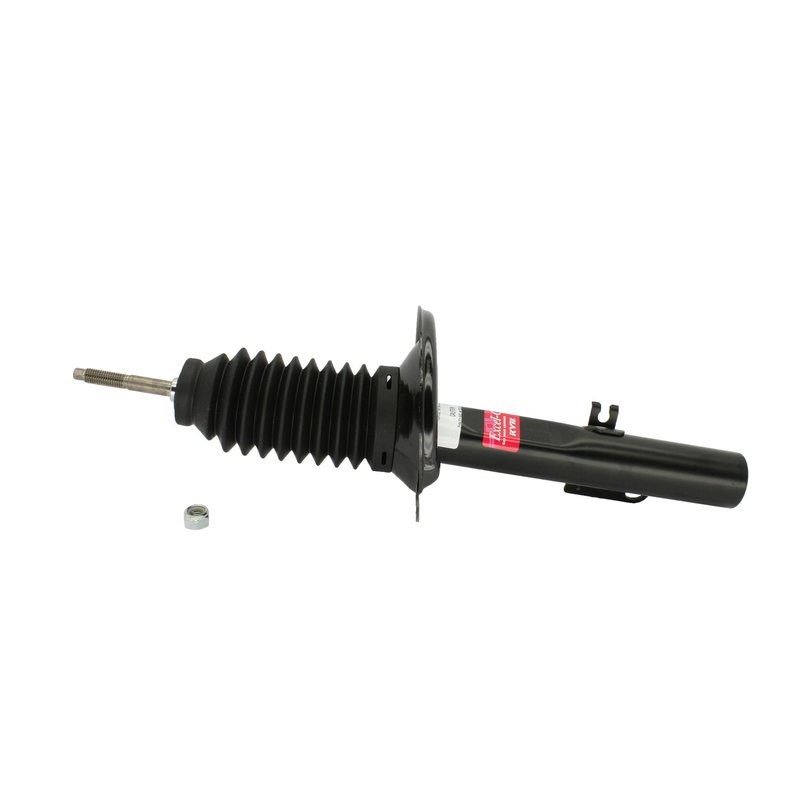

KYB 334641 Suspension Strut - Front Left
Overview of KYB Excel-G Suspension Strut 334641
The KYB Excel-G Suspension Strut 334641 is designed specifically for Ford Five Hundred and Mercury Montego models. This strut offers precise fitment and reliable performance to restore your vehicle's original handling and ride quality.
- Compressed Length: 11.11 inches
- Extended Length: 17.29 inches
- Stroke Length: 6.18 inches
- Upper Mount Type: 14x2.00
- Includes Dust Cover for protection
- Equipped with B-stop and R-stop for controlled travel
- No internal rebound spring
About the KYB Excel-G Product Line
The Excel-G line from KYB is engineered to provide a balance between comfort and control by restoring original equipment ride quality. This suspension strut is part of the Excel-G series, which is designed to replace worn factory shocks and struts with a direct-fit component that meets or exceeds OEM specifications. The Excel-G struts are built to improve handling and stability for vehicles like the Ford Five Hundred and Mercury Montego.
Detailed Product Description
The KYB Excel-G Suspension Strut 334641 features a compressed length of 11.11 inches and an extended length of 17.29 inches, providing a stroke length of 6.18 inches to accommodate suspension travel. The upper mount type is 14x2.00, ensuring proper fitment and secure installation. This strut includes a dust cover to protect internal components from dirt and debris, extending the service life of the part. Additionally, the strut is equipped with both B-stop and R-stop features to control compression and rebound travel, enhancing ride stability. Note that this model does not include an internal rebound spring, which is typical for this design.
Common Applications and Problem Solving
- Restores original ride comfort and handling for Ford Five Hundred and Mercury Montego
- Eliminates excessive bouncing or bottoming out during driving
- Reduces uneven tire wear caused by worn suspension components
- Improves vehicle stability and control on rough or uneven roads
- Addresses noise or vibration issues related to damaged struts
Installation Notes and Tips
- Ensure compatibility with Ford Five Hundred or Mercury Montego before installation
- Inspect upper mount and related suspension components for wear during replacement
- Use proper tools to avoid damage to the 14x2.00 upper mount
- Check alignment after installation to maintain proper handling
- Follow manufacturer torque specifications for mounting hardware
Quality Assurance and Warranty
KYB Excel-G struts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The inclusion of dust covers and travel stops helps protect the strut from premature wear. While specific warranty details for part number 334641 should be confirmed with the supplier, KYB typically offers a limited warranty covering defects in materials and workmanship.
| Brand | National |
|---|---|
| Part Number | 8871 |
| Position | Excel-G |
| Flanged Outside Diameter (Inch) | 2.760 |
| Flanged Outside Diameter (MM) | 70.104 |
| Housing Bore (Inch) | 2.562 |
| Housing Bore (MM) | 65.070 |
| Inside Diameter | 2.000 |
| Inside Diameter | 50.800 |
| Material | Nitrile |
| Outside Diameter | 2.566 |
| Outside Diameter | 65.180 |
| Outside Diameter (Inch) | 2.566 |
| Outside Diameter (mm) | 65.180 |
| Part Description | Oil Seal |
| Redicoat | Yes |
| Series | 8000 |
| Shaft (Inch) | 2.000 |
| Shaft (MM) | 50.800 |
| Type | 286 |
| Unit of Dimension | Inch |
| Width (Inch) | 0.220 |
| Width (mm) | 5.590 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Ford | Five Hundred | FWD | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Mercury | Montego | FWD | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2006 | Ford | Five Hundred | FWD | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2006 | Mercury | Montego | FWD | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2005 | Ford | Five Hundred | FWD | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2005 | Mercury | Montego | FWD | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
