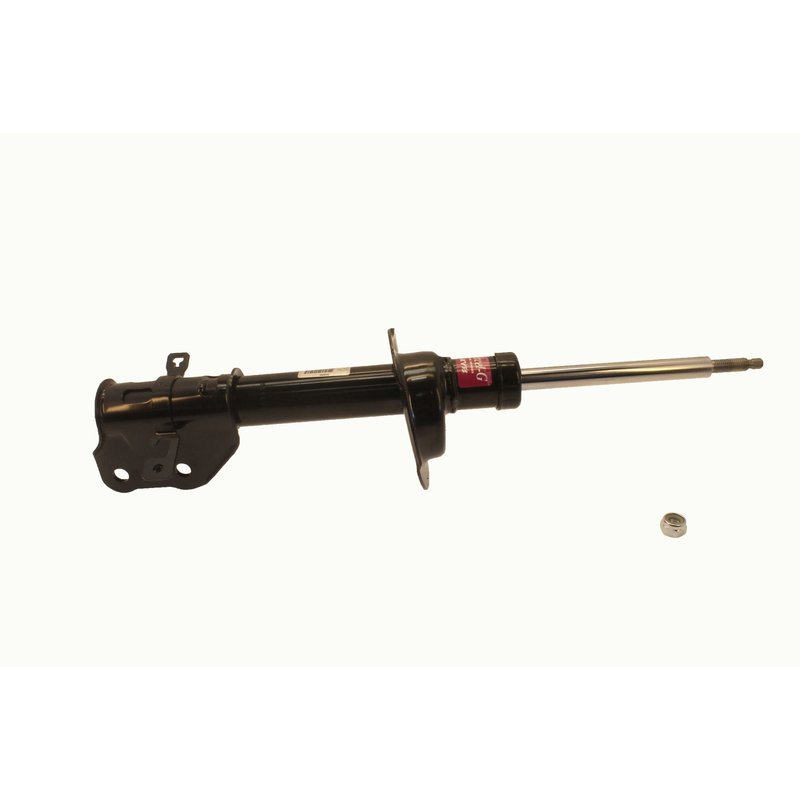

KYB 334693 Suspension Strut - Front Left

Overview of KYB Excel-G Suspension Strut 334693

The KYB Excel-G Suspension Strut 334693 is engineered for Ford Edge and Lincoln MKX models, providing reliable suspension performance. Designed to restore original handling and control, this strut meets OEM specifications for a precise fit and function.

• Compressed length: 13.96 inches
• Extended length: 21.26 inches
• Stroke length: 7.3 inches
• Upper mount type: 14x2.00
• R-stop included for controlled rebound
• No dust cover or internal rebound spring included

Features of the KYB Excel-G Strut

The Excel-G line by KYB is designed to provide a balance between comfort and performance by restoring original equipment ride quality. This strut is built with precision to match the exact dimensions required for Ford Edge and Lincoln MKX vehicles, ensuring proper suspension geometry and handling characteristics.

Technical Details and Specifications

The KYB Excel-G Suspension Strut 334693 features a compressed length of 13.96 inches and an extended length of 21.26 inches, with a stroke length of 7.3 inches. The upper mount type is specified as 14x2.00, which is critical for proper installation and fitment. This strut includes an R-stop to control rebound travel, enhancing vehicle stability during operation. It does not include a dust cover or internal rebound spring, which aligns with the original equipment design for these specific vehicle models.

Applications and Problem Solving

• Restores factory ride quality and handling for Ford Edge and Lincoln MKX
• Addresses issues with worn or leaking suspension struts
• Improves vehicle stability and control during braking and cornering
• Reduces excessive body roll and suspension noise
• Helps maintain proper tire contact with the road surface

Installation Notes and Tips

Installation of the KYB Excel-G Suspension Strut 334693 should be performed by a qualified technician familiar with Ford Edge and Lincoln MKX suspension systems. Ensure the upper mount type 14x2.00 matches the vehicle’s specifications. Since this strut does not include a dust cover, inspect the existing dust boot for wear and replace if necessary. Proper torque specifications should be followed to maintain suspension integrity and safety.

Quality Assurance and Warranty

KYB manufactures the Excel-G line to meet or exceed OEM standards, ensuring durability and consistent performance. The part number 334693 is backed by KYB’s quality control processes. Warranty coverage details should be confirmed with the point of purchase or KYB directly, as warranty terms may vary.
