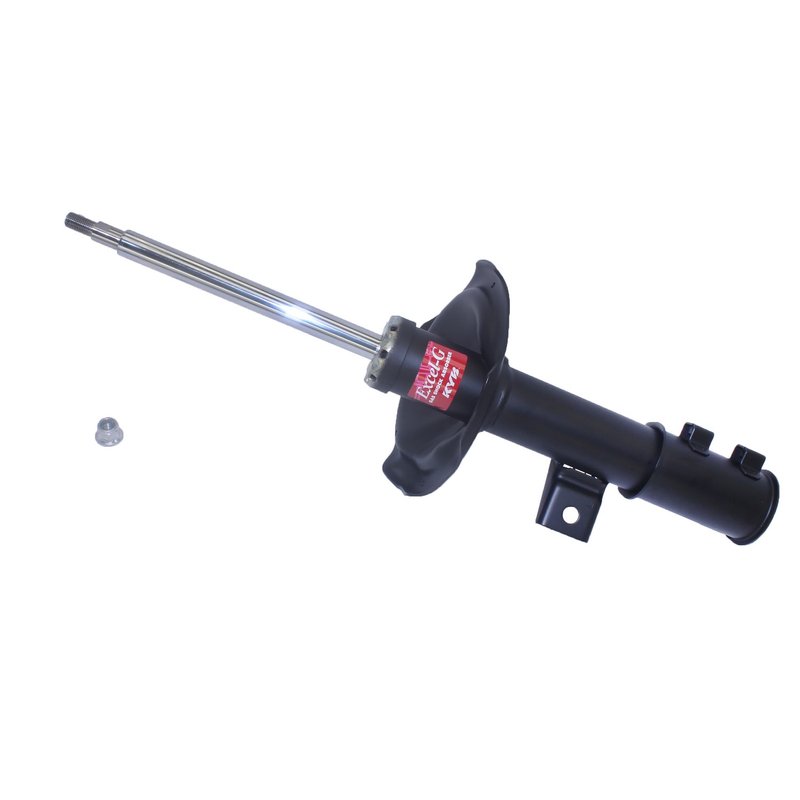

KYB 338023 Suspension Strut - Front Left
| Brand | KYB 120.65129 |
|---|---|
| 150.00 | |
| ABS Tone Ring Included | Yes |
| Bearings Included | No |
| Bolt Hole Quantity | 7 |
| Bolt Thread Pitch | 2.000 |
| Center Hole Diameter | 3.413 |
| Center Hole Diameter | 86.700 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Discard Thickness | 1.122 |
| Discard Thickness | 028.50 |
| Discard Thickness | 28.500 |
| Hat Finish | Coated |
| Height | 091.90 |
| Hub Hole/Whl Reg mm | 086.70 |
| Inner Bearing # [cntrc] | 124.65903 |
| Misc Holes [cntrc] | 0 |
| Mounting Bolt Hole Circle Diameter | 5.906 |
| Mounting Bolt Hole Circle Diameter | 150.000 |
| Mounting Type | Hub & Rotor |
| Nominal Thickness | 1.181 |
| Nominal Thickness | 030.00 |
| Nominal Thickness | 30.000 |
| Notes [cntrc] | Hub & Rotor Kit |
| Outside Diameter | 12.992 |
| Outside Diameter | 330.00 |
| Outside Diameter | 330.000 |
| Overall Height | 3.618 |
| Overall Height | 91.900 |
| Solid Or Vented Type Rotor | Vented |
| Stud Thread Diameter | 14.000 |
| Stud/Lug Hole Quantity | 7 |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 19.550 |
| Weight [cntrc] lbs | 43.000 |
| Product line | Excel-G |
| Fits | —13 vehicles |
OE replacement choice. Restores original ride control, stability, and handling.
Nitrogen gas-charged design. Twin-tube construction helps deliver consistent damping performance.
Triple-lip fluid seal. Helps reduce the chance of oil and gas leaks.
Cross-references Gabriel G52156, Hyundai 546512H100 and Monroe Shocks & Struts 72306 for the same application. See all 3.
KYB Excel-G Front Left Strut for Hyundai Elantra
The KYB Excel-G 338023 is a front left suspension strut for select Hyundai Elantra models. Built to restore original ride control and handling, it is a direct OE-style replacement for 2007-2010 Hyundai Elantra applications listed below.
Key Features
- OE-style replacement for Asian vehicles, including Hyundai applications
- Restores designed steering response, stability, and body control
- Nitrogen gas-charged twin-tube construction
- Triple-lip fluid seal helps reduce oil and gas leakage
- Vehicle-specific, hand-assembled damping valves manage tire contact and body movement
- Strong strut body and bracket design helps maintain alignment under load
- Made in the USA
- Part number 338023
Product Line Details
KYB Excel-G is KYB’s OE replacement line for drivers who want factory-style suspension behavior rather than a changed ride feel. This strut is built on KYB OE assembly lines using OE-quality components and calibrated to return the vehicle’s original suspension performance. The 338023 is part of that Excel-G line and is engineered for consistent damping on the Hyundai Elantra front left position.
Detailed Description
Compatible with 2009-2010 Hyundai Elantra, front left, and 2007-2008 Hyundai Elantra, front left, the KYB Excel-G 338023 is designed to restore ride control, lane-change response, stopping stability, and handling balance. It uses a twin-tube, nitrogen gas-charged design with a triple-lip seal and in-house calibrated valves to help keep tire contact and suspension movement within the vehicle’s intended range. This part cross-references Monroe Shocks & Struts (e.g., 72306) for the same application.
Common Issues This Strut Can Address
- Excessive bouncing or oscillation after bumps
- Loose or delayed steering response
- Nose dive during braking
- Uneven tire contact caused by worn damping
- Reduced stability during lane changes and cornering
Installation Notes and Tips
Fits 2009-2010 Hyundai Elantra, front left, recommended OEM replacement; and fits 2007-2008 Hyundai Elantra, front left, with suspension strut and coil spring assembly replacement performed according to the manufacturer’s instructions. Verify the upper mount thread specification, compressed and extended length, and position before installation. For added protection, KYB recommends strut boot SB101.
Quality Assurance
KYB supplies shocks and struts to new vehicle manufacturers, and Excel-G is produced to OE-quality standards on KYB assembly lines. The design focuses on restoring original suspension performance for the Hyundai Elantra rather than altering it.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Hyundai | Elantra | Blue | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2010 | Hyundai | Elantra | GL | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2010 | Hyundai | Elantra | GLS | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2010 | Hyundai | Elantra | L | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2010 | Hyundai | Elantra | Limited | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2010 | Hyundai | Elantra | SE | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2009 | Hyundai | Elantra | GL | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2009 | Hyundai | Elantra | GLS | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2009 | Hyundai | Elantra | L | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2009 | Hyundai | Elantra | Limited | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2009 | Hyundai | Elantra | SE | Front Left | Recommended OEM Replacement; (Exc. Sport Suspension); Excel-G |
| 2008 | Hyundai | Elantra | — | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Hyundai | Elantra | — | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
