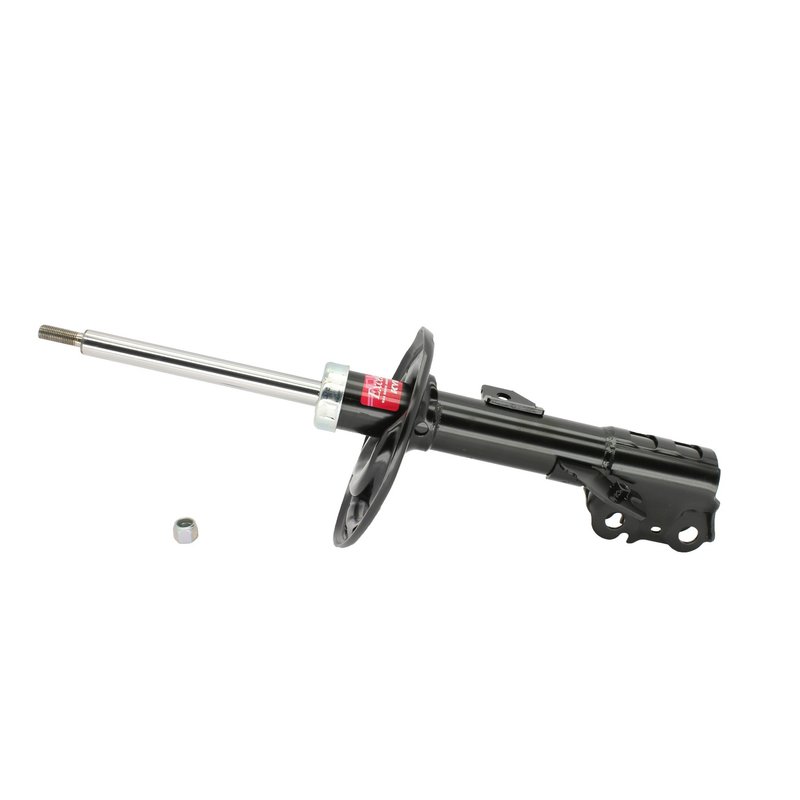

KYB 339023 Suspension Strut - Front Right
| Brand | KYB 711-255E |
|---|---|
| Bolt Grade | Grade 5 |
| Color | Red |
| Flanged | No |
| Grade Type | Regular |
| Head Style | Spline Drive Acorn Nut |
| Lock Design Pattern | External |
| Lug Length | 1.39 |
| Lug Outside Diameter | 0.78 |
| Material | Steel |
| Package Contents | 20 Locks; 1 Key |
| SAE or Metric | SAE |
| Seat Style | Conical Seat - 60 deg |
| Thread Direction | Clockwise |
| Thread Pitch | 0.5 |
| Thread Type | Fine |
| Washers Included | No |
| Wheel Lock Key Included | Yes |
| Wheel Lock Key Part Number | 711-040.1 |
| Wheel Lock Type | Spline Drive |
| Wrench Size Required | 19 mm; 21 mm |
| Product line | Excel-G |
| Fits | —17 vehicles |
OE replacement choice. Restores original ride control and handling.
Twin-tube design. Nitrogen gas-charged for consistent damping performance.
OE-quality components. Made on KYB OE assembly lines for original-spec calibration.
Cross-references Gabriel G56889, Lexus 4851080323 and Lexus 4851080456 for the same application. See all 6.
KYB Excel-G Front Right Strut for Camry and ES350
KYB Excel-G strut 339023 is an OE-style suspension strut for the front right position on select Toyota Camry and Lexus ES350 models. It is built to restore original ride control, steering response, and body stability without changing the vehicle’s designed suspension behavior.
Key Features
- OE replacement choice for Asian-make vehicles
- Restores designed control and handling on Toyota Camry and Lexus ES350 applications
- Nitrogen gas-charged, twin-tube construction
- Triple-lip fluid seal helps reduce oil and gas leakage
- Vehicle-specific, hand-assembled damping valves manage tire contact and body movement
- Strong strut body and bracket design helps minimize flex and maintain alignment
- Made in USA
- R-stop included; dust cover, internal rebound spring, and B-stop are not included
Product Details
The KYB Excel-G line is engineered to match original suspension performance using OE-quality components and KYB’s OE assembly-line manufacturing process. Part number 339023 is calibrated for the front right suspension position and is a direct-fit replacement for drivers who want factory-style ride control on a 2007-2011 Toyota Camry or a 2007-2009 Lexus ES350. This part cross-references Monroe Shocks & Struts 72307 for the same application.
What This Strut Helps Address
- Excessive bounce or float after bumps
- Reduced steering response during lane changes
- Uneven tire contact caused by worn damping
- Body movement that affects braking stability
- Suspension noise or handling changes from a worn front right strut
Installation Notes
Fits 2007-2011 Toyota Camry, front right. Fits 2007-2008 Lexus ES350, front right. Fits 2009 Lexus ES350, front right. Replace the suspension strut and coil spring assembly according to the manufacturer’s instructions. Verify alignment after installation and confirm the upper mount thread size is 14x1.50 before assembly.
Quality Assurance
KYB is a major OE supplier, and the Excel-G line is built on the same KYB assembly lines used for original equipment production. Part number 339023 is designed to restore factory-style suspension performance for the specified Toyota Camry and Lexus ES350 applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Toyota | Camry | Hybrid | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2010 | Toyota | Camry | Hybrid | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2009 | Lexus | ES350 | — | Front Right | Recommended OEM Replacement; To 7/2009; Excel-G |
| 2009 | Toyota | Camry | Base | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2009 | Toyota | Camry | Hybrid | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2009 | Toyota | Camry | LE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2009 | Toyota | Camry | XLE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Lexus | ES350 | — | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Toyota | Camry | CE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Toyota | Camry | Hybrid | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Toyota | Camry | LE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Toyota | Camry | XLE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Lexus | ES350 | — | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Toyota | Camry | CE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Toyota | Camry | Hybrid | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Toyota | Camry | LE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Toyota | Camry | XLE | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
