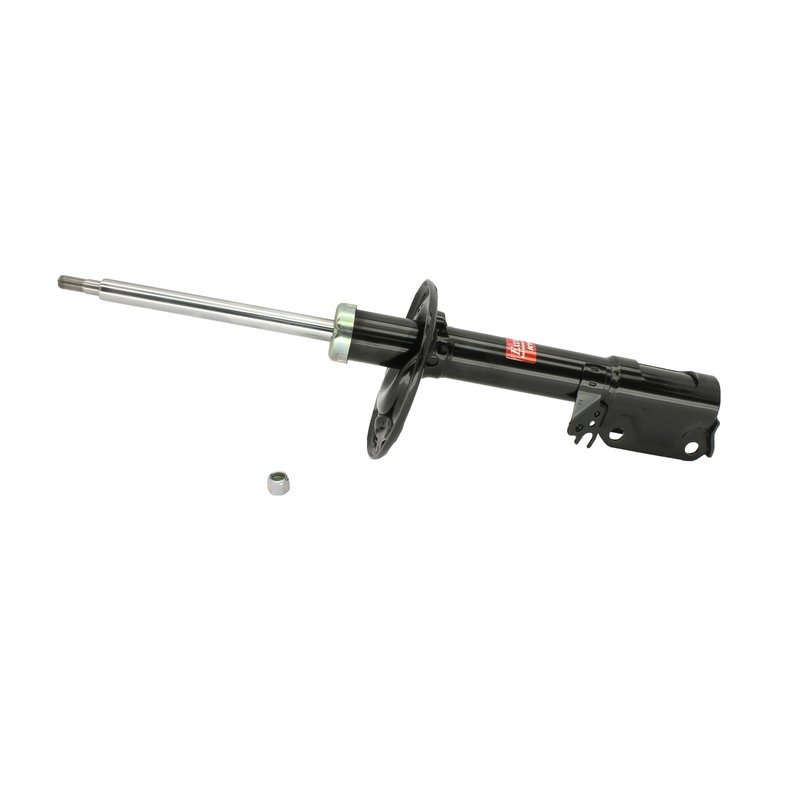

KYB 339214 Suspension Strut - Rear Right

KYB Excel-G Rear Right Strut for Toyota Solara

The KYB Excel-G 339214 is a suspension strut for the rear right position on select Toyota Solara models. Built to restore original ride control and handling, it uses OE-style construction and vehicle-specific damping to help return the suspension to factory-like response.

Excel-G Product Line Details

KYB Excel-G is the brand’s OE replacement line for drivers who want original suspension behavior rather than a changed ride feel. This line is assembled on KYB OE production lines and uses nitrogen gas-charged, twin-tube construction with OE-quality components calibrated for designed performance.

Key Features

• Fits 2006 Toyota Solara, rear right, recommended OEM replacement from July 2006
• Fits 2007-2008 Toyota Solara, rear right, replace suspension strut and coil spring assembly according to manufacturer instructions
• OE-style replacement choice for Asian vehicles
• Vehicle-specific, hand-assembled damping valves help manage tire contact, steering response, and body movement
• Triple-lip fluid seal helps reduce oil and gas leakage
• Strong strut body and bracket design helps minimize flex and maintain alignment
• R-stop design is included; dust cover, internal rebound spring, and B-stop are not listed

Detailed Description

KYB 339214 is engineered for the Toyota Solara rear right suspension position and is intended to restore the vehicle’s original ride control, stability, stopping response, lane-change behavior, and handling balance. The Excel-G line uses OE-quality components and calibrated damping to match the suspension’s original operating characteristics. This part cross-references Gabriel G56729 for the same application.

Interchange references also include Toyota 48530A9620, 48530A9630, 48530A9660, 48530A9670, and 4853009P30. The compressed length is 16.44 inches, extended length is 24.35 inches, and stroke length is 7.91 inches. Upper mount type is 14X1.50.

What It Helps Address

• Excessive rear suspension bounce or float
• Reduced cornering stability on a Toyota Solara
• Poor lane-change response or delayed body control
• Uneven tire contact caused by worn damping
• Noise or vibration related to worn strut components

Installation Notes

Compatible with 2006 Toyota Solara rear right and 2007-2008 Toyota Solara rear right applications only. Follow the manufacturer’s instructions when replacing the suspension strut and coil spring assembly. KYB recommends replacing strut mounts, part number SM5722, to reduce the chance of noise and vibration. Verify mount thread size and suspension position before installation.

Quality Assurance

KYB is a major OE supplier of shocks and struts, and Excel-G is built on the same KYB OE assembly lines using OE-quality components. The design focuses on restoring original suspension performance and supporting proper operation of vehicle systems that depend on suspension, brakes, and tires working as engineered.
