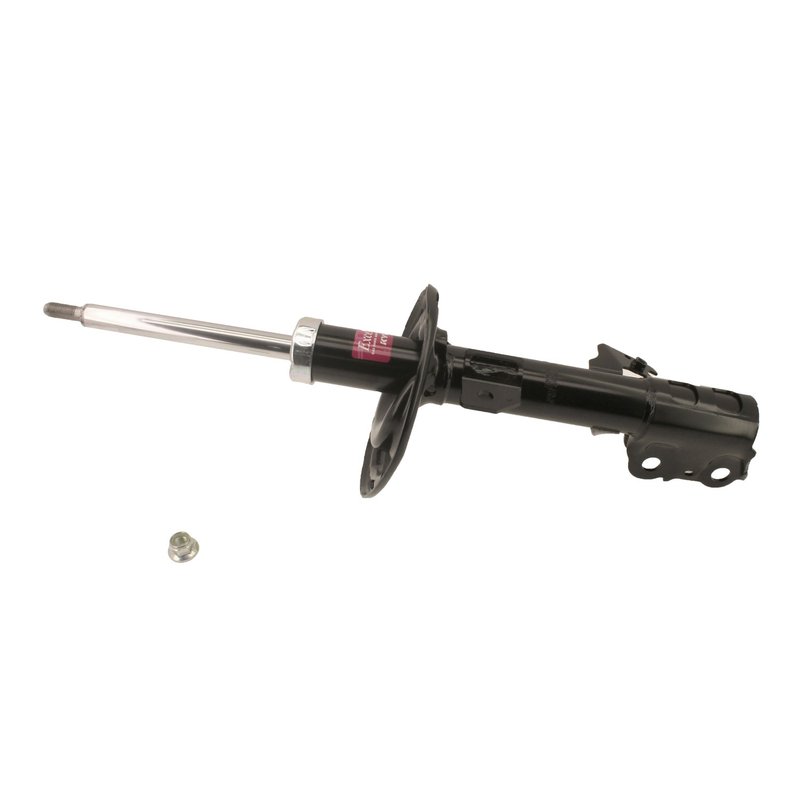

KYB 339295 Suspension Strut - Front Left
| Brand | KYB 339295 |
|---|---|
| Position | Front Left |
| Compressed Length | 17.3 |
| Extended Length | 23.54 |
| Stroke Length | 6.24 |
| Upper Mount Type | 14x1.50 |
| Dust Cover Included | N |
| Internal Rebound Spring | N |
| B-stop | N |
| R-stop | Y |
| Product line | Excel-G |
| Fits | Toyota · 7 vehicles |
OE replacement choice. Restores original ride control, stability, and handling.
Twin-tube design. Nitrogen gas-charged for consistent suspension performance.
Triple-lip fluid seal. Helps reduce oil and gas leakage over time.
Cross-references Monroe Shocks & Struts 73050, Toyota 4852009S80 and Toyota 4852009T10 for the same application. See all 3.
KYB Excel-G Front Left Strut for Toyota Sienna
KYB Excel-G part number 339295 is a front left suspension strut for 2011-2014 Toyota Sienna models. It is built to restore original ride control, steering response, and handling balance for drivers replacing a worn OE-style strut.
Key Features
- OE-style replacement choice for Asian mini-vans
- Restores the designed control and handling of the Toyota Sienna
- Nitrogen gas-charged, twin-tube construction
- Triple-lip fluid seal helps reduce oil and gas leakage
- Vehicle-specific, hand-assembled damping valves manage tire contact, steering response, and body movement
- Made in the USA
- Strong strut body and bracket design helps minimize flex and maintain alignment
- R-stop internal rebound control is included
Product Details
The KYB Excel-G line is engineered as an Original Equipment for the Aftermarket replacement, using OE-quality components and calibration focused on restoring factory-designed performance rather than changing it. For Toyota Sienna front suspension service, 339295 is a direct-fit strut option for maintaining stable braking feel, lane-change response, and consistent handling. This part cross-references Monroe Shocks & Struts 73050 for the same application.
Common Problems This Strut Can Address
- Excessive bouncing or poor body control over bumps
- Reduced steering response during lane changes
- Uneven tire contact caused by worn damping performance
- Front-end instability under braking or cornering
- Noise or handling changes associated with a worn front left strut
Installation Notes and Tips
Fits 2011-2014 Toyota Sienna, front left. Replace the suspension strut and coil spring assembly according to the manufacturer’s instructions. Verify upper mount thread size 14X1.50 and confirm compressed length 17.3, extended length 23.54, and stroke length 6.24 before installation. This application uses a front left position only.
Quality Assurance
KYB supplies shocks and struts to new vehicle manufacturers, and the Excel-G line is produced on KYB OE assembly lines with OE-quality components. The design focus is restoring original ride control and helping electronic safety systems operate as the vehicle manufacturer intended.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Toyota | Sienna | AWD | — | — | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2013 | Toyota | Sienna | AWD | — | — | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2013 | Toyota | Sienna | FWD | 2.7L | L4 | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2012 | Toyota | Sienna | AWD | — | — | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2012 | Toyota | Sienna | FWD | 2.7L | L4 | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2011 | Toyota | Sienna | AWD | — | — | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2011 | Toyota | Sienna | FWD | 2.7L | L4 | Front Left | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
