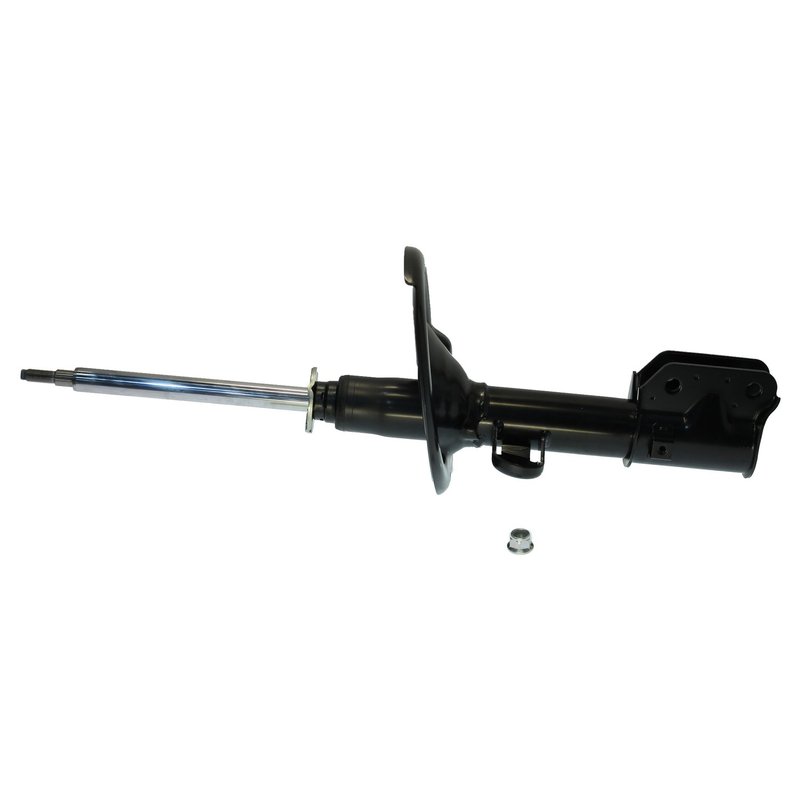

KYB 339309 Suspension Strut - Front Right
| Brand | KYB PA103 |
|---|---|
| Bearing Outside Diameter | 30 |
| Bearing Type | Ball/Ball |
| Gasket Or Seal Included | YES |
| Housing Material | Aluminium |
| Impeller Material | Cast Iron |
| Impeller Outside Diameter | 72.5 |
| Impeller Vane Quantity | 5 |
| New Or Remanufactured | NEW |
| Package Contents | Water Pump, O-ring |
| Pulley Included | YES |
| Pulley Width | 20.5 |
| Product line | Excel-G |
| Fits | —12 vehicles |
OE replacement choice. Restores original ride control, stability, and handling.
Twin-tube design. Nitrogen gas-charged for consistent damping performance.
Triple-lip fluid seal. Helps reduce the chance of oil and gas leaks.
Cross-references Hyundai 546614D100, Hyundai 546614D101 and Kia 546614D100 for the same application. See all 5.
KYB Excel-G Front Right Strut
KYB Excel-G strut 339309 is a front right suspension strut for select Hyundai and Kia minivans and crossovers. It is built to restore original ride control, steering response, and body movement characteristics for daily driving.
Key Features
- OE-style replacement for Asian SUVs and crossovers
- Nitrogen gas-charged twin-tube design
- Triple-lip fluid seal helps reduce oil and gas leakage
- Vehicle-specific, hand-assembled damping valves manage tire contact and steering response
- Strong strut body and bracket design helps minimize flex and maintain alignment
- Made in USA
- R-stop design included
Product Details
The KYB Excel-G line is engineered to return the suspension to its original operating characteristics rather than change the vehicle’s feel. For applications such as the Hyundai Entourage and Kia Sedona, part number 339309 is calibrated to support controlled braking, lane changes, and stable handling while working with the vehicle’s suspension geometry. This part cross-references Monroe Shocks & Struts 72917 for the same application.
Fits 2006-2012 Kia Sedona, front right. Fits 2007-2008 Hyundai Entourage, front right. Fits 2009-2010 Hyundai Entourage, front right. Fits 2014 Kia Sedona, front right.
What It Helps Address
- Excessive bounce or float from a worn front strut
- Reduced steering response during lane changes
- Uneven tire contact caused by weak damping control
- Noise and vibration from aged suspension components
- Loss of ride stability during braking and cornering
Installation Notes
Install according to the manufacturer’s instructions and replace the suspension strut and coil spring assembly as specified for the vehicle. KYB recommends new strut mounts, part number SM5539, to reduce noise and vibration, and a KYB strut boot, part number SB105, to help protect the strut from dirt, debris, and road salt. Verify fitment by year, make, model, and front right position before installation.
Quality Assurance
KYB is a major OE supplier, and Excel-G is produced on KYB OE assembly lines using OE-quality components. The design is calibrated to restore original performance characteristics for the Hyundai Entourage and Kia Sedona applications listed above.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2012 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2011 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2010 | Hyundai | Entourage | Front Right | Recommended OEM Replacement; Excel-G |
| 2010 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2009 | Hyundai | Entourage | Front Right | Recommended OEM Replacement; Excel-G |
| 2009 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Hyundai | Entourage | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2008 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Hyundai | Entourage | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2006 | Kia | Sedona | Front Right | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
