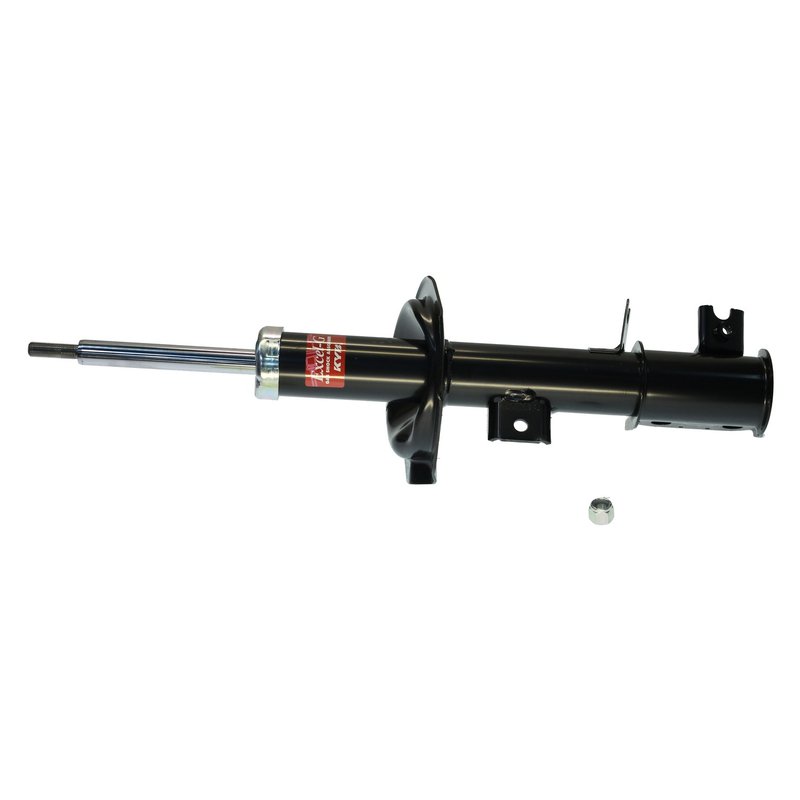

KYB 339364 Suspension Strut - Front Left

Overview of KYB Excel-G Suspension Strut for Suzuki SX4

The KYB Excel-G suspension strut, part number 339364, is designed specifically for the Suzuki SX4. This strut offers reliable performance by restoring original handling and control, making it a practical replacement for worn or damaged suspension components.

• Compressed length: 15.94 inches
• Extended length: 20.78 inches
• Stroke length: 4.84 inches
• Upper mount type: 12x1.25
• Internal rebound spring included
• Right stop (R-stop) included; no bottom stop (B-stop)
• No dust cover included

Features and Specifications of KYB 339364 Strut

This KYB Excel-G suspension strut features a compressed length of 15.94 inches and an extended length of 20.78 inches, providing a stroke length of 4.84 inches. The upper mount type is 12x1.25, ensuring proper fitment and secure installation on the Suzuki SX4. The strut includes an internal rebound spring to help maintain consistent damping performance and vehicle stability. While it does not come with a dust cover, it is equipped with a right stop (R-stop) but lacks a bottom stop (B-stop), which is important to consider during installation and maintenance.

About the KYB Excel-G Product Line

The Excel-G line from KYB is engineered to restore the original equipment ride quality and handling characteristics of your vehicle. Designed as a direct replacement for factory struts, the Excel-G series combines reliable hydraulic valving with an internal rebound spring to reduce noise and vibration. This makes the Excel-G suspension strut a suitable choice for Suzuki SX4 owners seeking to maintain factory-level suspension performance without extensive modifications.

Common Applications and Problem Solving

• Restores proper suspension travel and ride height on Suzuki SX4 models
• Improves vehicle handling and stability by replacing worn or leaking struts
• Reduces excessive bouncing and body roll during cornering
• Addresses uneven tire wear caused by faulty suspension components
• Eliminates noise and vibration associated with damaged struts

Installation Notes and Tips

When installing the KYB Excel-G suspension strut 339364 on a Suzuki SX4, ensure the upper mount type 12x1.25 matches the vehicle’s specifications. Since this strut does not include a dust cover, inspect the existing dust boot for wear and replace if necessary to protect the strut shaft. Proper torque specifications should be followed to secure the strut assembly. It is recommended to have a professional alignment performed after installation to maintain optimal handling and tire wear.

Quality Assurance and Warranty

KYB suspension components, including the Excel-G strut 339364, are manufactured to meet or exceed OEM standards. The internal rebound spring design contributes to consistent damping performance and durability. While specific warranty details may vary, KYB typically offers a limited warranty covering defects in materials and workmanship. Refer to KYB’s official documentation for exact warranty terms applicable to this suspension strut.
