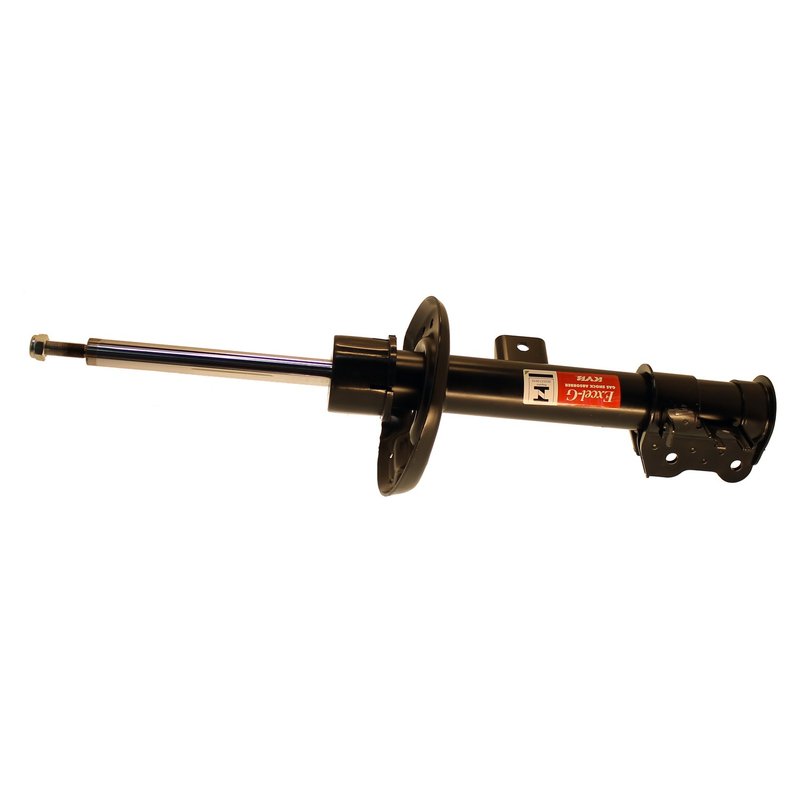

KYB 339854 Suspension Strut - Front Right

Overview of KYB Excel-G Suspension Strut for Fiat 500

The KYB Excel-G Suspension Strut 339854 is engineered specifically for the Fiat 500, providing reliable suspension performance. Designed to restore original handling and control, this strut meets precise fitment requirements for optimal vehicle compatibility.

• Compressed length: 14.2 inches
• Extended length: 21.22 inches
• Stroke length: 7.02 inches
• Upper mount type: 12x1.25
• Includes bump stop (B-stop and R-stop)
• No dust cover or internal rebound spring included

Features of the KYB Excel-G Strut 339854

This suspension strut is part of KYB's Excel-G product line, which is designed to restore the original ride quality and handling characteristics of your vehicle. The Excel-G line focuses on matching the original equipment specifications, making it a suitable replacement for worn or damaged struts on the Fiat 500.

Detailed Product Description

The KYB Excel-G Suspension Strut 339854 features a compressed length of 14.2 inches and an extended length of 21.22 inches, with a stroke length of 7.02 inches. It is equipped with a 12x1.25 upper mount type, ensuring proper fitment and secure installation on the Fiat 500. This strut includes both bump stops (B-stop and R-stop) to protect the suspension components during compression and rebound. Note that this model does not include a dust cover or an internal rebound spring, which is consistent with the original equipment design for this vehicle.

Common Applications and Issues Addressed

• Restores vehicle stability and handling on the Fiat 500
• Reduces excessive bouncing and body roll
• Improves ride comfort by replacing worn suspension components
• Eliminates noise caused by damaged or leaking struts
• Prevents premature tire wear due to suspension misalignment

Installation Notes and Tips

When installing the KYB Excel-G Suspension Strut 339854 on a Fiat 500, ensure the upper mount type 12x1.25 matches the vehicle’s specifications. It is recommended to replace struts in pairs to maintain balanced handling. Since this strut does not include a dust cover, inspect the existing dust boot for wear and replace if necessary. Proper torque specifications should be followed during installation to ensure safety and performance.

Quality Assurance and Warranty

KYB’s Excel-G struts are manufactured to meet or exceed original equipment standards, providing consistent performance and durability. While specific warranty details for part number 339854 should be confirmed at the point of purchase, KYB typically offers a limited warranty covering defects in materials and workmanship.
