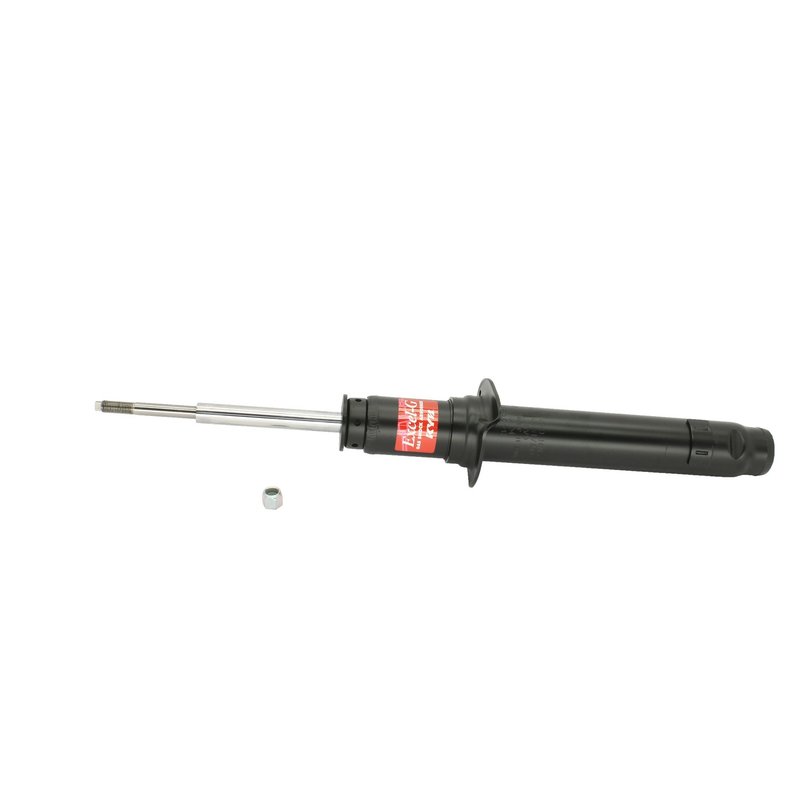

KYB 340022 Suspension Strut - Front
Overview of KYB Excel-G Suspension Strut 340022
The KYB Excel-G Suspension Strut 340022 is designed specifically for Hyundai Sonata models, providing reliable suspension performance. This strut offers precise dimensions and features tailored to restore your vehicle's original handling characteristics.
- Compressed Length: 11.93 inches
- Extended Length: 15.75 inches
- Stroke Length: 3.82 inches
- Upper Mount Type: S1
- Right Stop (R-stop) included
- No dust cover or internal rebound spring
About the KYB Excel-G Product Line
The Excel-G line from KYB is engineered to meet or exceed original equipment specifications, focusing on restoring the original ride and handling of your Hyundai Sonata. This product line is designed to provide a smooth and controlled driving experience by using high-quality components and precise engineering, making it a suitable replacement for worn or damaged suspension struts.
Detailed Product Description
The KYB Excel-G Suspension Strut 340022 features a compressed length of 11.93 inches and an extended length of 15.75 inches, with a stroke length of 3.82 inches. It includes an S1 type upper mount and a right stop (R-stop) to ensure proper fitment and function. This strut does not include a dust cover or internal rebound spring, which aligns with the original equipment design for the Hyundai Sonata. These specifications ensure that the strut maintains the correct suspension geometry and damping characteristics for consistent vehicle control.
Common Suspension Issues Addressed
- Reduced ride comfort due to worn struts
- Excessive body roll or instability during cornering
- Uneven tire wear caused by suspension misalignment
- Increased noise or vibration from the front suspension
- Loss of vehicle control on rough or uneven roads
Installation Notes and Tips
- Ensure compatibility with Hyundai Sonata models before installation
- Use proper tools to safely compress and install the strut assembly
- Inspect upper mount and related suspension components for wear
- Check alignment after installation to maintain proper handling
- Follow manufacturer torque specifications for mounting hardware
Quality Assurance and Warranty
KYB manufactures the Excel-G Suspension Strut 340022 to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details are not provided here, KYB typically offers coverage against defects in materials and workmanship. Refer to KYB’s official warranty policy for complete information.
| Brand | Four Seasons |
|---|---|
| Part Number | 33215 |
| Position | Excel-G |
| Body Diameter | 3.000 |
| Body Length | 8.000 |
| Bracket? | w/o Bracket |
| Connector B Type | Female Insert O-Ring |
| Connector Type | Female Insert O-Ring |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 76.200 |
| Fuse Plug | No |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Female |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| Inlet Filter Fitting Type | Female |
| Inlet Fitting Diameter | 0.375 |
| Inlet Fitting Type | Female O-Ring |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 9.525 |
| Length MM | 203.200 |
| Material | Steel |
| Meets / Exceeds OEM? | Yes |
| Moisture Indicator Window | No |
| Mounting Bracket Included | Not Included |
| New or Reman | New |
| O-Ring A Number/Desc | [24606] / Green O-Ring |
| Outlet Fitting Type | Female O-Ring |
| Outlet Fraction | 3/8 |
| Outlet IN | 0.375 |
| Outlet MM | 9.525 |
| Overall Depth IN | 8.500 |
| Overall Depth MM | 216.000 |
| P. R. V.? | No |
| Service Port? | w/o Service Port |
| Sight Glass? | Yes |
| Stud? | No |
| Style | Steel Filter Drier |
| Switch Port? | w/o Switch Port |
| Type | Washer Not Included |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Hyundai | Sonata | 2.4L | L4 | Front | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2007 | Hyundai | Sonata | 2.4L | L4 | Front | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
| 2006 | Hyundai | Sonata | 2.4L | L4 | Front | Replace suspension strut and coil spring assembly according to manufacturer's instructions.; Excel-G |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
