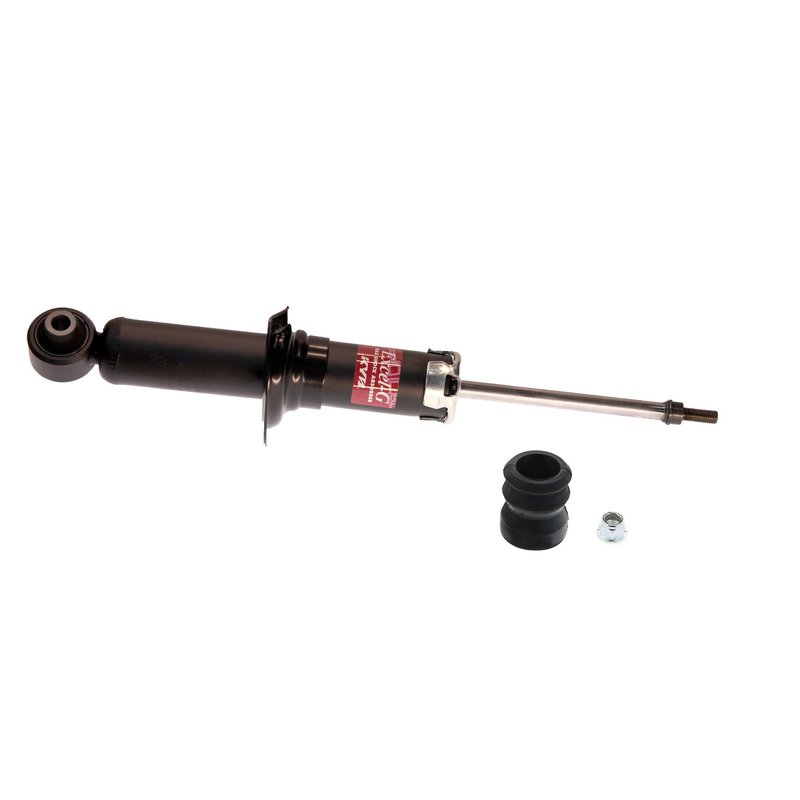

KYB 340096 Suspension Strut - Rear

Overview of KYB Excel-G Suspension Strut 340096 for Subaru Impreza

The KYB Excel-G Suspension Strut 340096 is designed specifically for Subaru Impreza models, providing reliable suspension performance. This strut offers precise fitment and engineered dimensions to restore original handling and ride quality.

• Compressed Length: 11.14 inches
• Extended Length: 16.69 inches
• Stroke Length: 5.55 inches
• Lower Mount Type: E2 (12.4x55)
• Upper Mount Type: 10x1.25
• R-stop included, no internal rebound spring or dust cover

Detailed Product Features and Specifications

The KYB Excel-G 340096 suspension strut is engineered with a compressed length of 11.14 inches and an extended length of 16.69 inches, providing a stroke length of 5.55 inches. The lower mount features an E2 type with dimensions 12.4x55, while the upper mount is sized at 10x1.25, ensuring a precise fit for Subaru Impreza vehicles. This strut includes an R-stop for controlled suspension travel but does not include a dust cover or internal rebound spring, which aligns with the original equipment design for this application.

About the KYB Excel-G Product Line

The Excel-G line from KYB is designed to restore the original handling and control of vehicles by matching the original equipment specifications. This product line focuses on delivering consistent damping performance and durability, making it suitable for drivers looking to maintain factory ride quality. The 340096 strut is part of this line, ensuring compatibility and performance tailored to Subaru Impreza suspension requirements.

Common Applications and Problem Solving

• Restores proper suspension travel and ride height on Subaru Impreza
• Addresses uneven tire wear caused by worn struts
• Improves vehicle stability and handling during cornering
• Reduces excessive bouncing and vibration on rough roads
• Eliminates noise and harshness from damaged or leaking struts

Installation Notes and Tips

When installing the KYB Excel-G 340096 suspension strut, ensure the vehicle is securely lifted and supported. Verify the lower mount type E2 (12.4x55) and upper mount 10x1.25 match the vehicle’s specifications. Since this strut does not include a dust cover or internal rebound spring, reuse existing components if applicable or replace as needed. Proper torque specifications should be followed to maintain safety and performance.

Quality Assurance and Warranty

KYB manufactures the Excel-G 340096 suspension strut to meet or exceed original equipment standards. This part undergoes rigorous quality control to ensure durability and consistent performance. Warranty coverage details should be confirmed with the distributor or retailer, as KYB typically offers limited warranties on their suspension components.
