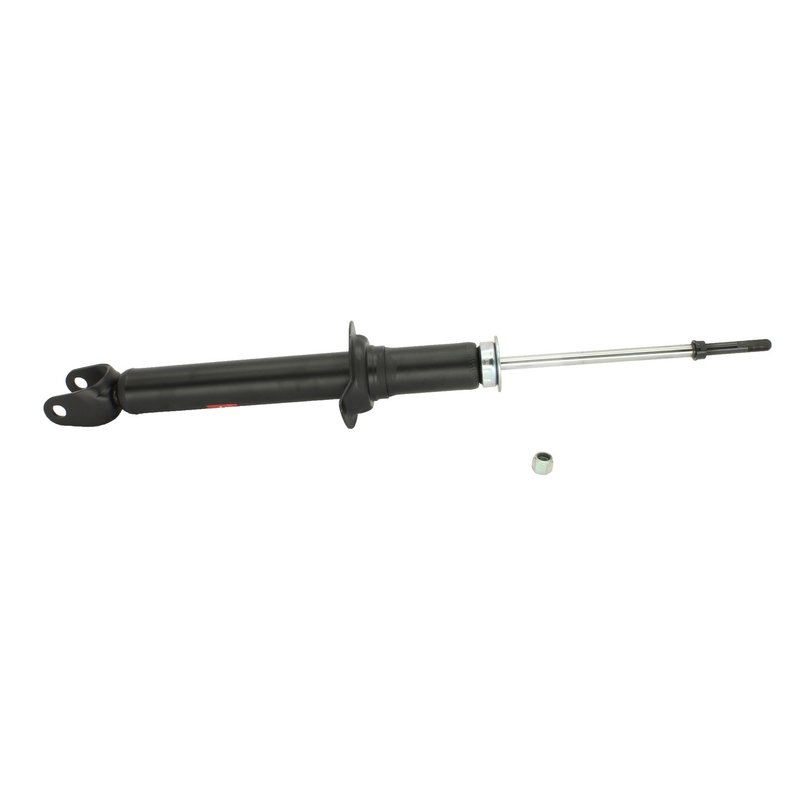

KYB 341197 Suspension Strut - Rear

Overview of KYB Excel-G Suspension Strut for Lexus GS300

The KYB Excel-G Suspension Strut, part number 341197, is designed specifically for the Lexus GS300. This suspension strut offers precise fitment and reliable performance, engineered to restore the original handling and control of your vehicle.

• Compressed length: 17.91 inches
• Extended length: 24.41 inches
• Stroke length: 6.5 inches
• Lower mount type: Special
• Upper mount type: S1 (12mm)
• Includes R-stop but no B-stop
• No dust cover or internal rebound spring included

Details on KYB Excel-G Suspension Strut Attributes

This KYB Excel-G suspension strut features a compressed length of 17.91 inches and an extended length of 24.41 inches, providing a stroke length of 6.5 inches. The lower mount is a special type designed to fit the Lexus GS300 precisely, while the upper mount uses an S1 (12mm) configuration. The strut includes an R-stop to limit rebound travel but does not include a B-stop or dust cover. It also lacks an internal rebound spring, which is typical for this model. These specifications ensure compatibility and proper suspension function for the Lexus GS300.

About the KYB Excel-G Product Line

The Excel-G line from KYB is engineered to restore original equipment (OE) performance for vehicles like the Lexus GS300. This product line focuses on delivering consistent damping and ride quality by replicating the factory strut design. The Excel-G struts are designed to provide a balance between comfort and control, making them suitable for drivers seeking to maintain the vehicle’s original handling characteristics.

Common Applications and Problem Solving

• Restores factory ride quality and handling on Lexus GS300
• Replaces worn or leaking suspension struts
• Improves vehicle stability and control during cornering
• Reduces excessive body roll and suspension noise
• Addresses uneven tire wear caused by faulty struts

Installation Notes and Tips

When installing the KYB Excel-G suspension strut (part number 341197) on a Lexus GS300, ensure the vehicle is securely lifted and supported. Verify the special lower mount and S1 (12mm) upper mount align correctly with the vehicle’s mounting points. Since this strut does not include a dust cover or internal rebound spring, inspect existing components for wear and replace if necessary. Proper torque specifications should be followed to maintain safety and performance.

Quality Assurance and Warranty

KYB manufactures the Excel-G suspension strut to meet or exceed OEM standards for fit and function. While specific warranty details are not provided here, KYB typically offers a limited warranty covering defects in materials and workmanship. Using part number 341197 ensures compatibility and quality for the Lexus GS300 suspension system.
