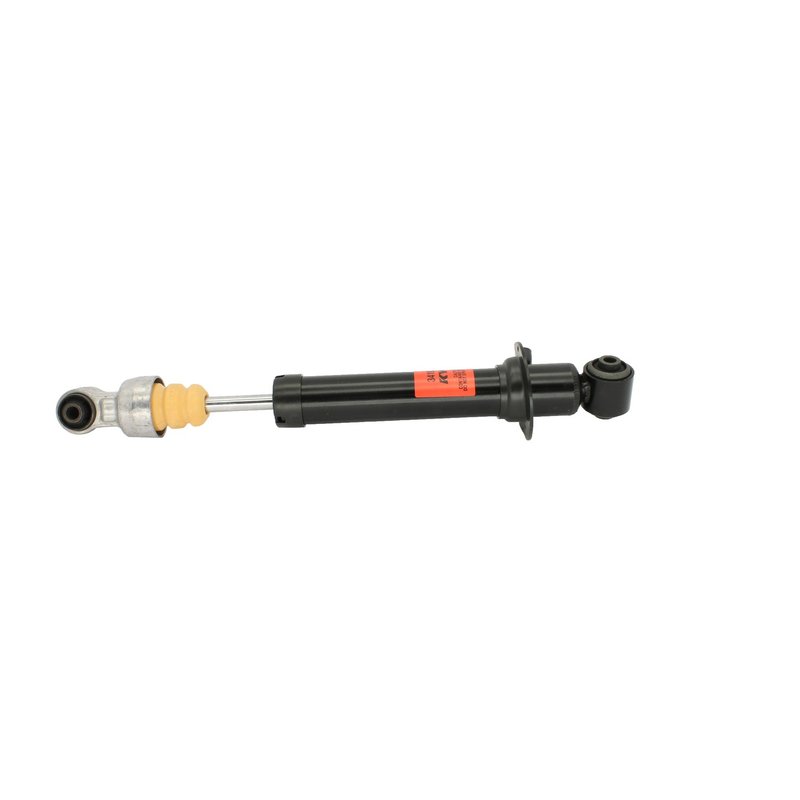

KYB 341909 Suspension Strut - Rear

Overview of KYB Excel-G Suspension Strut 341909

The KYB Excel-G Suspension Strut 341909 is engineered for Audi A4 Quattro models, providing reliable suspension performance. Designed to restore original handling and control, this strut meets precise fitment specifications for optimal vehicle compatibility.

• Compressed length: 17 inches
• Extended length: 19.72 inches
• Stroke length: 2.72 inches
• Lower mount type: E2 (12.2x60)
• Upper mount type: E2 (12.2x57.8)
• Bump stop (B-stop) included
• Rebound stop (R-stop) included
• No dust cover or internal rebound spring

Detailed Product Features and Specifications

The KYB Excel-G 341909 suspension strut is designed with precise dimensions to fit the Audi A4 Quattro. Its compressed length of 17 inches and extended length of 19.72 inches ensure proper suspension travel, while the 2.72-inch stroke length supports smooth damping. The strut features E2-type mounts both at the upper (12.2x57.8) and lower (12.2x60) ends, ensuring secure attachment to the vehicle’s suspension system. This model includes both bump stop (B-stop) and rebound stop (R-stop) components to protect the strut from over-compression and over-extension, enhancing durability and ride quality. Note that this strut does not include a dust cover or an internal rebound spring.

About the KYB Excel-G Product Line

The Excel-G line from KYB is designed to restore original equipment (OE) performance for vehicles like the Audi A4 Quattro. These struts are engineered to provide consistent damping and handling characteristics similar to factory-installed components. The Excel-G series focuses on delivering reliable suspension function without altering the vehicle’s ride height or dynamics, making it a suitable replacement for worn or damaged struts.

Common Applications and Problem Solving

• Restores proper suspension travel and damping on Audi A4 Quattro
• Eliminates excessive bouncing or poor handling caused by worn struts
• Prevents suspension bottoming out with integrated bump and rebound stops
• Addresses uneven tire wear related to faulty struts
• Improves vehicle stability and control during cornering and braking

Installation Notes and Tips

When installing the KYB Excel-G 341909 suspension strut on an Audi A4 Quattro, ensure the correct orientation of the E2 upper and lower mounts for proper fitment. Since this strut does not include a dust cover, inspect the vehicle’s existing dust protection and replace if necessary. It is recommended to replace struts in pairs to maintain balanced suspension performance. Professional installation with appropriate tools is advised to ensure safety and correct torque specifications.

Quality Assurance and Warranty

KYB manufactures the Excel-G 341909 suspension strut to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details are not provided here, KYB typically offers limited warranties on their suspension components. Verify warranty coverage with the product documentation or authorized KYB sources before installation.
