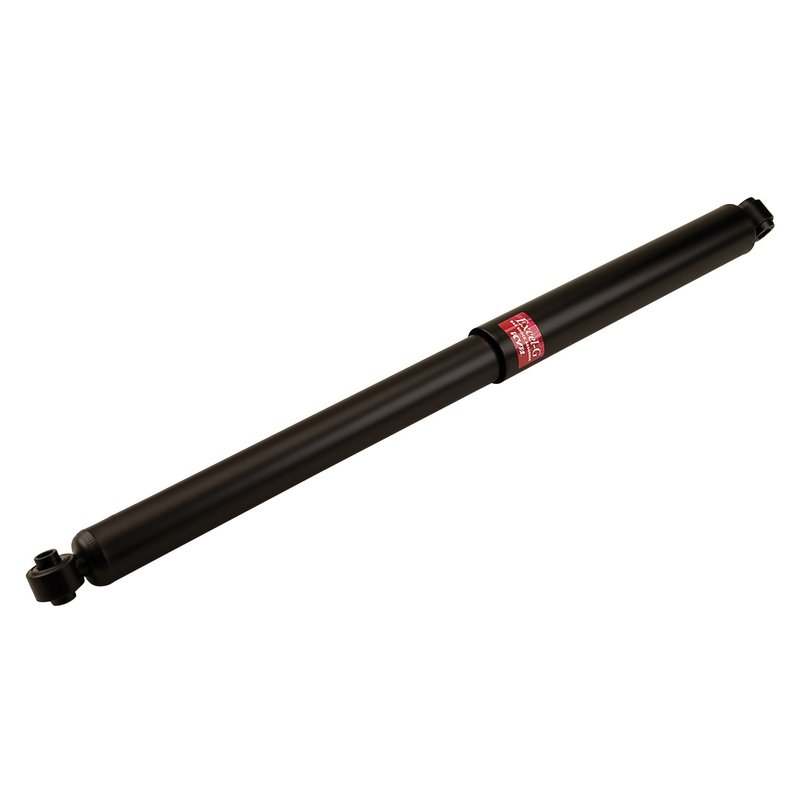

KYB 344077 Shock Absorber - Front or Rear

Overview of KYB Excel-G Suspension Shock Absorber 344077

The KYB Excel-G Suspension Shock Absorber 344077 is designed to restore the original ride quality and handling of your Ford vehicle. Engineered for durability and consistent performance, this shock absorber is compatible with various Ford models including Bronco, F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, and Ranger.

• Compressed Length: 13.98 inches
• Extended Length: 23.7 inches
• Stroke Length: 9.72 inches
• Lower Mount Type: E2 (12x38)
• Upper Mount Type: E1
• Includes Dust Cover for protection
• No internal rebound spring, B-stop, or R-stop

Details on KYB Excel-G Shock Absorber Features

The KYB Excel-G line is designed to provide a reliable replacement for original equipment shocks and struts. This particular shock absorber, part number 344077, features a compressed length of 13.98 inches and an extended length of 23.7 inches, offering a stroke length of 9.72 inches to accommodate suspension travel. The lower mount uses an E2 (12x38) configuration, while the upper mount is an E1 type, ensuring proper fitment and secure installation on compatible Ford trucks and SUVs. A dust cover is included to protect the shock from dirt and debris, extending its service life. This model does not include an internal rebound spring or bump stops (B-stop and R-stop), which aligns with the original equipment design for the specified vehicles.

Compatible Ford Models and Applications

This KYB Excel-G shock absorber 344077 is compatible with a range of Ford vehicles, including:

• Ford Bronco
• Ford F-150
• Ford F-250, F-250 HD, and F-250 Super Duty
• Ford F-350 and F-350 Super Duty
• Ford Ranger

It is intended for use in restoring suspension performance and ride comfort on these models, matching original equipment specifications.

Common Suspension Issues Addressed

• Reduced ride comfort due to worn shocks
• Excessive body roll or sway during cornering
• Uneven tire wear caused by poor shock absorption
• Increased stopping distance from unstable suspension
• Noise or vibration from damaged or leaking shocks

Installation Notes and Tips

When installing the KYB Excel-G shock absorber 344077, ensure the vehicle is securely lifted and supported. Verify the upper and lower mount types (E1 upper, E2 12x38 lower) match the vehicle’s mounting points. The included dust cover should be properly positioned to protect the shock shaft. Since this shock does not include internal rebound springs or bump stops, confirm that the vehicle’s original components are intact or replaced as needed. Torque all mounting hardware to manufacturer specifications for safety and performance.

Quality Assurance and Warranty

KYB Excel-G shocks are manufactured to meet or exceed original equipment standards, providing consistent damping performance and durability. The Excel-G product line is recognized for restoring factory ride quality. While specific warranty details for part number 344077 should be confirmed with the supplier, KYB typically offers a limited warranty covering defects in materials and workmanship.
