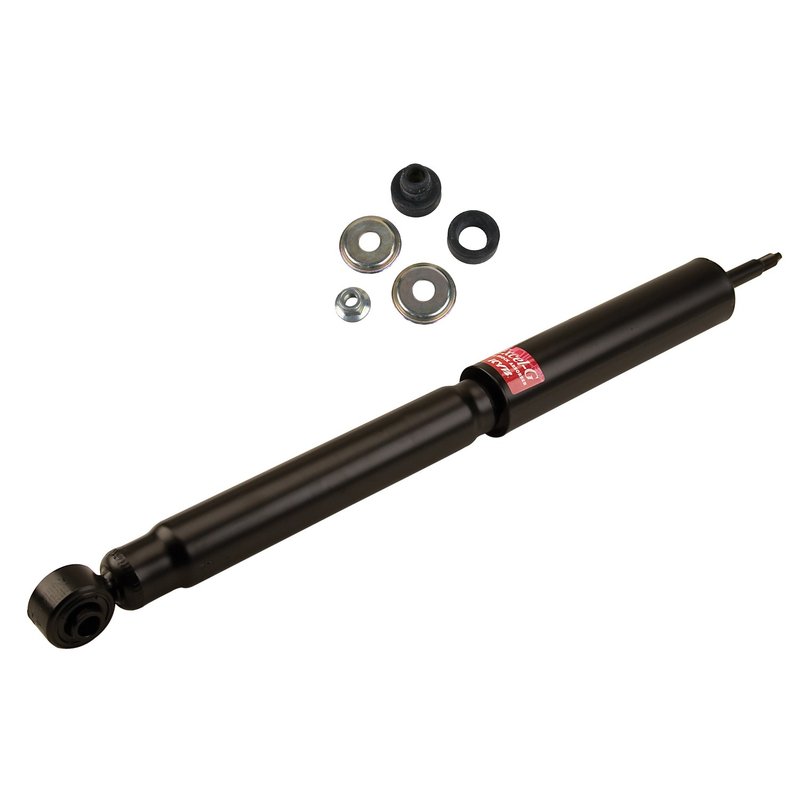

KYB 344376 Shock Absorber - Front

Overview of KYB Excel-G Suspension Shock Absorber 344376

The KYB Excel-G Suspension Shock Absorber 344376 is engineered for Dodge Ram 1500 and Ram 2500 models, providing reliable suspension performance. Designed to restore original handling and control, this shock absorber meets precise fitment specifications for these trucks.

• Compressed length: 13.39 inches
• Extended length: 22.05 inches
• Stroke length: 8.66 inches
• Lower mount type: E2 (14.6x42)
• Upper mount type: S1 (12mm)
• Includes dust cover for protection
• R-stop included for controlled rebound

Detailed Product Features and Specifications

This KYB Excel-G shock absorber, part number 344376, is designed with a compressed length of 13.39 inches and an extended length of 22.05 inches, providing a stroke length of 8.66 inches. The lower mount features an E2 style with dimensions 14.6x42 mm, while the upper mount uses an S1 type with a 12mm diameter, ensuring a precise fit for Dodge Ram 1500 and Ram 2500 models. The inclusion of a dust cover helps protect the shock from dirt and debris, extending its service life. Additionally, the shock absorber incorporates an R-stop to control rebound, enhancing ride stability. This model does not include an internal rebound spring or B-stop, which aligns with the design requirements for these specific vehicle applications.

About the KYB Excel-G Product Line

The Excel-G line from KYB is designed to restore original equipment performance for vehicles like the Dodge Ram 1500 and Ram 2500. These shocks are engineered to provide a smooth ride and improved handling by matching the original suspension specifications. The Excel-G series is a reliable replacement option that balances comfort and control without altering the vehicle’s factory suspension characteristics.

Common Applications and Problem Solving

• Restores factory ride quality and handling on Dodge Ram 1500 and Ram 2500
• Reduces excessive bouncing and body roll during driving
• Improves vehicle stability when carrying heavy loads or towing
• Eliminates noise and vibration caused by worn or damaged shocks
• Protects suspension components by maintaining proper damping control

Installation Notes and Tips

When installing the KYB Excel-G shock absorber 344376, ensure the vehicle is securely lifted and supported. Verify the lower mount type E2 (14.6x42) and upper mount type S1 (12mm) match the vehicle’s mounting points. It is recommended to replace shocks in pairs to maintain balanced suspension performance. Inspect mounting hardware and replace if worn or damaged. The included dust cover should be properly positioned to protect the shock shaft from contaminants.

Quality Assurance and Warranty

KYB manufactures the Excel-G shock absorbers to meet or exceed OEM standards, ensuring durability and consistent performance. This part number 344376 undergoes rigorous quality control to provide reliable suspension damping for Dodge Ram 1500 and Ram 2500 trucks. Warranty coverage details should be confirmed with the product documentation or manufacturer.
