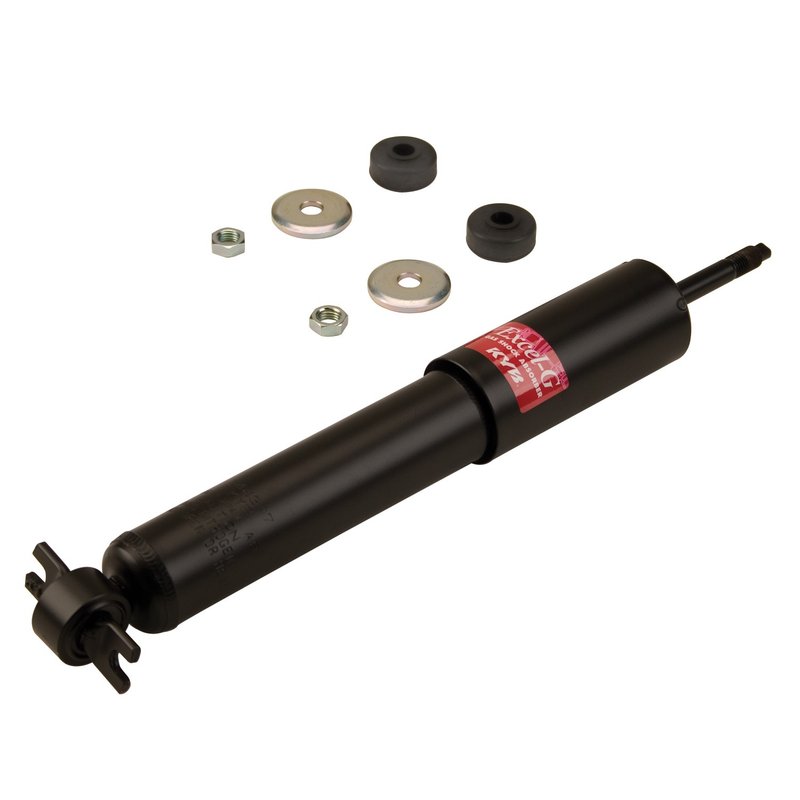

KYB 344397 Shock Absorber - Front

Overview of KYB Excel-G Suspension Shock Absorber 344397

The KYB Excel-G Suspension Shock Absorber 344397 is designed to restore the original ride quality and handling of your vehicle. Engineered for Ford and Mazda trucks including B2300, B2500, B3000, B4000, and Ranger models, this shock absorber offers reliable performance and durability.

• Compressed length: 9.06 inches
• Extended length: 13.58 inches
• Stroke length: 4.53 inches
• Lower mount type: E3 (61.6x87x18)
• Upper mount type: S1 (12mm)
• Includes dust cover for protection
• R-stop included for controlled rebound

Features and Specifications of Part Number 344397

This KYB Excel-G shock absorber features a compressed length of 9.06 inches and an extended length of 13.58 inches, providing a stroke length of 4.53 inches. The lower mount uses an E3 type with dimensions 61.6x87x18, while the upper mount is an S1 type with a 12mm diameter. A dust cover is included to protect internal components from dirt and debris, enhancing longevity. The shock absorber is equipped with an R-stop to control rebound but does not include an internal rebound spring or B-stop.

About the KYB Excel-G Product Line

The Excel-G line by KYB is engineered to restore original equipment ride quality and handling characteristics. Designed as a direct replacement for factory shocks, Excel-G shocks use a twin-tube design and high-quality valving to provide consistent damping performance. This makes the Excel-G 344397 suitable for Ford and Mazda trucks requiring reliable suspension components that maintain factory specifications.

Applications and Problem Solving

• Compatible with Ford B2300, B2500, B3000, B4000, and Ranger models
• Addresses issues such as excessive bouncing and poor ride comfort
• Reduces vehicle sway and improves handling stability
• Helps prevent premature tire wear caused by suspension problems
• Restores proper suspension travel and control

Installation Notes and Tips

When installing the KYB Excel-G shock absorber 344397, ensure the correct orientation of the upper and lower mounts according to the vehicle specifications. The included dust cover should be inspected for damage and properly seated to protect the shock shaft. It is recommended to replace shocks in pairs to maintain balanced suspension performance. Verify that the R-stop is functioning correctly to control rebound movement.

Quality Assurance and Warranty

KYB Excel-G shocks are manufactured to meet or exceed OEM standards for durability and performance. The 344397 shock absorber undergoes rigorous quality control testing to ensure consistent damping characteristics. KYB typically offers a limited warranty on Excel-G shocks; please refer to KYB’s official warranty documentation for specific terms and conditions.
