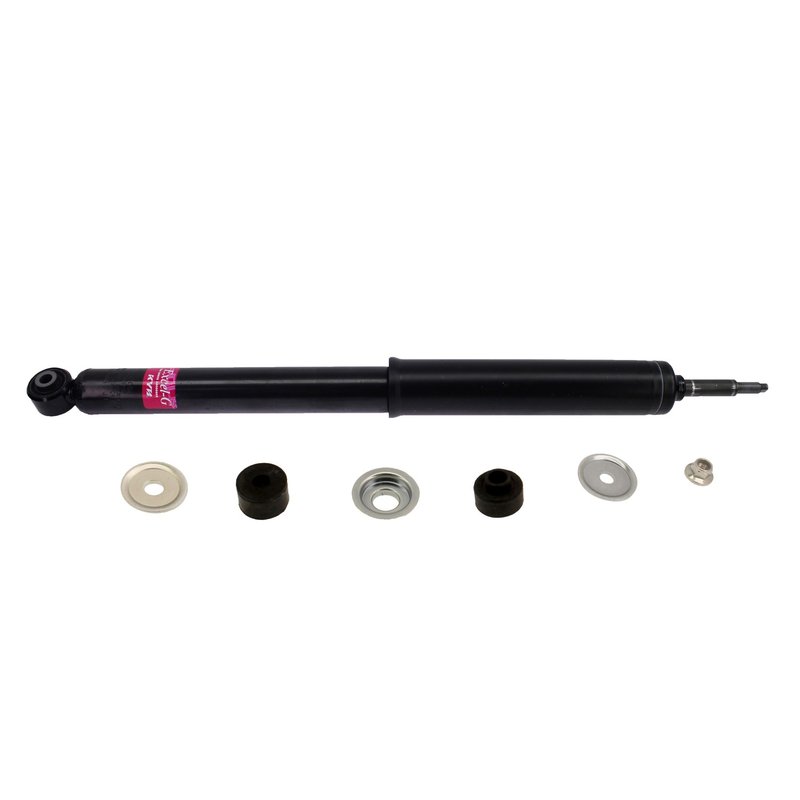

KYB 349054 Shock Absorber - Rear

Overview of KYB Excel-G Suspension Shock Absorber 349054

The KYB Excel-G Suspension Shock Absorber 349054 is designed specifically for Toyota Tundra models, providing reliable suspension performance. Engineered to restore original handling and control, this shock absorber meets precise fitment requirements for optimal vehicle compatibility.

• Compressed Length: 15.19 inches
• Extended Length: 24.41 inches
• Stroke Length: 9.22 inches
• Lower Mount Type: E2 (12.4x40)
• Upper Mount Type: S1 (12mm)
• Includes Dust Cover for protection
• R-stop included for rebound control
• No internal rebound spring or B-stop

About the KYB Excel-G Product Line

The Excel-G line from KYB is engineered to provide a balance between comfort and control by restoring the original equipment ride quality. This product line is designed to replace worn shocks and struts with components that meet or exceed OEM specifications. The Excel-G shock absorbers, including part number 349054, are built to deliver consistent performance and durability for Toyota Tundra vehicles.

Detailed Product Description

The KYB Excel-G Suspension Shock Absorber 349054 features a compressed length of 15.19 inches and an extended length of 24.41 inches, with a stroke length of 9.22 inches, ensuring precise fitment for the Toyota Tundra. The lower mount uses an E2 type (12.4x40), while the upper mount is an S1 type (12mm), matching factory mounting points for straightforward installation. This shock absorber includes a dust cover to protect internal components from debris and environmental damage. The inclusion of an R-stop helps control rebound, improving vehicle stability during driving. Notably, this model does not include an internal rebound spring or a B-stop, which aligns with the design requirements for the Tundra's suspension system.

Common Applications and Issues Addressed

• Restores original ride comfort and handling on Toyota Tundra
• Reduces excessive bouncing and body roll
• Improves vehicle stability during braking and cornering
• Addresses worn or leaking shock absorbers
• Enhances suspension response for uneven road surfaces

Installation Notes and Tips

When installing the KYB Excel-G shock absorber 349054 on a Toyota Tundra, ensure the vehicle is securely lifted and supported. Verify that the upper and lower mounts correspond to the E2 and S1 types as specified. It is recommended to replace shocks in pairs to maintain balanced suspension performance. Inspect mounting hardware and replace if worn or damaged. The included dust cover should be properly seated to protect the shock absorber shaft from contaminants.

Quality Assurance and Warranty

KYB manufactures the Excel-G shock absorbers to meet or exceed OEM standards, ensuring reliable performance and durability. Part number 349054 undergoes rigorous quality control testing to maintain consistency. While specific warranty details may vary, KYB typically offers coverage against defects in materials and workmanship. Consult KYB or authorized distributors for exact warranty terms related to this suspension shock absorber.
