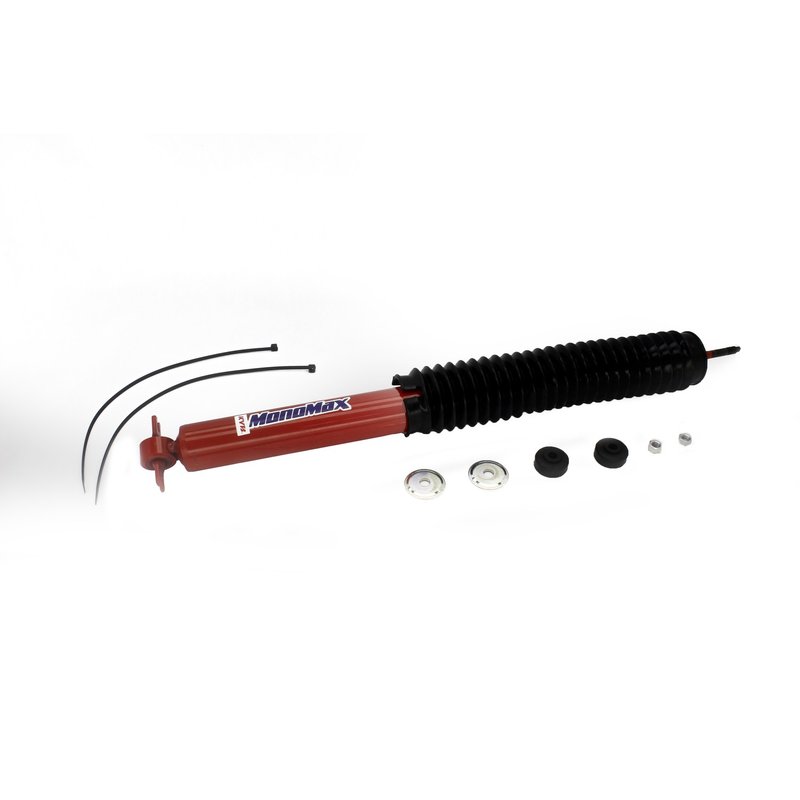

KYB 565096 Shock Absorber - Front

Overview of KYB MonoMax Suspension Shock Absorber 565096

The KYB MonoMax Suspension Shock Absorber 565096 is engineered specifically for Jeep Wrangler models, providing reliable damping performance. Designed to restore vehicle stability and control, this shock absorber is built to meet the demands of both on-road and off-road driving conditions.

• Compressed length: 15.86 inches
• Extended length: 25.31 inches
• Stroke length: 9.45 inches
• Lower mount type: E3 (51.6x82x0)
• Upper mount type: S1
• Includes dust cover for protection
• Rebound stop (R-stop) included
• No internal rebound spring or B-stop

Detailed Product Features and Specifications

The KYB MonoMax shock absorber 565096 features a compressed length of 15.86 inches and an extended length of 25.31 inches, providing a stroke length of 9.45 inches. This range allows for effective suspension travel, essential for maintaining ride comfort and vehicle control. The lower mount uses an E3 type with dimensions 51.6x82x0, while the upper mount is an S1 type, ensuring proper fitment and secure installation on Jeep Wrangler models. A dust cover is included to protect the internal components from dirt and debris, extending the service life of the shock absorber. The design incorporates an R-stop to limit rebound travel, but does not include an internal rebound spring or B-stop.

About the KYB MonoMax Product Line

The MonoMax line from KYB is designed to provide enhanced durability and consistent damping performance for trucks and SUVs like the Jeep Wrangler. This product line focuses on heavy-duty applications where increased load capacity and improved control are necessary. The MonoMax shock absorbers are engineered to handle rough terrain and demanding driving conditions, making them suitable for Jeep Wrangler owners seeking reliable suspension components.

Applications and Problem Solving

• Restores original suspension performance on Jeep Wrangler vehicles
• Reduces excessive bouncing and body roll during off-road driving
• Improves vehicle stability and handling on uneven terrain
• Protects suspension components by limiting rebound travel
• Prevents premature wear caused by dirt and debris with included dust cover

Installation Notes and Tips

When installing the KYB MonoMax shock absorber 565096 on a Jeep Wrangler, ensure the correct orientation of the upper S1 and lower E3 mounts. Verify that the dust cover is properly seated to protect the shock shaft. It is recommended to replace shocks in pairs to maintain balanced suspension performance. Use appropriate tools to avoid damage to mounting points and torque fasteners to manufacturer specifications.

Quality Assurance and Warranty

KYB manufactures the MonoMax shock absorbers to meet strict quality standards, ensuring durability and consistent performance. This part number 565096 is backed by KYB's warranty coverage, which protects against defects in materials and workmanship. For specific warranty details, refer to KYB's official documentation or contact authorized service providers.
