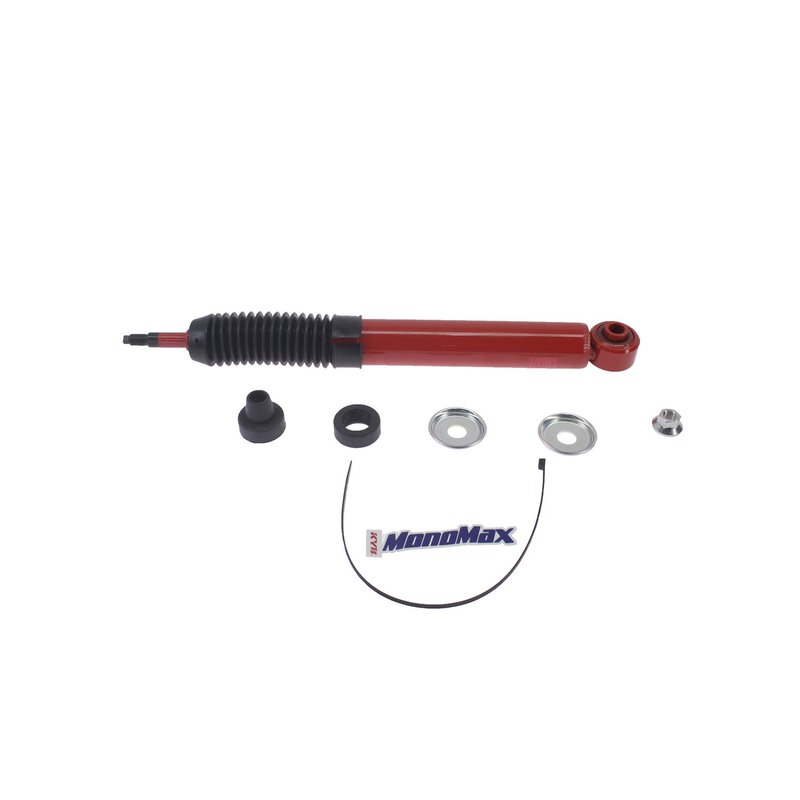

KYB 565129 Shock Absorber - Front

Overview of KYB MonoMax Suspension Shock Absorber 565129

The KYB MonoMax Suspension Shock Absorber 565129 is engineered for Dodge Ram 1500 trucks requiring reliable and durable suspension components. Designed to restore original handling and control, this shock absorber supports vehicle stability under heavy loads and rough road conditions.

• Compressed length: 10.63 inches
• Extended length: 15.74 inches
• Stroke length: 5.11 inches
• Lower mount type: E2 (14.6x42)
• Upper mount type: S1 (12mm)
• Includes dust cover for protection
• R-stop feature included for enhanced travel control
• No internal rebound spring or B-stop

Detailed Product Features and Specifications

This KYB MonoMax shock absorber, part number 565129, is specifically designed for the Dodge Ram 1500, providing precise fitment and performance. The shock’s compressed length of 10.63 inches and extended length of 15.74 inches allow for a stroke length of 5.11 inches, ensuring effective suspension travel. The lower mount uses an E2 style (14.6x42), while the upper mount is an S1 type with a 12mm diameter, matching factory specifications for secure installation. A dust cover is included to protect the internal components from dirt and debris, extending the shock’s service life. The R-stop feature helps control the shock’s extension travel, improving ride quality and vehicle stability. This model does not include an internal rebound spring or B-stop, which aligns with its design for heavy-duty use.

About the KYB MonoMax Product Line

The MonoMax line by KYB is engineered to provide enhanced durability and performance for trucks and SUVs that carry heavy loads or tow frequently. This product line focuses on delivering consistent damping force and improved control under demanding conditions. The MonoMax shock absorbers are designed to meet or exceed OE specifications, making them suitable for Dodge Ram 1500 owners seeking a reliable suspension upgrade or replacement.

Common Applications and Problem Solving

• Restores suspension control for Dodge Ram 1500 trucks with worn shocks
• Reduces excessive body roll and sway during cornering or towing
• Improves ride comfort on rough or uneven road surfaces
• Prevents bottoming out under heavy payloads
• Minimizes suspension noise and vibration

Installation Notes and Tips

When installing the KYB MonoMax 565129 shock absorber on a Dodge Ram 1500, ensure the vehicle is securely lifted and supported. Verify the lower mount type E2 (14.6x42) and upper mount S1 (12mm) match the vehicle’s mounting points. It is recommended to replace shocks in pairs to maintain balanced suspension performance. Inspect mounting hardware and bushings for wear and replace if necessary. The included dust cover should be positioned correctly to protect the shock shaft from contaminants.

Quality Assurance and Warranty

KYB manufactures the MonoMax shock absorbers to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 565129 should be confirmed with the supplier or manufacturer, KYB typically offers limited warranties covering defects in materials and workmanship. This shock absorber is built to provide dependable service for Dodge Ram 1500 vehicles under normal operating conditions.
