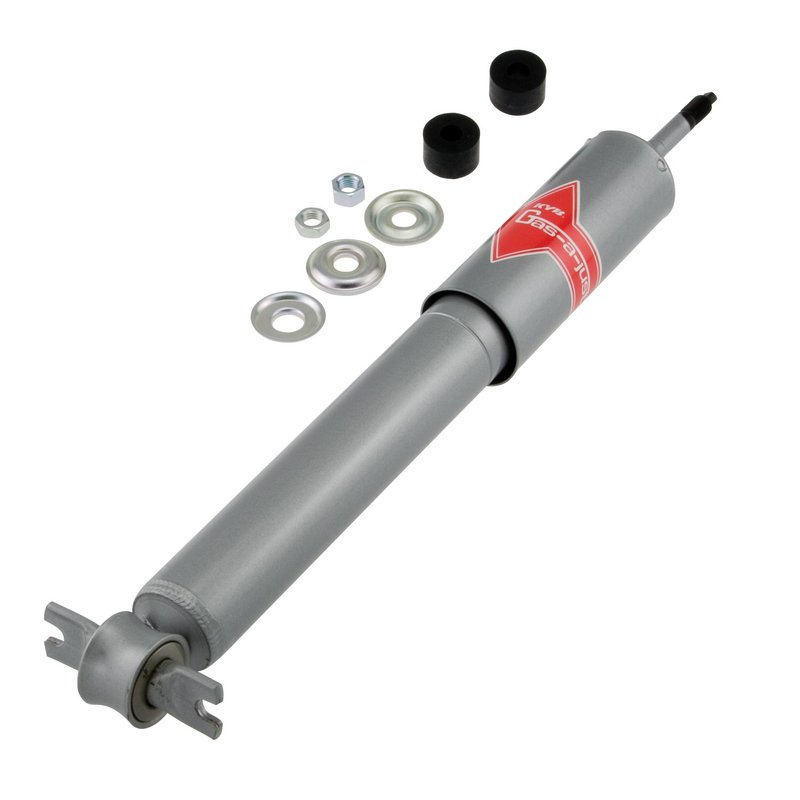

KYB KG4752 Shock Absorber - Front

Overview of KYB Gas-a-just Suspension Shock Absorber KG4752

The KYB Gas-a-just KG4752 suspension shock absorber is engineered for Toyota Pickup, T100, and Tacoma models. Designed to restore original handling and control, this shock absorber offers precise damping performance tailored to these vehicles.

• Compressed length: 9.65 inches
• Extended length: 14.25 inches
• Stroke length: 4.61 inches
• Lower mount type: E3 (61.6x82x10)
• Upper mount type: S1
• Includes dust cover for protection
• R-stop feature included for controlled rebound

Detailed Product Features and Specifications

The KYB Gas-a-just KG4752 shock absorber features a compressed length of 9.65 inches and an extended length of 14.25 inches, providing a stroke length of 4.61 inches. The lower mount uses an E3 type with dimensions 61.6x82x10, while the upper mount is an S1 type, ensuring proper fitment and secure installation on compatible Toyota models. A dust cover is included to protect the internal components from dirt and debris, enhancing durability. The shock absorber incorporates an R-stop to control rebound effectively, although it does not include an internal rebound spring or B-stop.

About the Gas-a-just Product Line

The KYB Gas-a-just line is designed to deliver consistent damping performance by using pressurized nitrogen gas to reduce aeration and foaming inside the shock. This technology helps maintain stable handling and ride comfort for Toyota Pickup, T100, and Tacoma vehicles. The Gas-a-just shocks are engineered to meet or exceed original equipment specifications, providing reliable suspension performance under various driving conditions.

Applications and Problem Solving

• Restores vehicle stability and control on Toyota Pickup, T100, and Tacoma models
• Reduces excessive bouncing and body roll during cornering
• Improves ride comfort over rough or uneven terrain
• Minimizes noise and vibration from worn or damaged shocks
• Prevents premature tire wear caused by suspension issues

Installation Notes and Tips

When installing the KYB Gas-a-just KG4752 shock absorber, ensure the correct orientation of the upper S1 and lower E3 mounts for proper fitment. Verify the compressed and extended lengths to match the vehicle’s suspension travel. The included dust cover should be positioned to protect the shock shaft from contaminants. It is recommended to replace shocks in pairs to maintain balanced suspension performance on Toyota Pickup, T100, and Tacoma models.

Quality Assurance and Warranty

KYB manufactures the Gas-a-just KG4752 shock absorber to meet strict quality standards, ensuring durability and consistent performance. This part is backed by KYB’s warranty coverage, which protects against defects in materials and workmanship under normal use. For specific warranty details, refer to KYB’s official documentation.
