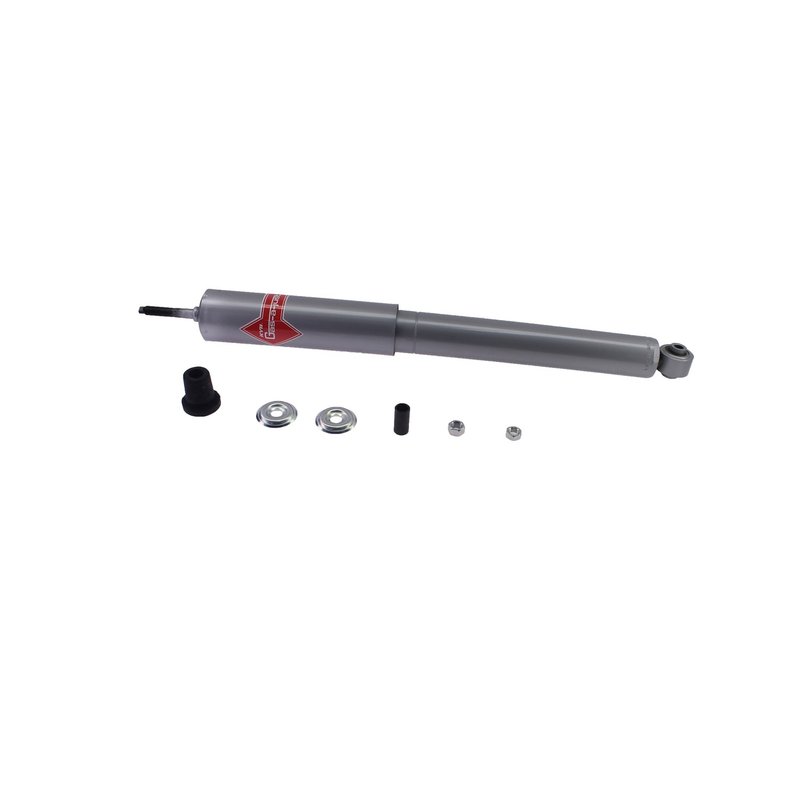

KYB KG5540 Shock Absorber - Rear

Overview of KYB Gas-a-just Suspension Shock Absorber KG5540

The KYB Gas-a-just KG5540 suspension shock absorber is engineered to provide reliable damping performance for a smooth and controlled ride. Designed with precise dimensions and mounting types, this shock absorber suits specific vehicle applications requiring durable and consistent suspension components.

• Compressed length: 12.83 inches
• Extended length: 19.72 inches
• Stroke length: 6.89 inches
• Lower mount type: E2 (10x35)
• Upper mount type: S1
• Includes dust cover for protection
• Equipped with B-stop and R-stop for enhanced travel control

Detailed Features and Specifications

The KYB Gas-a-just KG5540 shock absorber features a compressed length of 12.83 inches and an extended length of 19.72 inches, providing a stroke length of 6.89 inches. This range allows for effective suspension travel and damping control. The lower mount uses an E2 (10x35) style, while the upper mount is an S1 type, ensuring compatibility with specific vehicle suspension setups. A dust cover is included to protect the internal components from dirt and debris, extending the service life of the shock absorber. Additionally, the presence of both B-stop and R-stop components helps limit suspension travel, preventing damage from over-compression or over-extension. This model does not include an internal rebound spring.

About the KYB Gas-a-just Product Line

The Gas-a-just line from KYB is designed to offer gas-charged shock absorbers that provide consistent damping performance and improved vehicle handling. This product line focuses on delivering reliable suspension control by using pressurized gas to reduce aeration and foaming inside the shock, which can degrade performance over time. The KG5540 is part of this line, benefiting from the technology that balances ride comfort with responsive handling characteristics.

Common Applications and Problem Solving

• Reduces excessive body roll and sway during cornering
• Improves ride comfort over uneven road surfaces
• Restores proper suspension travel and damping after wear
• Prevents bottoming out and harsh impacts from bumps
• Maintains vehicle stability under load or varying road conditions

Installation Notes and Tips

• Verify compatibility with your vehicle’s suspension mounts and dimensions before installation
• Ensure the lower mount type E2 (10x35) and upper mount type S1 match your vehicle’s specifications
• Inspect and replace dust covers if damaged to protect the shock absorber
• Use proper tools to avoid damage to mounting points during installation
• Follow manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

KYB manufactures the Gas-a-just KG5540 shock absorber to meet strict quality standards, ensuring durability and consistent performance. The product includes a dust cover and travel stops to enhance longevity. Warranty coverage details should be confirmed with the point of purchase or KYB directly, as terms may vary by region and application.
